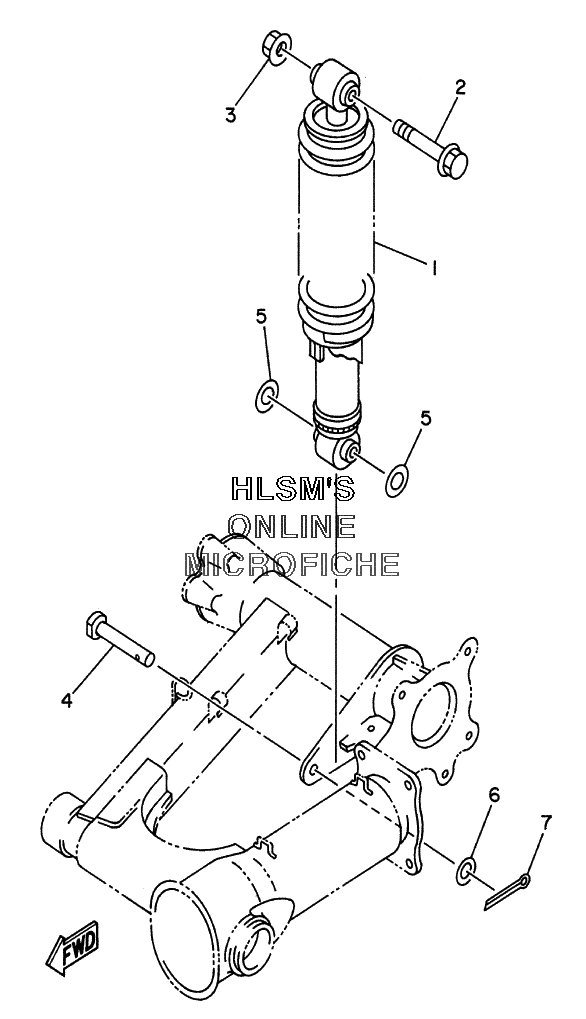

SUSPENSION - REAR SHOCK для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска`
-
№АртикулНазвание
-
14KB-22210-00-35 SHOCK ABSORBER ASSY, REAR (PASTEL DEEP GREEN) (PDG)SHOCK ABSORBER ASSY, REAR (PASTEL DEEP GREEN) (PDG)
-
14KB-22210-00-36 SHOCK ABSORBER ASSY,REAR (DEEP PURPLISH BLUE SOLID E) (DPBSE)SHOCK ABSORBER ASSY,REAR (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
290105-12425-00 BOLT, FLANGEBOLT, FLANGE
-
390185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490240-12092-00 PIN, CLEVISPIN, CLEVIS
-
51W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
690201-127J6-00 WASHER, PLATEWASHER, PLATE
-
791401-30025-00 PIN, COTTERPIN, COTTER
