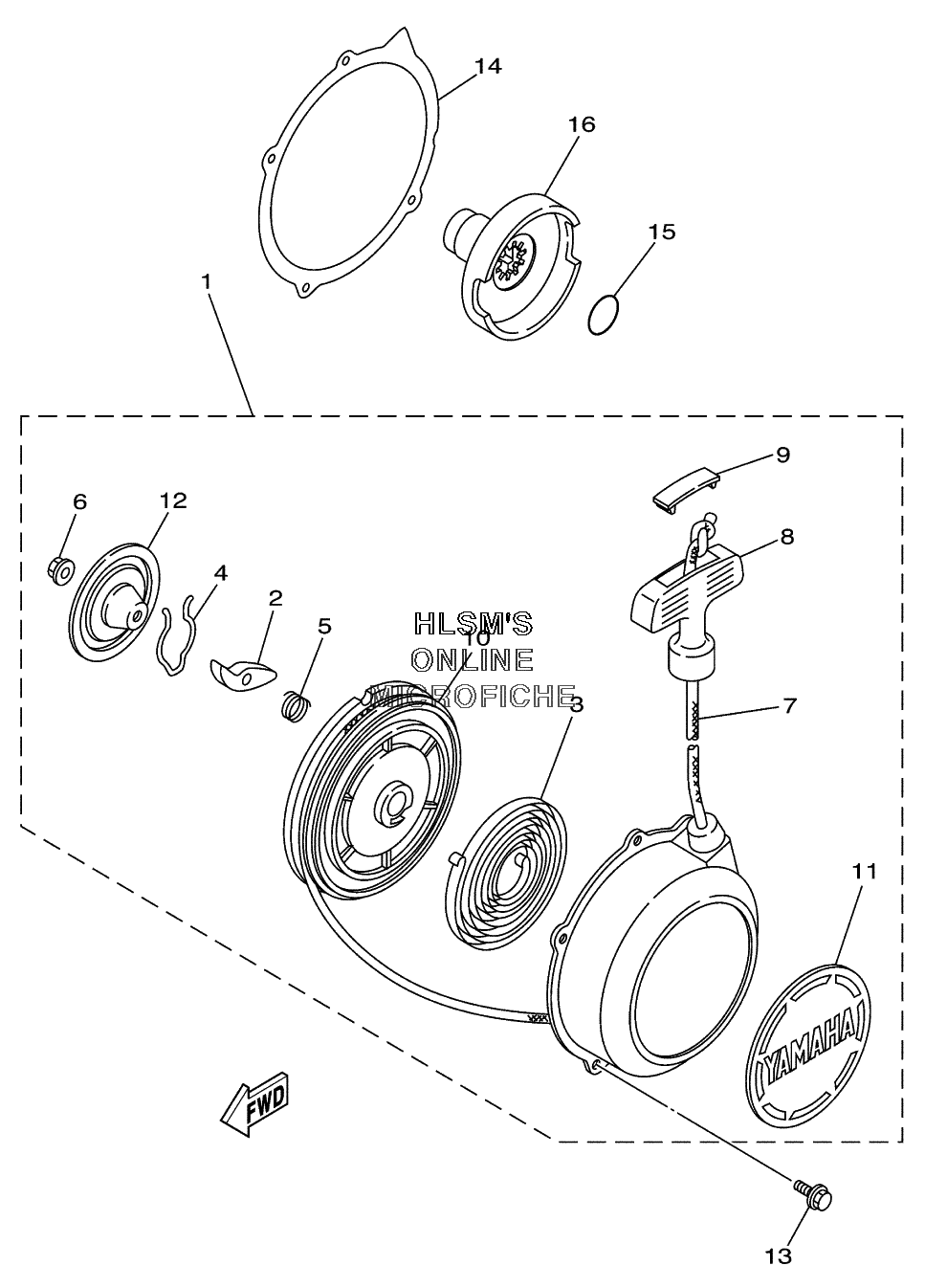

STARTER - RECOIL для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска`
-
№АртикулНазвание
-
11UY-15710-20-00 STARTER ASSYSTARTER ASSY
-
221V-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
321V-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
421V-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
521V-15767-00-00 ...SPRING...SPRING
-
695702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
721V-15751-00-00 ...ROPE, STARTER...ROPE, STARTER
-
83X3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
921V-15779-00-00 ...COVER...COVER
-
1024W-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
115GH-15443-00-00 ...EMBLEM...EMBLEM
-
121UY-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
143GD-15699-00-00 GASKETGASKET
-
1593210-16290-00 O-RINGO-RING
-
161UY-15723-00-00 PULLEY, STARTERPULLEY, STARTER
