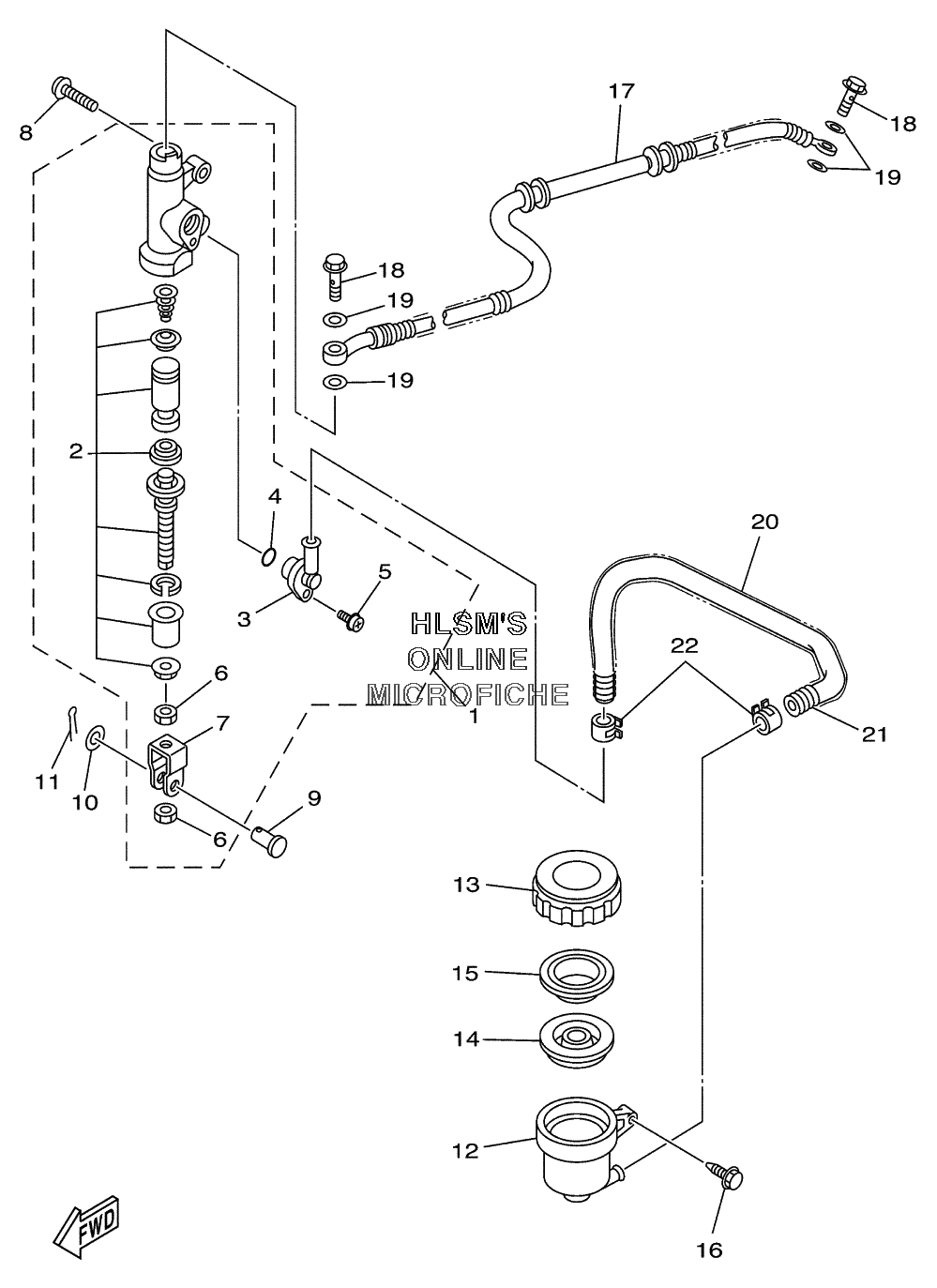

BRAKE - REAR MASTER CYLINDER для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска`
-
№АртикулНазвание
-
14KB-2583V-00-00 RRMASTER CYLINDER ASSYRRMASTER CYLINDER ASSY
-
22GH-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
331A-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
53GM-2589H-00-00 ...SCREW...SCREW
-
64SS-27218-00-00 ...NUT...NUT
-
72YK-27222-00-00 ...JOINT...JOINT
-
892017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1090201-08083-00 WASHER, PLATEWASHER, PLATE
-
1191401-16012-00 PIN, COTTERPIN, COTTER
-
1247X-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
132KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
14360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
152GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1690119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
174KB-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
-
204KB-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2190501-102E8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2290467-14057-00 CLIPCLIP
