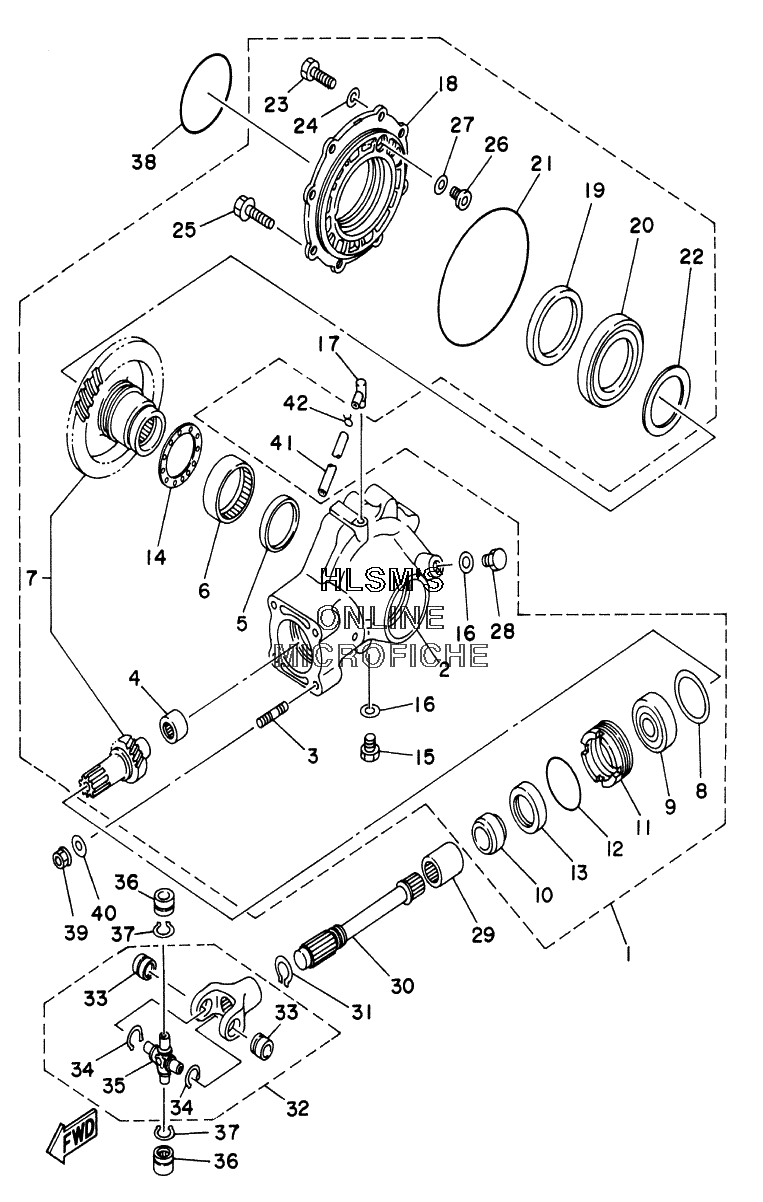

DIFFERENTIAL - REAR W/ DRIVE AXLE для Yamaha WOLVERINE YFM350FXP (4KBR) - 2002 года выпуска`

№

Артикул

Название
1

4GB-46101-03-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

139 700 ₽
2

3HN-46151-00-00 ...HOUSING, DRIVE SHAFT

...HOUSING, DRIVE SHAFT

0 ₽
3

90116-10593-00 ...BOLT, STUD

...BOLT, STUD

470 ₽
4

2H7-46102-00-00 ...BEARING ASSY

...BEARING ASSY

3 460 ₽
5

93101-52116-00 ...OIL SEAL

...OIL SEAL

1 070 ₽
6

93317-85569-00 ...BEARING

...BEARING

8 500 ₽
7

4GB-Y4612-00-00 ...RING GEAR SET

...RING GEAR SET

58 740 ₽
8

1J7-17537-Y0-30 ...SHIM, THRUST (0.30THICKNESS) (OPT)

...SHIM, THRUST (0.30THICKNESS) (OPT)

370 ₽
8

1J7-17537-Y0-40 ...SHIM, THRUST (0.40THICKNESS) (OPT)

...SHIM, THRUST (0.40THICKNESS) (OPT)

370 ₽
8

1J7-17537-Y0-50 ...SHIM, THRUST (0.50THICKNESS) (OPT)

...SHIM, THRUST (0.50THICKNESS) (OPT)

370 ₽
9

93306-30568-00 ...BEARING

...BEARING

6 450 ₽
10

90387-255H9-00 ...COLLAR

...COLLAR

1 880 ₽
11

29U-46125-00-00 ...RETAINER, BEARING

...RETAINER, BEARING

5 030 ₽
12

93210-59531-00 ...O-RING

...O-RING

970 ₽
13

93101-38098-00 ...OIL SEAL

...OIL SEAL

1 200 ₽
14

24W-46118-00-12 ...WASHER, THRUST (1.2THICKNESS) (OPT)

...WASHER, THRUST (1.2THICKNESS) (OPT)

2 200 ₽
14

24W-46118-00-14 ...WASHER, THRUST (1.4THICKNESS) (OPT)

...WASHER, THRUST (1.4THICKNESS) (OPT)

1 730 ₽
14

24W-46118-00-16 ...WASHER, THRUST (1.6THICKNESS) (OPT)

...WASHER, THRUST (1.6THICKNESS) (OPT)

1 730 ₽
14

24W-46118-00-18 ...WASHER, THRUST (1.8THICKNESS) (OPT)

...WASHER, THRUST (1.8THICKNESS) (OPT)

1 730 ₽
14

24W-46118-00-20 ...WASHER, THRUST (2.0THICKNESS) (OPT)

...WASHER, THRUST (2.0THICKNESS) (OPT)

1 730 ₽
15

90340-14046-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

470 ₽
16

214-11198-01-00 ...GASKET

...GASKET

260 ₽
17

2N4-15371-00-00 ...BREATHER

...BREATHER

2 200 ₽
18

3HN-46152-01-00 ...HOUSING, BEARING

...HOUSING, BEARING

0 ₽
19

93102-65386-00 ...OIL SEAL

...OIL SEAL

2 200 ₽
20

93316-01301-00 ...BEARING

...BEARING

8 500 ₽
21

93211-51749-00 ...O-RING

...O-RING

2 200 ₽
22

24W-46117-00-25 ...SHIM, RING GEAR (0.25THICKNESS) (OPT)

...SHIM, RING GEAR (0.25THICKNESS) (OPT)

380 ₽
22

24W-46117-00-30 ...SHIM, RING GEAR (0.30THICKNESS) (OPT)

...SHIM, RING GEAR (0.30THICKNESS) (OPT)

380 ₽
22

24W-46117-00-40 ...SHIM, RING GEAR (0.40THICKNESS) (OPT)

...SHIM, RING GEAR (0.40THICKNESS) (OPT)

380 ₽
22

24W-46117-00-50 ...SHIM, RING GEAR (0.50THICKNESS) (OPT)

...SHIM, RING GEAR (0.50THICKNESS) (OPT)

380 ₽
23

97027-08025-00 ...BOLT

...BOLT

280 ₽
24

92907-08600-00 ...WASHER, PLATE

...WASHER, PLATE

130 ₽
25

95817-10045-00 ...BOLT, FLANGE

...BOLT, FLANGE

650 ₽
26

1FK-46156-00-00 ...STOPPER, RING GEAR

...STOPPER, RING GEAR

1 730 ₽
27

1FK-46157-00-15 ...SHIM, STOPPER (THICKNESS=0.15) (OPT)

...SHIM, STOPPER (THICKNESS=0.15) (OPT)

150 ₽
27

1FK-46157-00-20 ...SHIM, STOPPER (THICKNESS=0.20) (OPT)

...SHIM, STOPPER (THICKNESS=0.20) (OPT)

150 ₽
28

90340-14029-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

540 ₽
29

2HR-46123-00-00 COUPLING, GEAR

COUPLING, GEAR

2 200 ₽
30

4KB-46172-00-00 SHAFT, DRIVE

SHAFT, DRIVE

8 340 ₽
31

93410-22039-00 CIRCLIP

CIRCLIP

470 ₽
32

1YW-46180-01-00 CROSS JOINT COMP

CROSS JOINT COMP

0 ₽
33

93399-99952-00 ...BEARING

...BEARING

2 040 ₽
34

93430-23046-00 ...CIRCLIP

...CIRCLIP

350 ₽
35

1YW-46187-01-00 ...SPIDER

...SPIDER

13 700 ₽
36

93399-99952-00 BEARING

BEARING

2 040 ₽
37

93440-23165-00 CIRCLIP

CIRCLIP

350 ₽
38

93210-85706-00 O-RING

O-RING

750 ₽
39

90179-10394-00 NUT

NUT

320 ₽
40

90201-10774-00 WASHER, PLATE

WASHER, PLATE

250 ₽
41

90445-072J3-00 HOSE (L890)

HOSE (L890)

0 ₽
42

90467-07029-00 CLIP

CLIP

370 ₽
