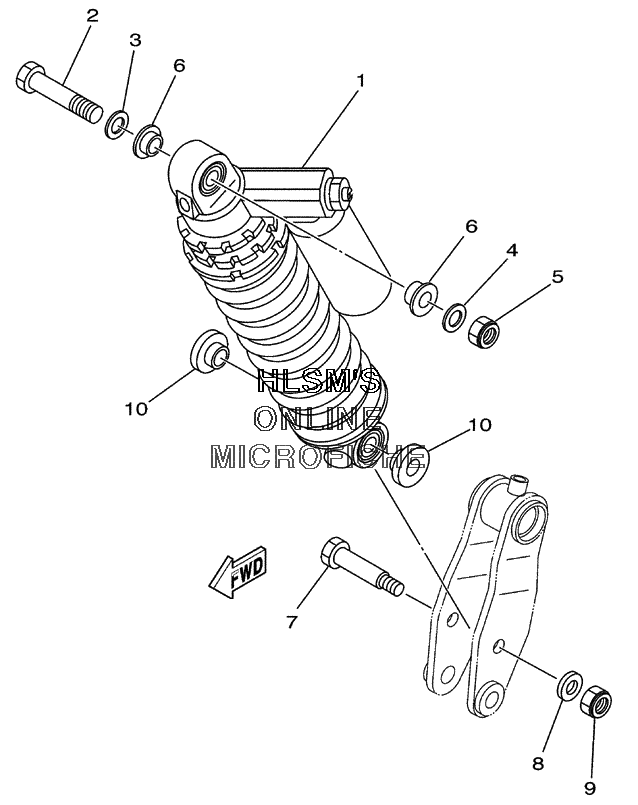

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-22210-80-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290101-12012-00 BOLTBOLT
-
390201-12016-00 WASHER, PLATEWASHER, PLATE
-
490201-124G9-00 WASHER, PLATEWASHER, PLATE
-
590185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-127G8-00 COLLARCOLLAR
-
790109-10009-00 BOLTBOLT
-
890201-10774-00 WASHER, PLATEWASHER, PLATE
-
990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-12015-00 COLLARCOLLAR
