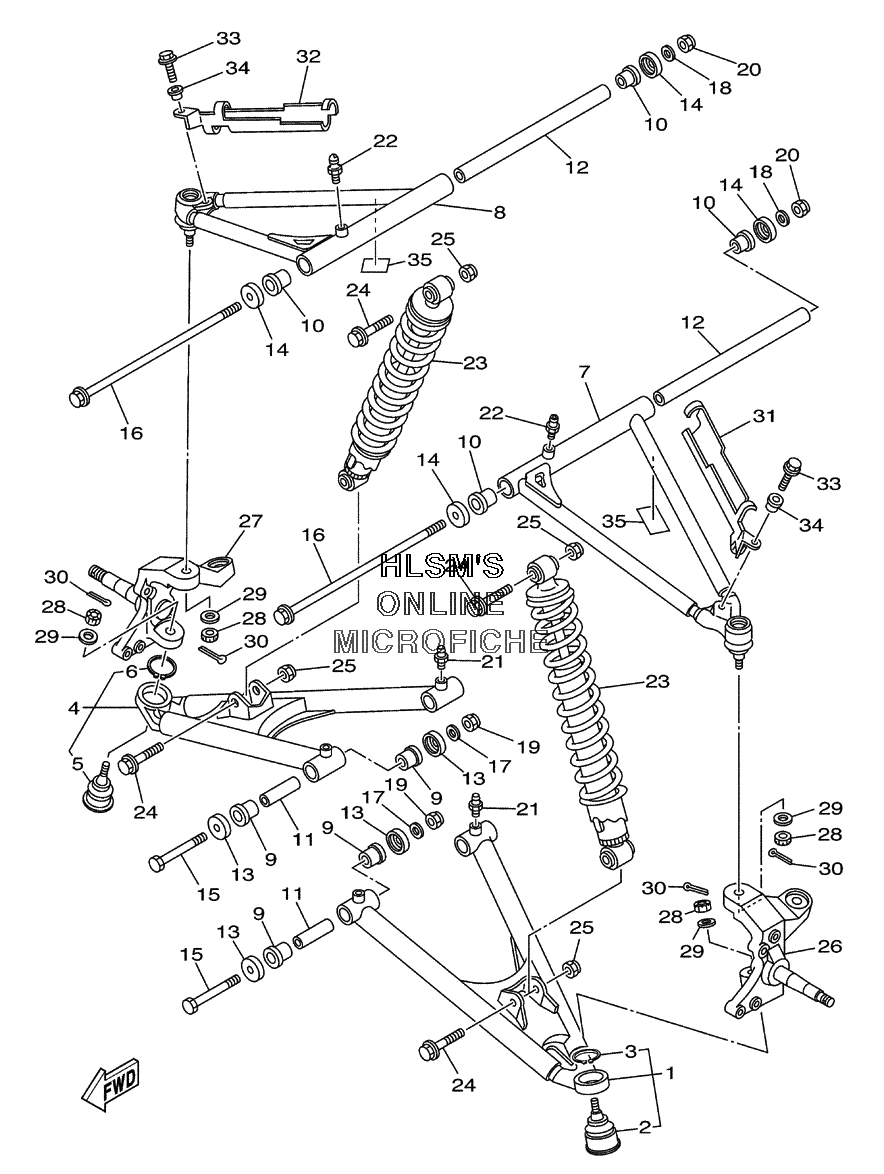

SUSPENSION - FRONT для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25LP-23579-00-00 ....BALL JOINT 2....BALL JOINT 2
-
399009-30400-00 ....CIRCLIP....CIRCLIP
-
45LP-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
55LP-23579-00-00 ....BALL JOINT 2....BALL JOINT 2
-
699009-30400-00 ....CIRCLIP....CIRCLIP
-
75LP-23540-20-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
85LP-23550-20-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
990381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1190387-101R3-00 COLLARCOLLAR
-
1290387-10002-00 COLLARCOLLAR
-
131UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
141UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1590105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-10407-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10430-00 WASHER, PLATEWASHER, PLATE
-
1890201-10430-00 WASHER, PLATEWASHER, PLATE
-
1990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
235LP-23350-20-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2490105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
2590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
265LP-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
275LP-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2890171-10046-00 NUT, CASTLENUT, CASTLE
-
2990209-10229-00 WASHERWASHER
-
3091401-20020-00 PIN, COTTERPIN, COTTER
-
315LP-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
325LP-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3395027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3490387-081R2-00 COLLARCOLLAR
-
353SP-21732-00-00 SEAL 1SEAL 1
