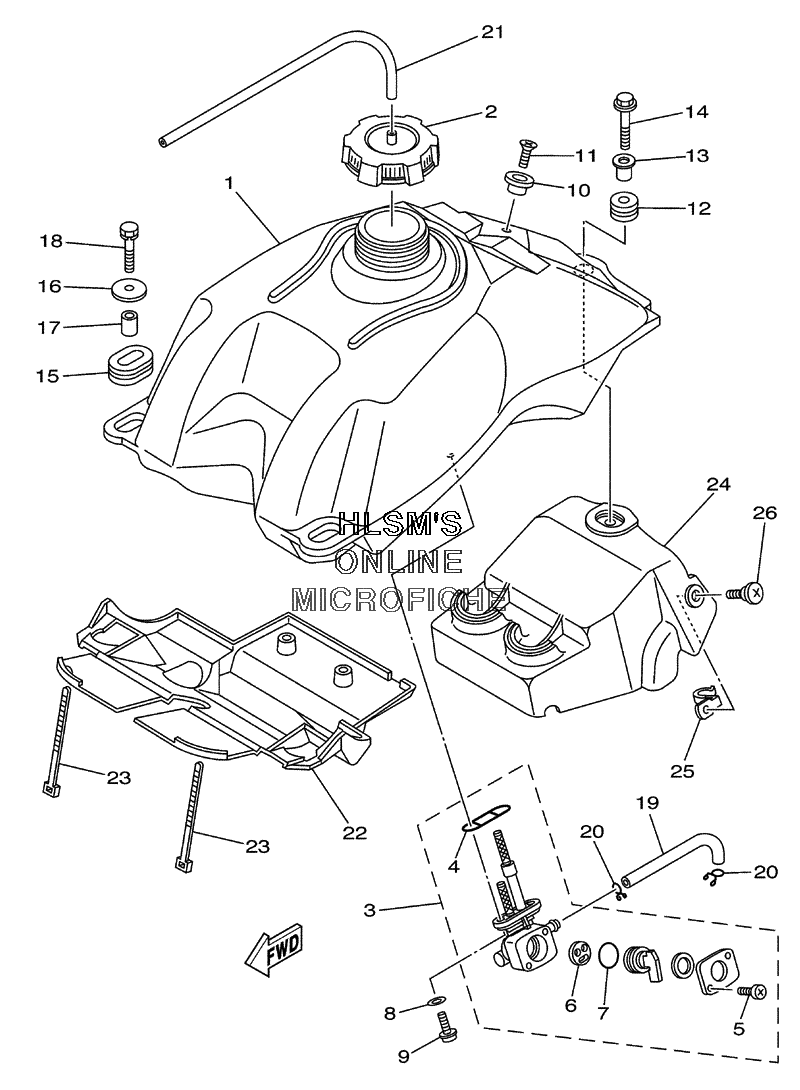

FUEL TANK для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска`
-
№АртикулНазвание
-
15LP-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
35LP-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
44X8-24512-00-00 ....O-RING....O-RING
-
598507-03008-00 ....SCREW....SCREW
-
63AJ-24523-00-00 ....VALVE PACKING....VALVE PACKING
-
73AJ-24534-00-00 ....SEAL, COCK....SEAL, COCK
-
890202-05193-00 WASHER, PLATEWASHER, PLATE
-
990149-06011-00 SCREWSCREW
-
104EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
1198707-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1290480-18290-00 GROMMETGROMMET
-
1390387-066J1-00 COLLARCOLLAR
-
1495827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590480-01400-00 GROMMETGROMMET
-
1690201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1790387-07598-00 COLLARCOLLAR
-
1890119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990445-110F2-00 HOSE (L155)HOSE (L155)
-
2090467-11106-00 CLIPCLIP
-
2190445-083J4-00 HOSE (L340)HOSE (L340)
-
225LP-2414H-01-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
23437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
245LP-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
255LP-24135-00-00 CLAMP 1CLAMP 1
-
2690154-06014-00 SCREW, BINDINGSCREW, BINDING
