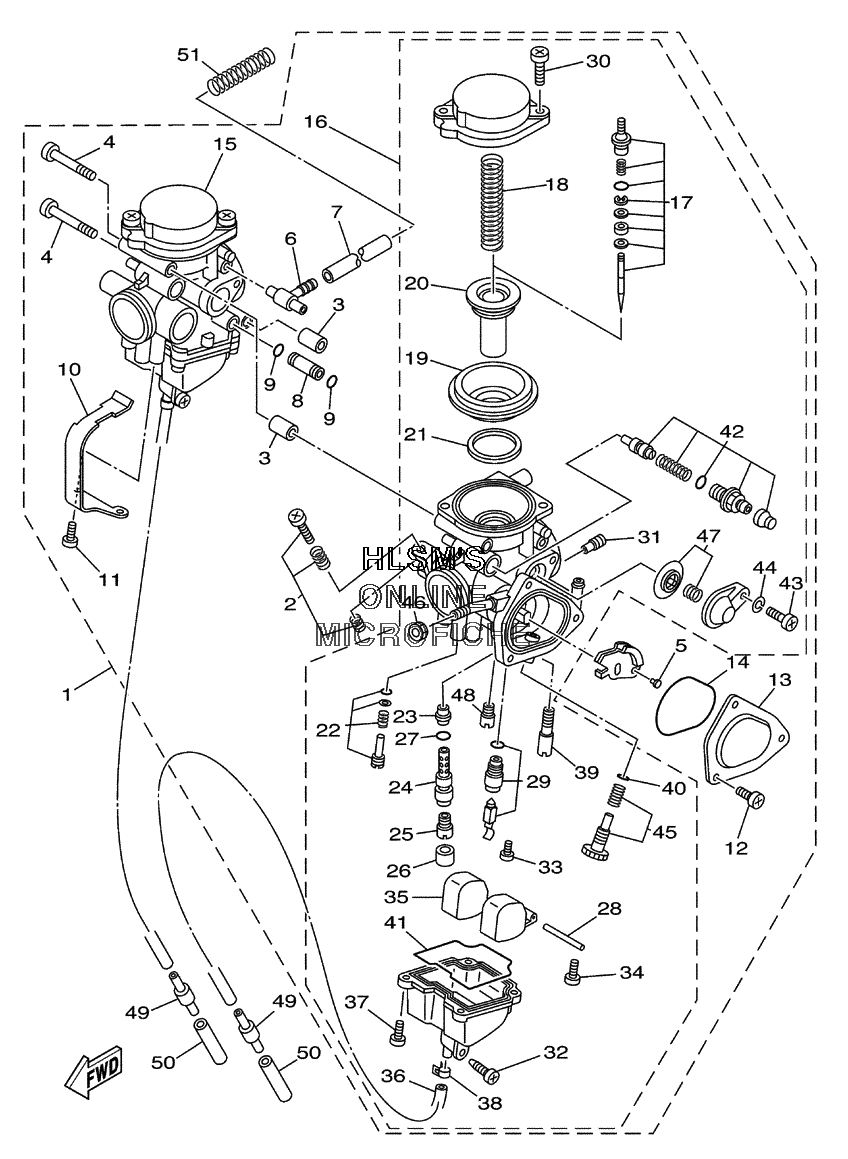

CARBURETOR для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска

№

Артикул

Название
1

5LP-14900-20-00 CARBURETOR ASSY

CARBURETOR ASSY

150 880 ₽
2

3EN-1490K-00-00 ....STOP SCREW SET

....STOP SCREW SET

1 520 ₽
3

5LP-14996-00-00 ....PIPE

....PIPE

920 ₽
4

3LN-14216-00-00 ....SCREW

....SCREW

730 ₽
5

1UY-14155-00-00 ....GUIDE, CABLE

....GUIDE, CABLE

1 200 ₽
6

5EA-14167-00-00 ....CONNECTOR

....CONNECTOR

1 730 ₽
7

5LP-14349-00-00 ....PIPE

....PIPE

4 250 ₽
8

5DM-14148-00-00 ....PIPE

....PIPE

970 ₽
9

36Y-14147-00-00 ....O-RING

....O-RING

720 ₽
10

5LP-14945-00-00 ....PLATE

....PLATE

3 770 ₽
11

3DM-14216-00-00 ....SCREW

....SCREW

400 ₽
12

98507-04006-00 ....SCREW

....SCREW

190 ₽
13

4WV-14293-00-00 ....COVER 1

....COVER 1

840 ₽
14

4WV-14147-10-00 ....O-RING

....O-RING

2 990 ₽
15

5LP-14902-00-00 ....CARBURETOR ASSY 2 (KNOWN AS 14902)

....CARBURETOR ASSY 2 (KNOWN AS 14902)

72 760 ₽
16

5LP-14901-00-00 ....CARBURETOR ASSY 1 (KNOWN AS 14901)

....CARBURETOR ASSY 1 (KNOWN AS 14901)

72 760 ₽
17

5LP-1490J-00-00 ........NEEDLE SET

........NEEDLE SET

5 980 ₽
18

4KM-14933-00-00 ........SPRING, DIAPHRAGM

........SPRING, DIAPHRAGM

1 550 ₽
19

5GH-14940-10-00 ........DIAPHRAGM ASSY

........DIAPHRAGM ASSY

5 030 ₽
20

5LP-14112-00-00 ........VALVE, THROTTLE 1

........VALVE, THROTTLE 1

8 030 ₽
21

5LP-14918-00-00 ........RING

........RING

730 ₽
22

5LP-14105-00-00 ........PILOT SCREW SET (FOR 14901)

........PILOT SCREW SET (FOR 14901)

2 990 ₽
22

5LP-14105-10-00 ........PILOT SCREW SET (FOR 14902)

........PILOT SCREW SET (FOR 14902)

2 990 ₽
23

5DM-14141-46-00 ........NOZZLE, MAIN

........NOZZLE, MAIN

4 400 ₽
24

5GH-14261-10-00 ........HOLDER

........HOLDER

4 250 ₽
25

3G2-14231-28-00 ........JET, MAIN (#140) (FOR 14901)

........JET, MAIN (#140) (FOR 14901)

950 ₽
25

3G2-14231-29-00 ........JET, MAIN (#145) (FOR 14902)

........JET, MAIN (#145) (FOR 14902)

1 190 ₽
26

5GH-14918-00-00 ........RING

........RING

1 730 ₽
27

583-14561-00-00 ........O-RING

........O-RING

540 ₽
28

127-14186-00-00 ........PIN, FLOAT

........PIN, FLOAT

470 ₽
29

5LP-14107-20-00 ........NEEDLE VALVE SET

........NEEDLE VALVE SET

6 450 ₽
30

4KM-14216-00-00 ........SCREW

........SCREW

480 ₽
31

1HX-14231-16-00 ........JET, MAIN (# 80) (FOR 14901)

........JET, MAIN (# 80) (FOR 14901)

1 260 ₽
31

1HX-14231-30-00 ........JET, MAIN (#150) (FOR 14902)

........JET, MAIN (#150) (FOR 14902)

1 510 ₽
32

12R-14191-00-00 ........PLUG, DRAIN

........PLUG, DRAIN

880 ₽
33

98507-04008-00 ........SCREW

........SCREW

160 ₽
34

1FN-14565-00-00 ........SCREW

........SCREW

340 ₽
35

5DM-14985-00-00 ........FLOAT

........FLOAT

6 450 ₽
36

4KB-14193-20-00 ........PIPE

........PIPE

3 300 ₽
37

98580-04010-00 ......SCREW, PAN HEAD

......SCREW, PAN HEAD

220 ₽
38

90467-06194-00 ........CLIP

........CLIP

150 ₽
39

4KM-14142-22-00 ........JET, PILOT (# 22.5)

........JET, PILOT (# 22.5)

1 130 ₽
40

812-14147-00-00 ........O-RING

........O-RING

500 ₽
41

5DM-14561-00-00 ........O-RING

........O-RING

1 730 ₽
42

5GH-1410A-00-00 ........STARTER SET (FOR 14901)

........STARTER SET (FOR 14901)

5 980 ₽
43

98507-04014-00 ........SCREW

........SCREW

150 ₽
44

92907-04100-00 ........WASHER, SPRING

........WASHER, SPRING

130 ₽
45

5LP-14103-00-00 ........THROTTLE SCREW SET (FOR 14901)

........THROTTLE SCREW SET (FOR 14901)

7 550 ₽
46

522-14161-00-00 ........NUT, CABLE ADJUSTING (FOR 14901)

........NUT, CABLE ADJUSTING (FOR 14901)

440 ₽
47

5EL-1490H-00-00 ........DIAPHRAGM SET 5 (FOR 14901)

........DIAPHRAGM SET 5 (FOR 14901)

3 300 ₽
48

3G2-14231-19-00 ........JET, MAIN (# 95) (FOR 14901)

........JET, MAIN (# 95) (FOR 14901)

1 360 ₽
49

24W-14193-00-00 PIPE

PIPE

1 880 ₽
50

91A20-07004-00 TUBE, FLEXIBLE VINYL

TUBE, FLEXIBLE VINYL

150 ₽
51

90501-08430-00 SPRING, COMPRESSION

SPRING, COMPRESSION

500 ₽
