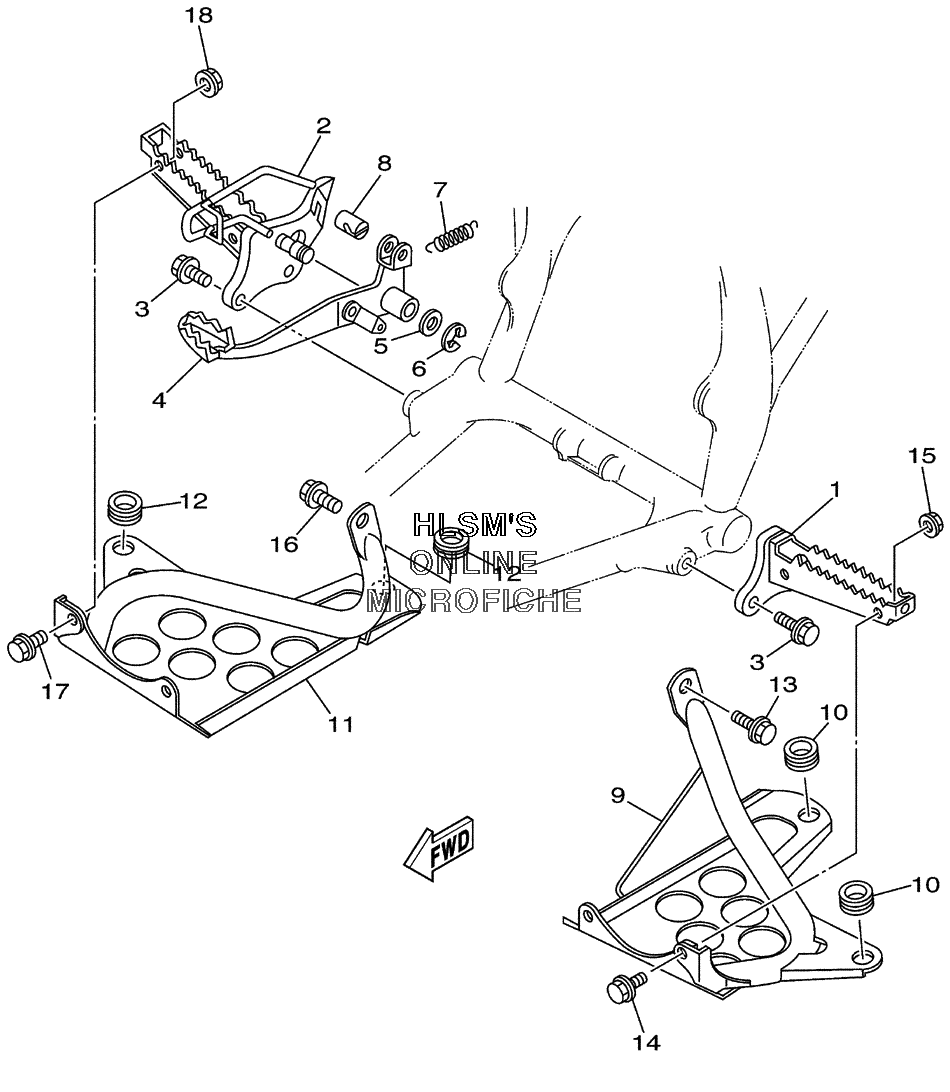

FOOTREST W/ BRAKE PEDAL для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска`
-
№АртикулНазвание
-
15KJ-27411-00-00 FOOTREST 1FOOTREST 1
-
25KJ-27421-00-00 FOOTREST 2FOOTREST 2
-
395817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
43JM-27211-20-00 PEDAL, BRAKEPEDAL, BRAKE
-
590201-15797-00 WASHER, PLATEWASHER, PLATE
-
693430-12008-00 CIRCLIPCIRCLIP
-
790506-20193-00 SPRING, TENSIONSPRING, TENSION
-
890249-14202-00 PINPIN
-
93JM-27445-00-00 PLATE 1PLATE 1
-
1090480-18411-00 GROMMETGROMMET
-
113JM-27446-00-00 PLATE 2PLATE 2
-
1290480-18411-00 GROMMETGROMMET
-
1395827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1492017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1595707-08500-00 NUT, FLANGENUT, FLANGE
-
1695827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1792017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1895707-08500-00 NUT, FLANGENUT, FLANGE
