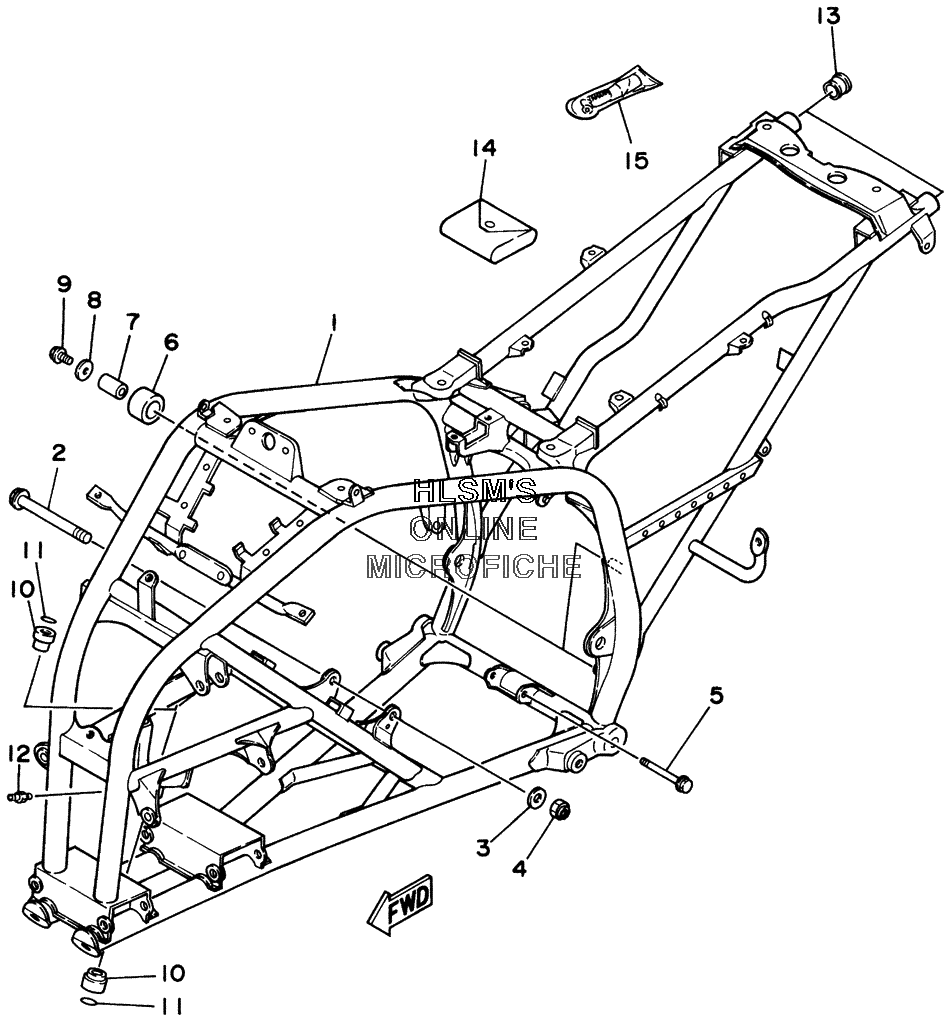

FRAME для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска
-
№АртикулНазвание
-
15KJ-21110-00-35 FRAME COMP.FRAME COMP.
-
290105-10328-00 BOLT, FLANGEBOLT, FLANGE
-
390201-10774-00 WASHER, PLATEWASHER, PLATE
-
490185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590105-08721-00 BOLT, FLANGEBOLT, FLANGE
-
630X-22178-00-00 TENSIONERTENSIONER
-
74V4-22184-00-00 BUSHBUSH
-
890201-08753-00 WASHER, PLATEWASHER, PLATE
-
995807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1090381-15040-00 BUSH, SOLIDBUSH, SOLID
-
1193210-15414-00 O-RINGO-RING
-
1293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1390338-23172-00 PLUGPLUG
-
142XJ-28100-00-00 TOOL KITTOOL KIT
-
151NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - REAR
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- ELECTRICAL
- EMBLEM LABEL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- • FRAME
- FUEL TANK
- GENERATOR
- GUARD W/ CARRIER - FRONT/REAR
- HANDLEBAR W/ SWITCHES - LEVERS
- HANDLEBAR W/ THROTTLE - CABLE
- HEADLIGHT
- MODEL INFO - COLOR CHART
- OIL PUMP
- OIL TANK
- SEAT
- SHIFT CAM FORK
- SHIFT SHAFT
- STARTER - KICK
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- WHEEL - FRONT W/ BRAKE
- WHEEL - REAR W/ AXLE
