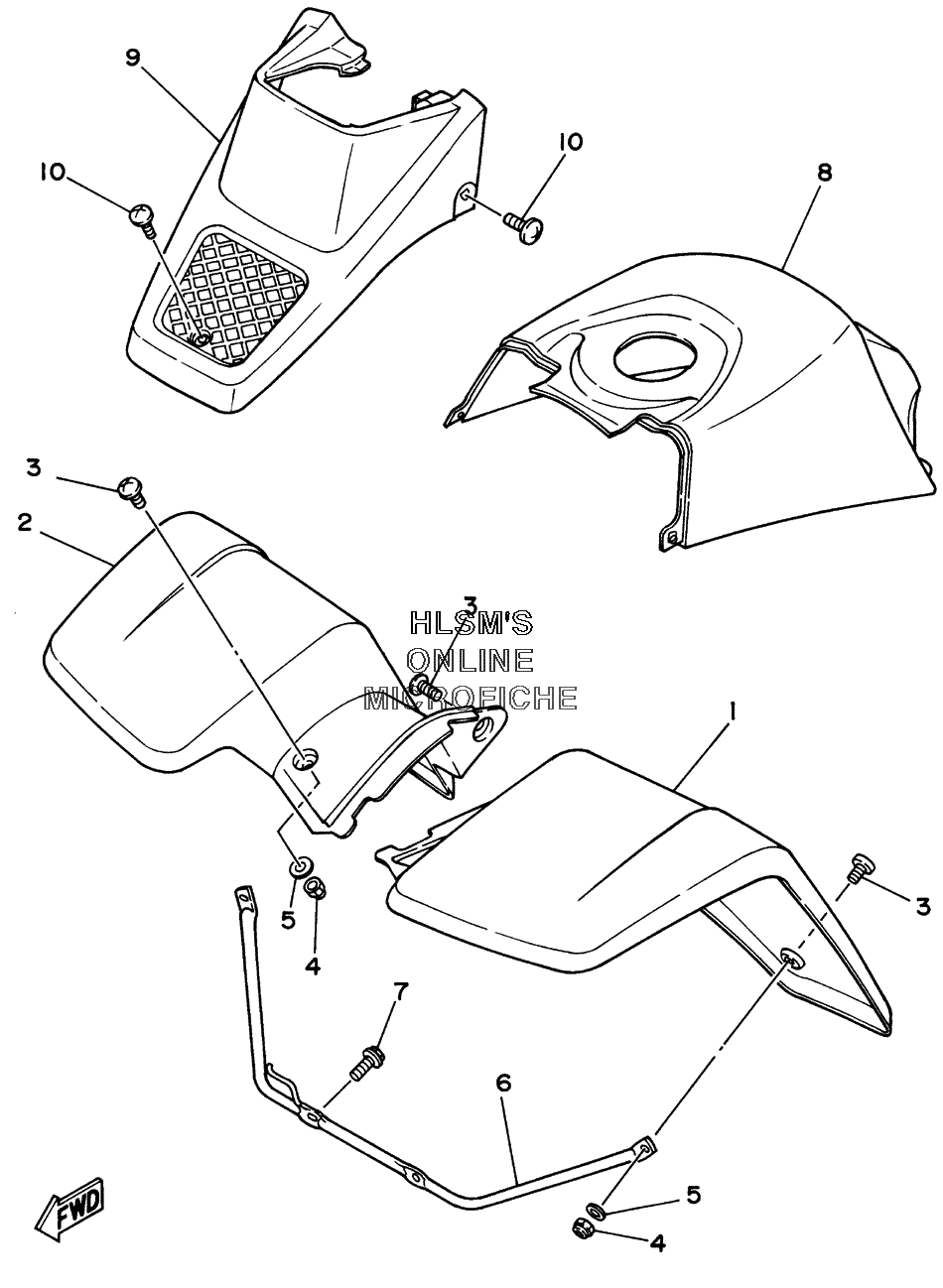

FENDER - FRONT для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска
-
№АртикулНазвание
-
12XJ-W2151-81-00 FRONT FENDER COMP. (YAMAHA BLACK) (YB)FRONT FENDER COMP. (YAMAHA BLACK) (YB)
-
12XJ-W2151-C1-00 FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPSE)FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
22XJ-21556-80-00 FENDER, FRONT 2 (YAMAHA BLACK) (YB)FENDER, FRONT 2 (YAMAHA BLACK) (YB)
-
22XJ-21556-C0-00 FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
390149-06306-00 SCREWSCREW
-
495607-06100-00 NUT, UNUT, U
-
592907-06200-00 WASHERWASHER
-
62XJ-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
795827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
82XJ-2171A-90-00 COVER, TOP (YAMAHA BLACK) (YB)COVER, TOP (YAMAHA BLACK) (YB)
-
82XJ-2171A-C0-00 COVER, TOP (DEEP PURPLISH BLUE SOLID E) (DPSE)COVER, TOP (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
92XJ-23391-90-00 PANEL, FRONT (YAMAHA BLACK) (YB)PANEL, FRONT (YAMAHA BLACK) (YB)
-
92XJ-23391-C0-00 PANEL, FRONT (DEEP PURPLISH BLUE SOLID E) (DPSE)PANEL, FRONT (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
1090154-05051-00 SCREW, BINDINGSCREW, BINDING
