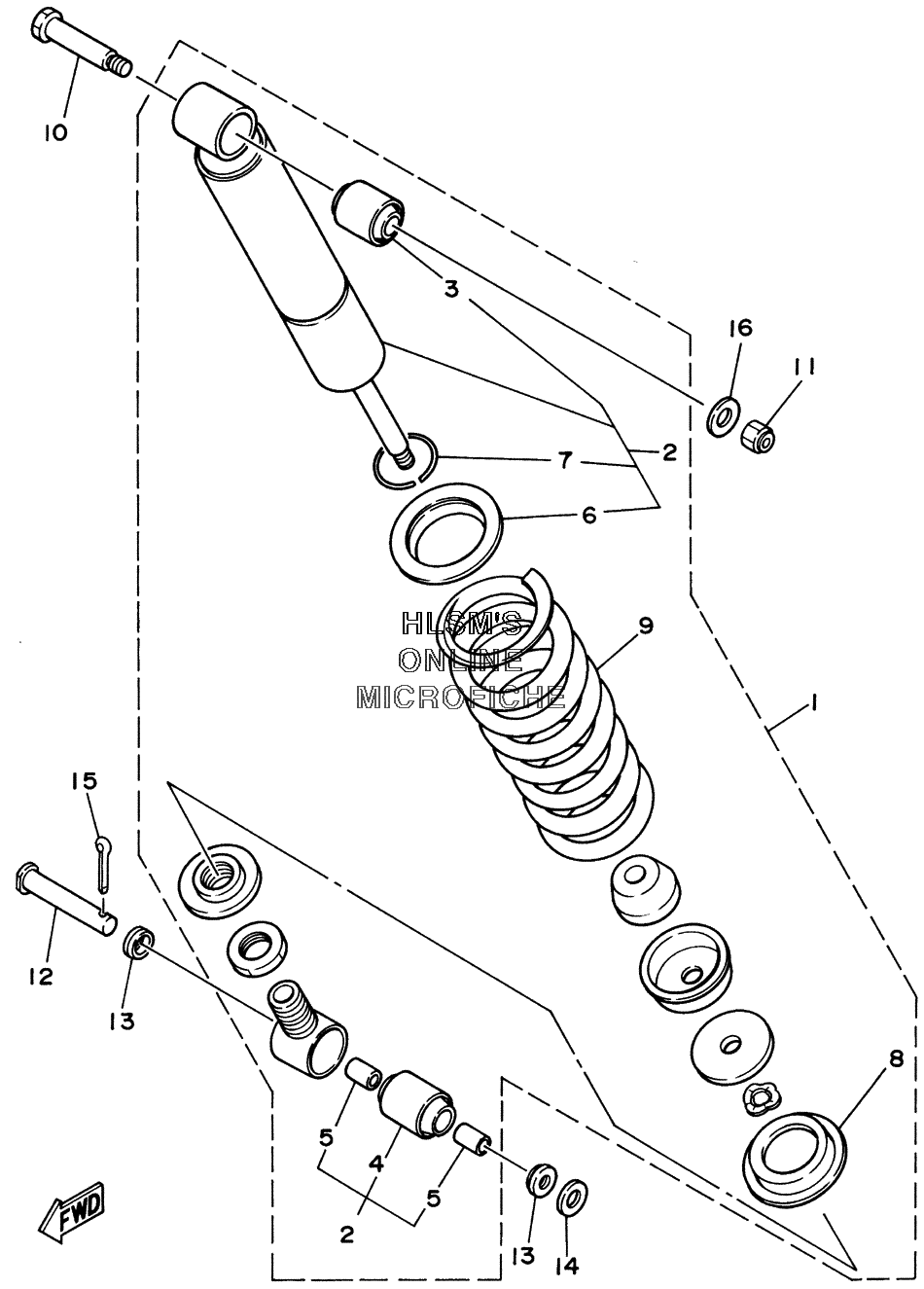

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска`
-
№АртикулНазвание
-
12XJ-22210-10-36 SHOCK ABSORBER ASSY, REAR (DEEP PURPLISH BLUE SOLID E) (DPSE)SHOCK ABSORBER ASSY, REAR (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
12XJ-22210-10-P2 SHOCK ABSORBER ASSY, REAR (YAMAHA BLACK) (YB)SHOCK ABSORBER ASSY, REAR (YAMAHA BLACK) (YB)
-
22XJ-22201-10-00 ...DAMPER SUB ASSY...DAMPER SUB ASSY
-
31NU-22216-00-00 ......BUSH, REAR SHOCK ABSORBER......BUSH, REAR SHOCK ABSORBER
-
41NU-22226-00-00 ......BUSH, SHOCK ABSORBER LOWER......BUSH, SHOCK ABSORBER LOWER
-
590380-12051-00 ......BUSH, SOLID......BUSH, SOLID
-
622W-22223-00-00 ......SEAT, SPRING LOWER......SEAT, SPRING LOWER
-
793440-42101-00 ......CIRCLIP......CIRCLIP
-
822W-22214-01-00 ...GUIDE, SPRING 1...GUIDE, SPRING 1
-
92XJ-22212-00-36 ...SPRING (DEEP PURPLISH BLUE SOLID E) (DPSE)...SPRING (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
92XJ-22212-00-P2 ...SPRING (YAMAHA BLACK) (YB)...SPRING (YAMAHA BLACK) (YB)
-
1090109-10736-00 BOLTBOLT
-
1195607-10100-00 NUT, UNUT, U
-
1290240-12092-00 PIN, CLEVISPIN, CLEVIS
-
131W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1492907-12600-00 WASHERWASHER
-
1591401-30025-00 PIN, COTTERPIN, COTTER
-
1690201-10126-00 WASHER, PLATEWASHER, PLATE
