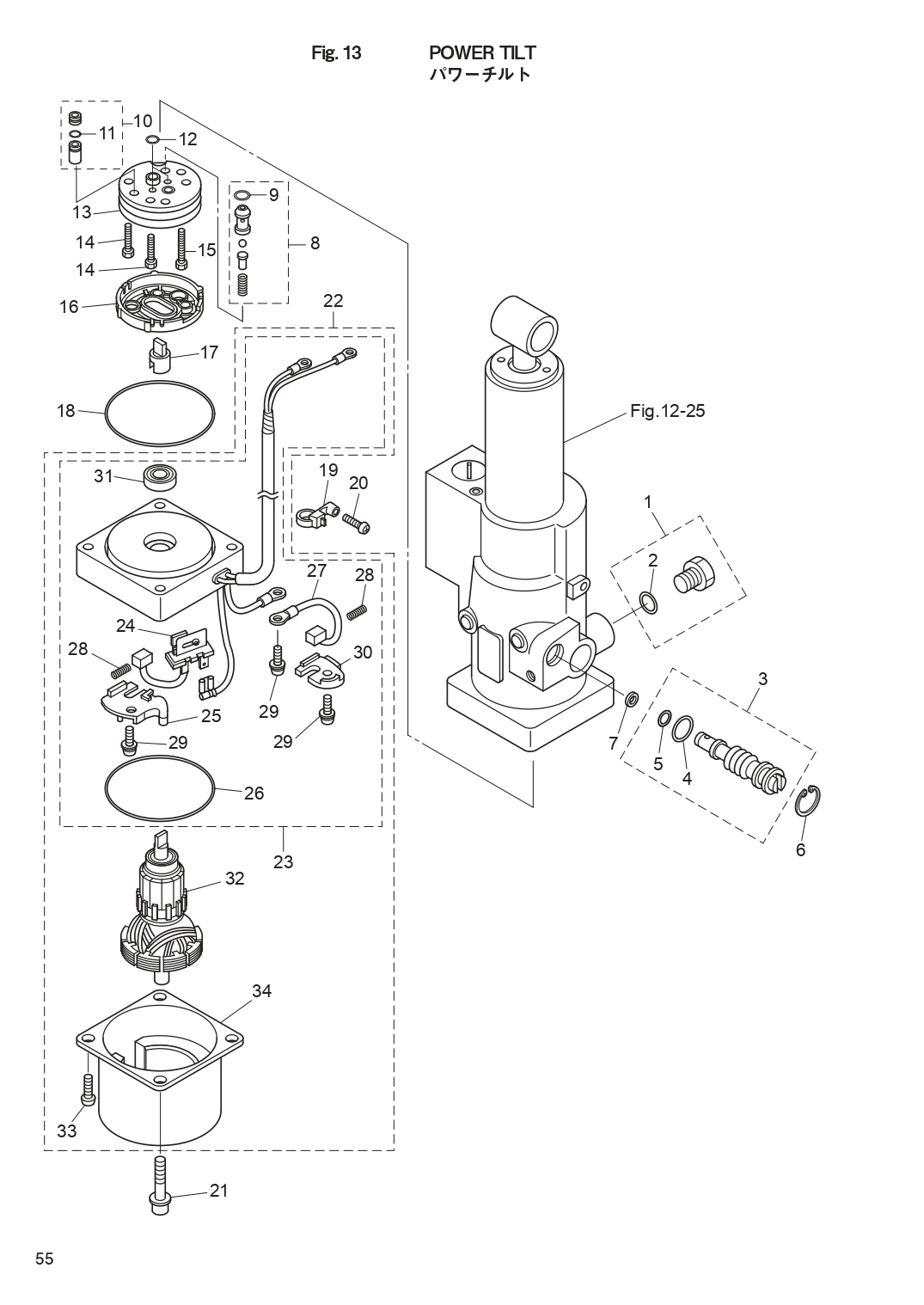

POWER TILT для Tohatsu MFS15D - 2017 года выпуска`
-
№АртикулНазвание
-
13Z0-77221-0 CAP ASSYCAP ASSY
-
23B7-77169-0 * O-RING* O-RING
-
33BA-77175-0 MANUAL VALVE ASSYMANUAL VALVE ASSY
-
43R0-77177-0 * O-RING 2.4-9.8* O-RING 2.4-9.8
-
53Z0-77179-0 * O-RING* O-RING
-
63R0-77171-0 C-RINGC-RING
-
73AC-77173-0 SEAL WASHERSEAL WASHER
-
83BA-77450-0 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
93Z0-77179-0 * O-RING* O-RING
-
103Z0-77460-0 VALVE ASSYVALVE ASSY
-
113R0-77451-0 * O-RING 1.5-3.5* O-RING 1.5-3.5
-
123B7-77169-0 O-RINGO-RING
-
133B7-77430-0 PUMPPUMP
-
143B7-77432-1 BOLTBOLT
-
153B7-77431-1 BOLTBOLT
-
163B7-77434-1 FILTERFILTER
-
173E0-77163-0 COUPLINGCOUPLING
-
183R0-77167-0 O-RING 2-62.5O-RING 2-62.5
-
193Z1-84398-1 BANDBAND
-
203V1-64333-0 PRE-COATED SCREW 5-12PRE-COATED SCREW 5-12
-
213Z0-77431-0 BOLTBOLT
-
223BA-77180-0 MOTOR ASSYMOTOR ASSY
-
233BA-77192-0 * MOTOR BRACKET ASSY* MOTOR BRACKET ASSY
-
243Z0-77191-0 ** BREAKER** BREAKER
-
253Z0-77187-0 ** BREAKER HOLDER** BREAKER HOLDER
-
263Z0-77167-0 ** O-RING** O-RING
-
273E0-77183-0 ** BRUSH** BRUSH
-
283E0-77184-0 ** BRUSH SPRING** BRUSH SPRING
-
29921521-5512 ** SCREW** SCREW
-
303Z0-77186-0 ** BRUSH HOLDER** BRUSH HOLDER
-
313E0-77193-0 ** OIL SEAL** OIL SEAL
-
323Z0-77190-0 * ARMATURE ASSY* ARMATURE ASSY
-
339215E3-5512 * SCREW* SCREW
-
343Z0-77195-0 * YOKE ASSY* YOKE ASSY
