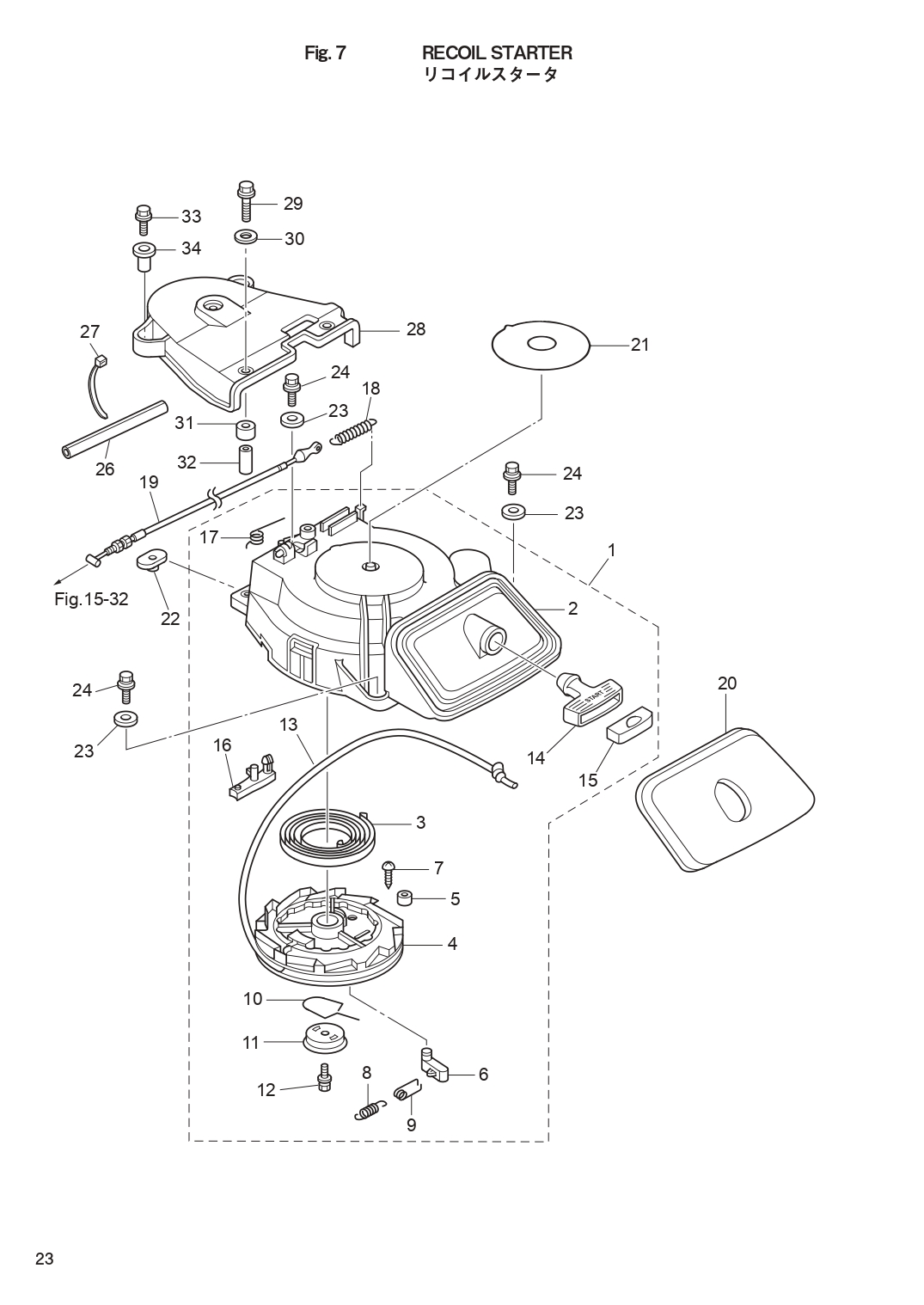

RECOIL STARTER для Tohatsu MFS15D - 2017 года выпуска`
-
№АртикулНазвание
-
13BJ-05090-1 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
23BJ-05105-1 * STARTER CASE* STARTER CASE
-
33H8-05004-0 * STARTER SPRING* STARTER SPRING
-
43BJ-05104-0 * REEL* REEL
-
53BJ-05135-0 * BUSHING* BUSHING
-
63BJ-05003-0 * RATCHET* RATCHET
-
73BJ-05913-0 * TAPPING SCREW* TAPPING SCREW
-
83R3-05012-0 * RETURN SPRING* RETURN SPRING
-
93H8-05123-1 * RETURN SPRING* RETURN SPRING
-
103R3-05007-0 * FRICTION SPRING* FRICTION SPRING
-
113R3-05006-0 * FRICTION PLATE* FRICTION PLATE
-
123R3-05193-0 * BOLT* BOLT
-
133R3-05013-0 * STARTER ROPE φ5-1800* STARTER ROPE φ5-1800
-
143BJ-05019-0 STARTER HANDLESTARTER HANDLE
-
153AB-05131-0 * ROPE ANCHOR* ROPE ANCHOR
-
163R3-05252-0 * STARTER LOCK* STARTER LOCK
-
173R3-05216-0 * STARTER LOCK SPRING* STARTER LOCK SPRING
-
183AC-05258-0 STARTER LOCK CAM SPRINGSTARTER LOCK CAM SPRING
-
193BJ-05207-0 STARTER LOCK WIRESTARTER LOCK WIRE
-
203SA-67503-0 STARTER SEALSTARTER SEAL
-
213NV-72181-0 CAUTION DECAL (B)CAUTION DECAL (B)
-
213PA-72181-1 CAUTION DECAL (B)
for EU ModelCAUTION DECAL (B)
for EU Model -
223F3-76042-2 NUTNUT
-
233C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
243AL-60108-0 PRE-COATED BOLT 6-20PRE-COATED BOLT 6-20
-
263V2-06157-0 PROTECTOR φ12-120
Starter Lock CablePROTECTOR φ12-120
Starter Lock Cable -
27369-84398-0 BAND 158
Starter Lock CableBAND 158
Starter Lock Cable -
283R3-06308-0 BELT COVERBELT COVER
-
29910103-0630 BOLTBOLT
-
303C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
313R3-06302-0 RUBBER MOUNTRUBBER MOUNT
-
323R3-06303-1 COLLAR 6.2-9-21COLLAR 6.2-9-21
-
33910103-0620 BOLTBOLT
-
343BJ-06283-0 COLLAR 6.1-9-7.4COLLAR 6.1-9-7.4
