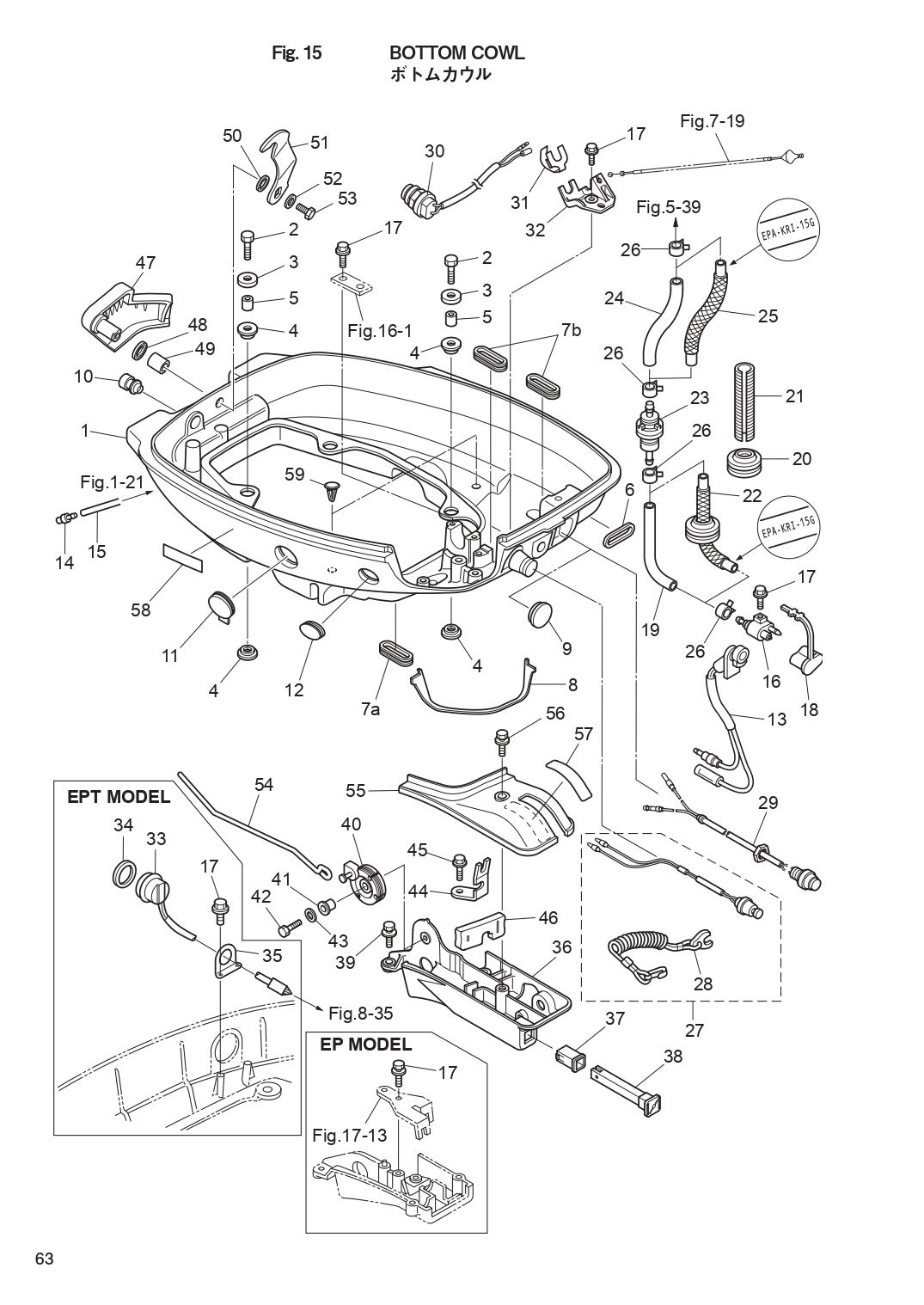

BOTTOM COWL для Tohatsu MFS15D - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3BAQ67100-0 BOTTOM COWL
    BOTTOM COWL
  • 2
    9101E3-0630 BOLT
    BOLT
  • 3
    3BJ-67115-0 WASHER 6.5-20.5-1
    WASHER 6.5-20.5-1
  • 4
    346-67113-0 MOUNT 8.5-14-2.5
    MOUNT 8.5-14-2.5
  • 5
    346-67114-1 SPACER 6.2-9-15.7
    SPACER 6.2-9-15.7
  • 6
    3R3-67162-0 GROMMET 25-15-3
    Battery Cord Hole
    GROMMET 25-15-3
    Battery Cord Hole
  • 7a
    3R3-66226-0 GROMMET 40-18-3
    except PT Type Shift Rod
    GROMMET 40-18-3
    except PT Type Shift Rod
  • 7a
    3BJ-66226-0 GROMMET 40-18-3
    except PT Type Throttle Wire, PT Cord
    GROMMET 40-18-3
    except PT Type Throttle Wire, PT Cord
  • 7b
    3BJ-66226-0 GROMMET 40-18-3
    for PT Type Throttle Wire
    GROMMET 40-18-3
    for PT Type Throttle Wire
  • 7b
    3R3-66226-0 GROMMET 40-18-3
    for PT Type Shift Rod, PT Cord
    GROMMET 40-18-3
    for PT Type Shift Rod, PT Cord
  • 8
    3BJ-67484-0 SEAL
    SEAL
  • 9
    345-67117-0 GROMMET 17-2.7
    Main Switch for MF Type
    GROMMET 17-2.7
    Main Switch for MF Type
  • 9
    345-67117-0 GROMMET 17-2.7
    Main Switch & Stop Switch for EP/EPT Type
    GROMMET 17-2.7
    Main Switch & Stop Switch for EP/EPT Type
  • 10
    3A3-76037-0 CABLE TERMINAL PLUG
    CABLE TERMINAL PLUG
  • 11
    3BA-72618-0 GROMMET 46-3
    PT Switch
    GROMMET 46-3
    PT Switch
  • 12
    3BA-67187-0 GROMMET
    GROMMET
  • 13
    3R3-71040-0 PILOT LAMP ASSY
    PILOT LAMP ASSY
  • 14
    3BA-01138-0 NIPPLE 6.8-3-10
    NIPPLE 6.8-3-10
  • 15
    98AB-50-330 HOSE
    98AB-501000
    HOSE
    98AB-501000
  • 16
    394-70260-0 FUEL CONNECTOR (MALE)
    FUEL CONNECTOR (MALE)
  • 17
    9101E3-5616 BOLT
    for MF/EF/EFT Type Holder, Connector, Neutral SW
    BOLT
    for MF/EF/EFT Type Holder, Connector, Neutral SW
  • 17
    9101E3-5616 BOLT
    for EP Type Holder,Connector Neutral SW, Cable Clip
    BOLT
    for EP Type Holder,Connector Neutral SW, Cable Clip
  • 17
    9101E3-5616 BOLT
    for EPT Type Holder,Connector N-SW, C/Clip, PTT SW
    BOLT
    for EPT Type Holder,Connector N-SW, C/Clip, PTT SW
  • 18
    3H6-70262-0 FUEL CONNECTOR PROTECTOR
    FUEL CONNECTOR PROTECTOR
  • 19
    98AB-50-400 HOSE
    STD 98AB-501000
    HOSE
    STD 98AB-501000
  • 20
    345-76023-0 GROMMET 22-2.5
    STD
    GROMMET 22-2.5
    STD
  • 21
    3BJ-70313-0 FUEL HOSE PROTECTOR φ10.7-280
    STD
    FUEL HOSE PROTECTOR φ10.7-280
    STD
  • 22
    3BA-02160-0 FUEL HOSE W/PROTECTOR L=400
    Low Permeation Parts EPA-KRI-15G Grommet
    FUEL HOSE W/PROTECTOR L=400
    Low Permeation Parts EPA-KRI-15G Grommet
  • 23
    369-02230-0 FUEL FILTER ASSY
    FUEL FILTER ASSY
  • 24
    98AB-50-120 HOSE
    STD 98AB-501000
    HOSE
    STD 98AB-501000
  • 25
    3BH-02160-0 FUEL HOSE W/PROTECTOR L=120
    Low Permeation Parts USA EPA-KRI-15G
    FUEL HOSE W/PROTECTOR L=120
    Low Permeation Parts USA EPA-KRI-15G
  • 26
    3GT-35143-0 CLIP φ9.4
    CLIP φ9.4
  • 27
    398-06830-0 STOP SWITCH ASSY
    for MF/EF/EFT Type
    STOP SWITCH ASSY
    for MF/EF/EFT Type
  • 28
    353-06821-0 * STOP SWITCH LANYARD ASSY
    * STOP SWITCH LANYARD ASSY
  • 29
    3AA-76026-0 MAIN SWITCH ASSY
    for EF/EFT Type
    MAIN SWITCH ASSY
    for EF/EFT Type
  • 30
    3NV-76080-0 NEUTRAL SWITCH
    for EF/EFT Type
    NEUTRAL SWITCH
    for EF/EFT Type
  • 31
    398-76083-0 NEUTRAL SWITCH ACTUATOR
    for EF/EFT Type
    NEUTRAL SWITCH ACTUATOR
    for EF/EFT Type
  • 32
    3BJ-76081-0 NEUTRAL SWITCH BRACKET
    NEUTRAL SWITCH BRACKET
  • 33
    3AC-72615-0 PTT SWITCH ASSY
    for EPT Type
    PTT SWITCH ASSY
    for EPT Type
  • 34
    3F3-72616-1 GASKET
    for EPT Type
    GASKET
    for EPT Type
  • 35
    3AL-72617-0 PTT SWITCH ASSY BRACKET
    for EPT Type
    PTT SWITCH ASSY BRACKET
    for EPT Type
  • 36
    3BJQ67480-0 SHIFT LEVER BRACKET
    for MF/EF/EFT Type
    SHIFT LEVER BRACKET
    for MF/EF/EFT Type
  • 37
    3C8-67156-0 BUSHING
    for MF/EF/EFT Type
    BUSHING
    for MF/EF/EFT Type
  • 38
    3C8-67151-1 CHOKE ROD
    for MF/EF/EFT Type
    CHOKE ROD
    for MF/EF/EFT Type
  • 39
    9101E3-5620 BOLT
    for MF/EF/EFT Type
    BOLT
    for MF/EF/EFT Type
  • 40
    3BH-63622-0 THROTTLE DRUM ASSY
    for MF/EF/EFT Type
    THROTTLE DRUM ASSY
    for MF/EF/EFT Type
  • 41
    3BJ-06283-0 COLLAR 6.1-9-7.4
    for MF/EF/EFT Type
    COLLAR 6.1-9-7.4
    for MF/EF/EFT Type
  • 42
    9101E3-0620 BOLT
    for MF/EF/EFT Type
    BOLT
    for MF/EF/EFT Type
  • 43
    3R0-66308-0 WASHER 6-16-1.5
    Throttle Drum, Shift Lever for MF/EF/EFT Type
    WASHER 6-16-1.5
    Throttle Drum, Shift Lever for MF/EF/EFT Type
  • 44
    3BJ-63508-0 THROTTLE WIRE BRACKET
    for MF/EF/EFT Type
    THROTTLE WIRE BRACKET
    for MF/EF/EFT Type
  • 45
    9101E3-5625 BOLT
    for MF/EF/EFT Type
    BOLT
    for MF/EF/EFT Type
  • 46
    3BJ-66260-0 GROMMET
    for MF/EF/EFT Type
    GROMMET
    for MF/EF/EFT Type
  • 47
    3R3Q67141-0 HOOK LEVER
    HOOK LEVER
  • 48
    338-67147-0 SEAL RING 13.8-22-3.7
    SEAL RING 13.8-22-3.7
  • 49
    350-67105-0 HOOK LEVER BUSHING 14-16.5-17.7
    HOOK LEVER BUSHING 14-16.5-17.7
  • 50
    941403-1400 WAVE WASHER d=14
    WAVE WASHER d=14
  • 51
    3SA-67142-0 COVER HOOK
    COVER HOOK
  • 52
    3R0-66308-0 WASHER 6-16-1.5
    WASHER 6-16-1.5
  • 53
    3Y3-60108-0 PRE-COATED BOLT 6-12
    PRE-COATED BOLT 6-12
  • 54
    3BA-63617-0 THROTTLE ROD
    for MF/EF/EFT Type
    THROTTLE ROD
    for MF/EF/EFT Type
  • 55
    3BJ-67481-0 SHIFT LEVER BRACKET COVER
    for MF/EF/EFT Type
    SHIFT LEVER BRACKET COVER
    for MF/EF/EFT Type
  • 56
    3BJ-67485-0 BOLT 6-35
    for MF/EF/EFT Type
    BOLT 6-35
    for MF/EF/EFT Type
  • 57
    3V9-67578-3 SHIFT DECAL
    for MF/EF/EFT Type
    SHIFT DECAL
    for MF/EF/EFT Type
  • 58
    3H6-67572-0 STORAGE DECAL
    STORAGE DECAL
  • 59
    3SA-67154-0 PLASTIC RIVET
    PLASTIC RIVET
