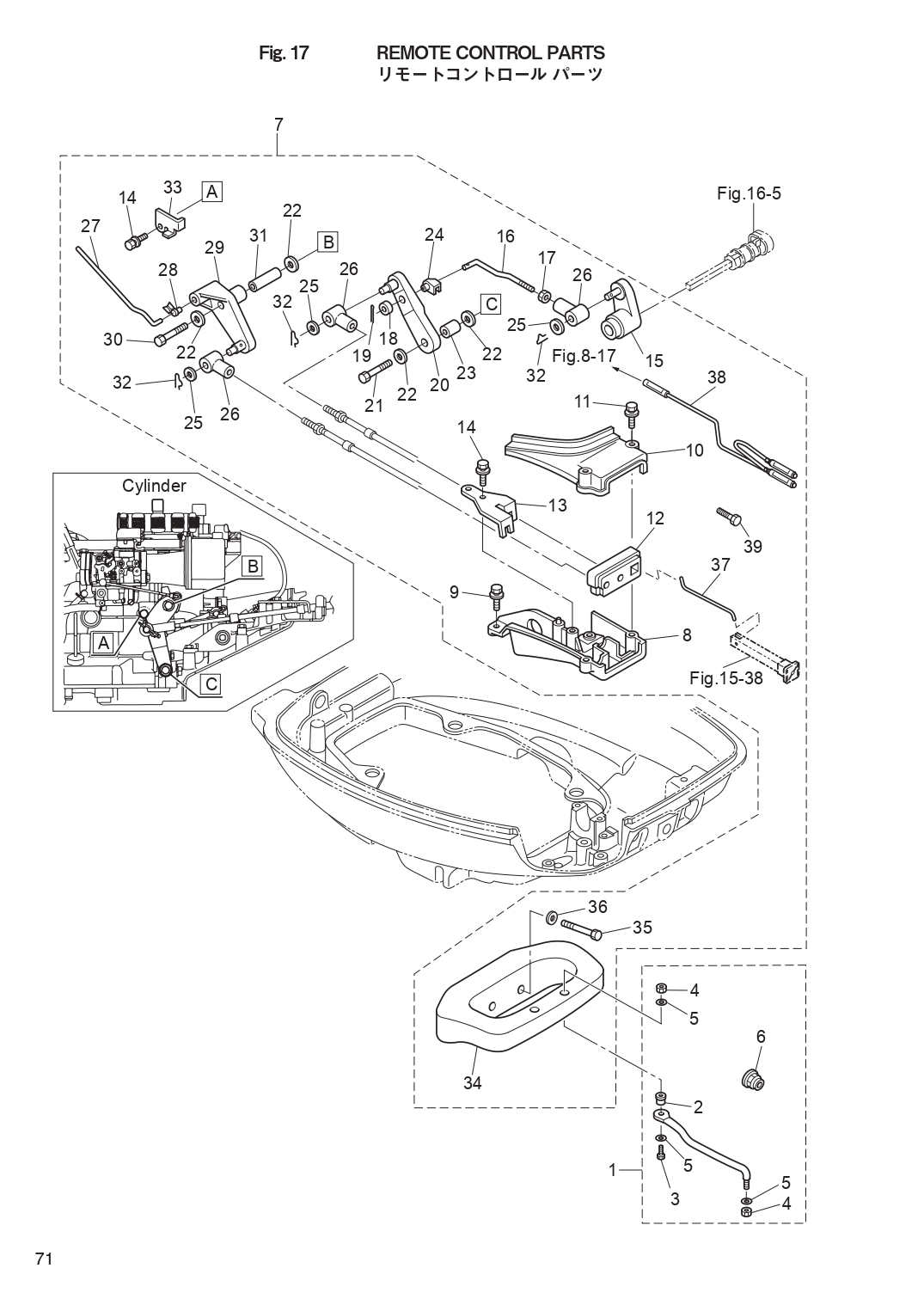

REMOTE CONTROL PARTS для Tohatsu MFS15D - 2017 года выпуска`
-
№АртикулНазвание
-
13E0-84905-0 DRAG LINK ASSY
for EP/EPT TypeDRAG LINK ASSY
for EP/EPT Type -
23E0-84914-0 * SPACER 9.6-19-13* SPACER 9.6-19-13
-
33E0-84917-0 * BOLT 3/8-50* BOLT 3/8-50
-
4353-84918-0 * NYLON NUT 3/8-24UNF* NYLON NUT 3/8-24UNF
-
5353-84916-0 * WASHER 9.6-18-2* WASHER 9.6-18-2
-
63F3-84908-0 * SEAL RING* SEAL RING
-
73SAQ83880-0 REMOTE CONTROL FITTING ASSY
for MF⇒MP TypeREMOTE CONTROL FITTING ASSY
for MF⇒MP Type -
83R3Q67482-0 * REMOTE CONTROL CABLE STAY* REMOTE CONTROL CABLE STAY
-
99101E3-5620 * BOLT* BOLT
-
103R3-67483-1 * REMOTE CONT CABLE STAY COVER* REMOTE CONT CABLE STAY COVER
-
113BJ-67485-0 * BOLT 6-35* BOLT 6-35
-
123BJ-83732-0 * GROMMET* GROMMET
-
133R3-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
14910103-5616 * BOLT
Throttle Lever Stopper Cable Bracket* BOLT
Throttle Lever Stopper Cable Bracket -
153R3-66128-0 * SHIFT ARM (REMOTE CONTROL)* SHIFT ARM (REMOTE CONTROL)
-
163BJ-66134-0 * SHIFT LEVER ROD* SHIFT LEVER ROD
-
17930103-0500 * NUT* NUT
-
183BJ-66138-0 * SPACER 5-9.5-5* SPACER 5-9.5-5
-
19951503-0212 * SPLIT PIN 2-12* SPLIT PIN 2-12
-
203R3-66129-0 * SHIFT LEVER (REMOTE CONTROL)* SHIFT LEVER (REMOTE CONTROL)
-
21910103-0625 * BOLT* BOLT
-
223C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
23353-76079-0 * COLLAR 6.2-9-9.3* COLLAR 6.2-9-9.3
-
243C8-63733-0 * ROD SNAP 5-3
Shift Lever* ROD SNAP 5-3
Shift Lever -
253AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
263B7-83715-2 * CABLE JOINT* CABLE JOINT
-
273R3-63709-0 * THROTTLE ROD* THROTTLE ROD
-
28346-67196-1 * ROD SNAP 3-B
Throttle Lever* ROD SNAP 3-B
Throttle Lever -
293R3-83910-0 * THROTTLE LEVER (REMOTE CONT)* THROTTLE LEVER (REMOTE CONT)
-
30910103-0645 * BOLT* BOLT
-
313R3-83913-1 * COLLAR 6.2-9-30.8* COLLAR 6.2-9-30.8
-
32951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
333BJ-83914-0 * THROTTLE LEVER STOPPER* THROTTLE LEVER STOPPER
-
343V5Q62001-0 * STEERING BRACKET* STEERING BRACKET
-
359161E3-1045 * BOLT* BOLT
-
369401E3-1000 * WASHER* WASHER
-
373BD-67192-0 * CHOKE ROD* CHOKE ROD
-
38369-83883-0 * SEPARATE CORD* SEPARATE CORD
-
39910103-0612 * BOLT* BOLT
