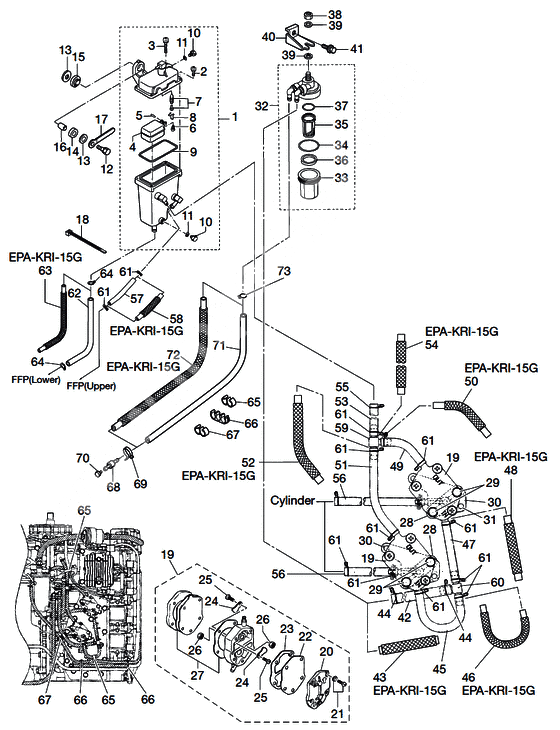

Vapor separator & fuel line для Tohatsu MD115A2 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3T5-10150-1 Vapor separator assy
    Vapor separator assy
  • 2
    922531-6414 Stud Bolt
    Stud Bolt
  • 3
    921503-6430 Stud Bolt
    Stud Bolt
  • 4
    3T5-03230-0 Float, Vapor Separater
    Float, Vapor Separater
  • 5
    3F3-03232-0 Arm Pin Float
    Arm Pin Float
  • 6
    921503-0408 Stud Bolt
    Stud Bolt
  • 7
    3R3-03239-0 Floato Valve Assy
    WITH VALVE PIN
    Floato Valve Assy
    WITH VALVE PIN
  • 8
    344-03244-0 Clip
    Clip
  • 9
    3T5-03235-0 O-Ring
    O-Ring
  • 10
    345-03292-0 Drain Screw
    Drain Screw
  • 11
    336-03293-0 O-Ring
    O-Ring
  • 12
    910103-6630 Bolt
    Bolt
  • 13
    346-67115-0 Washer
    Washer
  • 14
    346-67113-0 Mount Rubber
    Mount Rubber
  • 15
    3B7-06920-0 Mount Rubber, 8.5-14-2.5
    Mount Rubber, 8.5-14-2.5
  • 16
    346-67114-1 Spacer
    Spacer
  • 346-67114-0 Spacer
    Spacer
  • 17
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
  • 18
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 19
    356-04000-1 New part
    New part
  • 20
    334-04004-0 Fuel Cover
    Fuel Cover
  • 21
    9225F2-6528 Screw
    Screw
  • 922512-6528 Screw
    Screw
  • 22
    334-04005-0 New part
    New part
  • 23
    334-04007-0 Gasket B Diaphragm
    Gasket B Diaphragm
  • 24
    356-04044-0 Check Valve
    Check Valve
  • 25
    921722-0306 Stud Bolt
    Stud Bolt
  • 26
    930222-0300 Nut
    Nut
  • 27
    356-04030-0 New part
    New part
  • 28
    346-04901-1 Gasket
    Gasket
  • 346-04901-2 Gasket
    Gasket
  • 29
    910103-6640 Bolt
    Bolt
  • 30
    3T1-04100-0 Bracket fuel pump
    Bracket fuel pump
  • 31
    910103-5620 Bolt
    Bolt
  • 32
    3T1-02230-0 Fuel filter assy.
    Fuel filter assy.
  • 33
    3B7-02237-0 Cup
    Cup
  • 34
    3B7-02235-0 O-Ring A
    O-Ring A
  • 35
    3B7-02234-0 Filter
    Filter
  • 36
    3T5-02229-0 Float, Fuel Filter
    Float, Fuel Filter
  • 37
    3B7-02236-0 O???? b
    O???? b
  • 38
    930103-0800 Nut
    Nut
  • 39
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
  • 40
    3T1-02239-0 Filter plate
    Filter plate
  • 41
    910103-6614 Bolt
    Bolt
  • 42
    98AB-7-0270 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    FUEL FILTER - T-NIPPLE 98AB-701000
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    FUEL FILTER - T-NIPPLE 98AB-701000
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 43
    3HL-02145-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3HL-02170-0 Hose low permeation
    Hose low permeation
  • 44
    3C7-02215-0 Clip
    Clip
  • 45
    98AB-5-0140 Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 46
    3HK-02136-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3HL-02165-0 Hose low permeation
    Hose low permeation
  • 47
    98AB-5-0110 Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 48
    3KD-02135-0 Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 49
    98AB-5-0040 Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 50
    3HK-02135-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 51
    98AB-5-0140 Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - FUEL PUMP 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 52
    3HK-02136-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3HL-02165-0 Hose low permeation
    Hose low permeation
  • 53
    98AB-5-0100 Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - V.S.T 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    T-NIPPLE - V.S.T 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 54
    3KD-02136-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3HK-02166-0 Hose low permeation
    Hose low permeation
  • 55
    3AB-35143-0 Clip @ 9.5
    Clip @ 9.5
  • 56
    98AB-5-0140 Fuel pipe 5mm (1 ea.=1 meter)
    CYLINDER - FUEL PUMP 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    CYLINDER - FUEL PUMP 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 57
    98AB-5-0090 Fuel pipe 5mm (1 ea.=1 meter)
    FFP CASE (UPPER) - V. S. T. 98AB-501000
    Fuel pipe 5mm (1 ea.=1 meter)
    FFP CASE (UPPER) - V. S. T. 98AB-501000
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 58
    3HL-02135-0 Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3KD-02165-0 Fuel hose low permeation
    Fuel hose low permeation
  • 59
    394-70013-0 Pipu Joint T-type
    V. S. T . - FUEL PUMP
    Pipu Joint T-type
    V. S. T . - FUEL PUMP
  • 60
    3C7-02092-0 Соединение трубки
    FUEL FILTER - FUEL PUMP
    Соединение трубки
    FUEL FILTER - FUEL PUMP
  • 61
    338-02215-0 Clip
    Clip
  • 62
    98AB-7-0160 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    V. S. T. - FFP CASE 98AB-701000
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    V. S. T. - FFP CASE 98AB-701000
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 63
    3HK-02170-0 Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 64
    3C7-02215-0 Clip
    Clip
  • 65
    3T1-06915-0 Clamp
    Clamp
  • 66
    3U1-06915-0 Clamp
    Clamp
  • 67
    3T1-06917-0 Clamp (not available)
    Clamp (not available)
  • 68
    3T1-60018-0 Fuel hose nipple
    Fuel hose nipple
  • 69
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 70
    3T1-03813-0 Cap fuel hose nipple
    Cap fuel hose nipple
  • 71
    98AB70120-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    FUEL HOSE NIPPLE - FUEL FILTER 98AB-701000×2
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    FUEL HOSE NIPPLE - FUEL FILTER 98AB-701000×2
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 72
    3KD-02170-0 Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
    Fuel hose low permeation
    LOW PERMEATION PARTS (FOR USA MODEL)
  • 3KD-02170-1 Fuel hose low permeation
    Fuel hose low permeation
  • 73
    3C7-02215-0 Clip
    Clip
