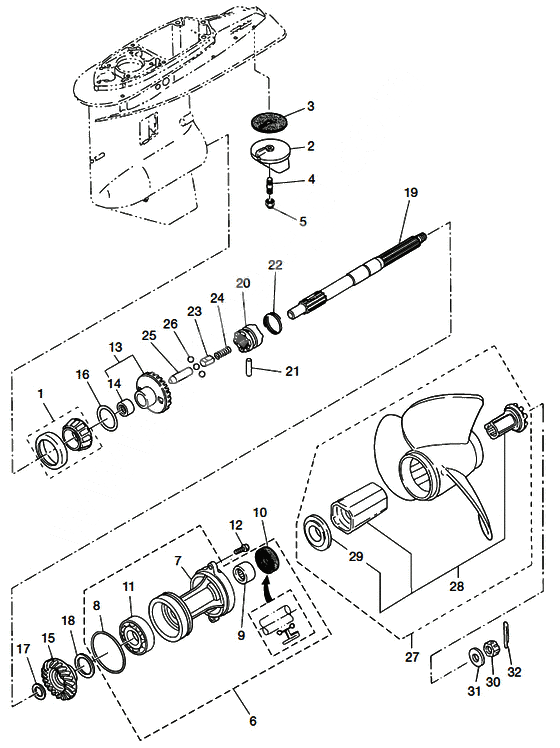

Gear case (propeller shaft) для Tohatsu MD115A2 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3C7-60215-0 Bearing, 30209
    Bearing, 30209
  • 2
    3B7-60217-1 Trim Tab
    Trim Tab
  • 3
    3B7-60219-0 Packing, Trim Tab
    Packing, Trim Tab
  • 4
    915303-0825 Stud Bolt
    Stud Bolt
  • 5
    930403-0800 Nylon Nut
    Nylon Nut
  • 6
    3B7Q87323-1 Propeller shaft housing assy (amb)
    Propeller shaft housing assy (amb)
  • 7
    3B7Q60101-1 Housing propeller shaft (amb)
    Housing propeller shaft (amb)
  • 8
    3B7-60103-0 O-Ring
    O-Ring
  • 9
    3B7-60211-0 Needle Bearing, 30-40-30
    Needle Bearing, 30-40-30
  • 10
    3B7-60111-0 Oil seal, 30-50-12
    Oil seal, 30-50-12
  • 11
    9601-0-6208 Ball bearing, 6208
    Ball bearing, 6208
  • 12
    3C7-60108-2 Bolt 8-30 precoated
    Bolt 8-30 precoated
  • 13
    3C7-64010-0 Bevel Gear A Ass'y
    Bevel Gear A Ass'y
  • 14
    3B7-64011-0 Needle Bearing, 25-32-26
    Needle Bearing, 25-32-26
  • 15
    3T1-64093-0 Bevel gear c (5 dog) reverse
    Bevel gear c (5 dog) reverse
  • 16
    3B7-64015-0 Shim, 47-57-0.15
    Shim, 47-57-0.15
  • 16
    3B7-64016-0 Shim, 47-57-0.1
    Shim, 47-57-0.1
  • 17
    3B7-64032-0 Washer, t=3.2
    Washer, t=3.2
  • 17
    3B7-64034-0 Washer, t=3.0
    Washer, t=3.0
  • 17
    3B7-64035-0 Washer, t=3.0
    Washer, t=3.0
  • 18
    3B7-64036-0 Shim , 42-50-0.15
    Shim , 42-50-0.15
  • 18
    3B7-64037-0 Shim, 42-50-0.1
    Shim, 42-50-0.1
  • 19
    3B7-64211-0 Propeller Shaft
    Propeller Shaft
  • 20
    3T1-64215-1 Clutch m60c-140a2 md70b-115a
    Clutch m60c-140a2 md70b-115a
  • 3T1-64215-2 Clutch m60c-140a2 md70b-115a
    Clutch m60c-140a2 md70b-115a
  • 21
    3B7-64218-0 Clutch Pin
    Clutch Pin
  • 22
    3B7-64219-1 Snap, Clutch Pin
    Snap, Clutch Pin
  • 23
    3T1-64222-0 Spring retainer l=30,5
    Spring retainer l=30,5
  • 24
    346-64221-0 Spring Clutch
    Spring Clutch
  • 25
    3T1-64223-0 Push Rod
    Push Rod
  • 26
    3T1-64224-0 Ball
    Ball
  • 27
    3T1B64523-0 Prop m-11 115tldi only (14 x 11 pitch)
    OPT
    Prop m-11 115tldi only (14 x 11 pitch)
    OPT
  • 27
    3T1B64527-0 Prop m-13 115tldi only (14.0 x 13 pitch)
    OPT
    Prop m-13 115tldi only (14.0 x 13 pitch)
    OPT
  • 27
    3T1B64532-0 Prop m-15 115tldi only (13.75 x 15 pitch)
    OPT
    Prop m-15 115tldi only (13.75 x 15 pitch)
    OPT
  • 27
    3T1B64534-0 Prop m-16 115tldi only (13.25 x 16 pitch)
    OPT
    Prop m-16 115tldi only (13.25 x 16 pitch)
    OPT
  • 27
    3T1B64536-0 Prop m-17 115tldi only (13.25 x 17 pitch)
    OPT
    Prop m-17 115tldi only (13.25 x 17 pitch)
    OPT
  • 27
    3T1B64541-0 Prop m-19 115tldi only (13.0 x 19 pitch)
    OPT
    Prop m-19 115tldi only (13.0 x 19 pitch)
    OPT
  • 27
    3T1B64545-0 Prop m-21, 115tldi only (12.75 x 21 pitch)
    OPT
    Prop m-21, 115tldi only (12.75 x 21 pitch)
    OPT
  • 28
    3T1-64238-0 Propeller hub kit md115 tldi
    OPT
    Propeller hub kit md115 tldi
    OPT
  • 29
    3E0-64235-0 Foward Thrust Washer
    OPT
    Foward Thrust Washer
    OPT
  • 30
    353-64121-0 Nut Propeller
    Nut Propeller
  • 31
    345-64124-0 Washer
    Washer
  • 32
    951503-0325 Split Pin
    Split Pin
