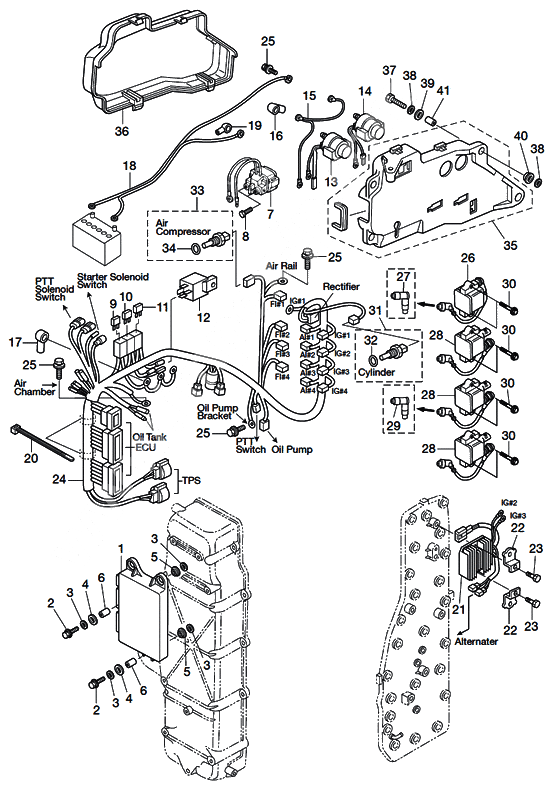

Electric parts (ecu - diagram) для Tohatsu MD115A2 - 2011 года выпуска
-
№АртикулНазвание
-
13HK-06401-0 Ecu (md115a2)Ecu (md115a2)
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
63T5-67114-0 Spacer, 6.2-9-16.6Spacer, 6.2-9-16.6
-
73H8-76040-0 Starter SolenoidStarter Solenoid
-
8910103-5610 BoltBolt
-
93T5-76249-0 ПредохранительПредохранитель
-
103Y9-76248-0 Fuse 25aFuse 25a
-
113T5-76246-0 ПредохранительПредохранитель
-
123T1-06330-0 RelayRelay
-
133AC-72580-0 Ptt solenoid switch inainPtt solenoid switch inain
-
143AC-72581-0 Ptt solenoid switchPtt solenoid switch
-
153T5-76142-1 Cord a solenoid switchCord a solenoid switch
-
3T5-76142-0 Cord a solenoid switchCord a solenoid switch
-
163A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
173A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
183B7-76120-2 Battery CordBattery Cord
-
193B7-76145-0 Terminal CapTerminal Cap
-
20369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
213T1-76060-2 RectifierRectifier
-
223T1-07233-1 Rectifier plateRectifier plate
-
233AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
243HK-76110-0 Cord assy a (d115a2)Cord assy a (d115a2)
-
25910103-5612 BoltBolt
-
263T1-06470-0 Ignition coil #1
#1Ignition coil #1
#1 -
273T1-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
283T1-06469-0 Ignition coil #2 #3 & #4
#2 #3 #4Ignition coil #2 #3 & #4
#2 #3 #4 -
293T1-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
30910103-7635 BoltBolt
-
313Y9-72514-0 Water Temperature SensorWater Temperature Sensor
-
323G9-66136-0 O-RingO-Ring
-
333Y9-72514-0 Water Temperature SensorWater Temperature Sensor
-
343G9-66136-0 O-RingO-Ring
-
353T1-72593-0 Bracket solenoid switch
WITH RUBBER PROTECTORBracket solenoid switch
WITH RUBBER PROTECTOR -
363T1-06902-0 Cover solenoid switch bracketCover solenoid switch bracket
-
37910103-6630 BoltBolt
-
383C8-66308-0 New partNew part
-
39346-67113-0 Mount RubberMount Rubber
-
403B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
41346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
