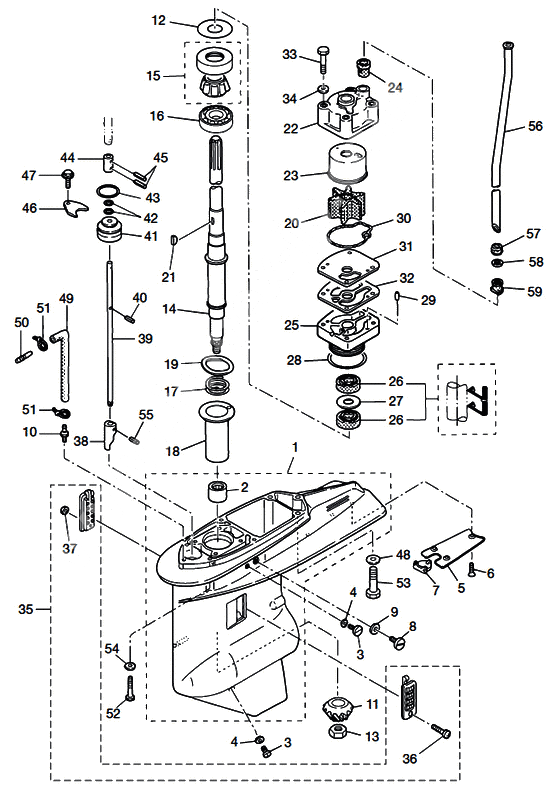

Gear case (drive shaft) для Tohatsu MD115A2 - 2011 года выпуска`
-
№АртикулНазвание
-
13C7Q60000-6 Gear case d70b~115Gear case d70b~115
-
23C7-60211-1 Needle Bearing 28.6-38.1-3Needle Bearing 28.6-38.1-3
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
53B7-60012-1 Plate, Gear CasePlate, Gear Case
-
69216E3-0614 ScrewScrew
-
73B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
83B7-60015-1 Water PlugWater Plug
-
93B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
103C7-60017-0 Nipple 6-1/8
OPT FOR SPEEDOMETERNipple 6-1/8
OPT FOR SPEEDOMETER -
113C7-64020-0 Bevel Gear BBevel Gear B
-
12353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
12353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
12353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
133B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
143C7-64302-3 Drive shaft l
FOR TRANSOM “L”Drive shaft l
FOR TRANSOM “L” -
143C7-64303-3 Drive Shaft UL
FOR TRANSOM “UL”Drive Shaft UL
FOR TRANSOM “UL” -
153C7-60213-0 Bearing 0506Bearing 0506
-
163C7-60214-0 Bearing 16007Bearing 16007
-
173C7-64327-1 Spring Drive ShaftSpring Drive Shaft
-
183C7-64328-0 Guide Drive Shaft SpringGuide Drive Shaft Spring
-
193C7-60210-0 Wave Washer D=47.2Wave Washer D=47.2
-
203C7-65021-1 Impeller water pumpImpeller water pump
-
213B7-65022-0 Key, water pump impellerKey, water pump impeller
-
223C7-65016-0 Water Pump CaseWater Pump Case
-
233C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
243C7-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
253C7-65017-2 Pump Case LowerPump Case Lower
-
263C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
27346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
283B7-65015-0 O-RingO-Ring
-
29334-65012-0 СтопорСтопор
-
303C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
313C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
323C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
339161E3-0885 BoltBolt
-
34940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
353C7-60205-1 Water strainer (set of 2)Water strainer (set of 2)
-
36921503-0445 Stud BoltStud Bolt
-
37930403-0400 Nylon NutNylon Nut
-
383B7-66011-1 Clutch CamClutch Cam
-
393B7-66013-1 Cam Rod L
FOR TRANSOM “L”Cam Rod L
FOR TRANSOM “L” -
393B7-66014-1 Cam Rod UL
FOR TRANSOM “UL”Cam Rod UL
FOR TRANSOM “UL” -
40951403-3510 New partNew part
-
413B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
42345-66021-0 O-RingO-Ring
-
433B7-66023-0 O-RingO-Ring
-
44353-66241-1 New partNew part
-
45951403-3516 New partNew part
-
46353-66024-0 StopperStopper
-
47910103-6612 BoltBolt
-
489402E3-1000 Washer
FOR TRANSOM “UL”Washer
FOR TRANSOM “UL” -
4998AL-4-0800 Lube pipe (1 ea.=1m) must use 393011600m check valve
OPT FOR TRANSOM “L” 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
OPT FOR TRANSOM “L” 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
4998AL-4-0920 Lube pipe (1 ea.=1m) must use 393011600m check valve
OPT FOR TRANSOM “UL” 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
OPT FOR TRANSOM “UL” 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
503C7-60018-0 Золотник
OPTЗолотник
OPT -
51353-84398-0 Band Lead WireBand Lead Wire
-
523T1-60001-1 Bolt 8-35Bolt 8-35
-
533B7-60001-5 BoltBolt
-
549401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
55951403-3516 New partNew part
-
563C7-65110-0 Water Pipe L
FOR TRANSOM “L”Water Pipe L
FOR TRANSOM “L” -
563C7-65120-0 Water Pipe UL
FOR TRANSOM “UL”Water Pipe UL
FOR TRANSOM “UL” -
573C7-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
58345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
593C7-65204-0 Locking Rubber Water PipeLocking Rubber Water Pipe
