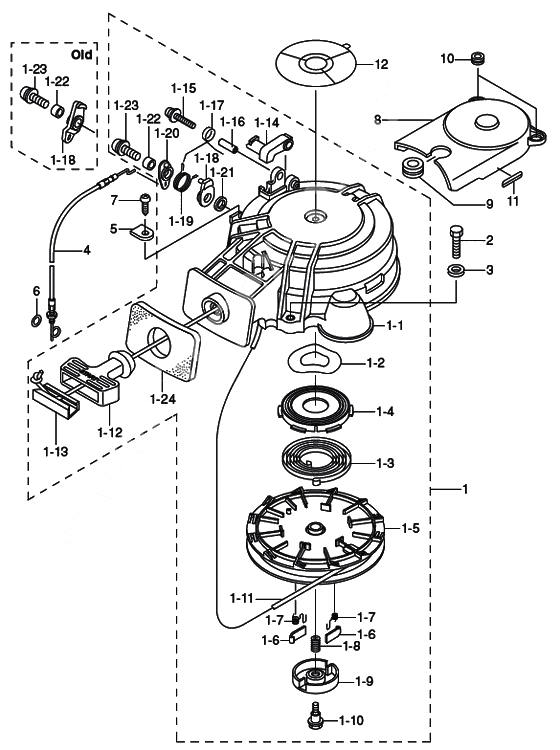

Recoil starter для Tohatsu MFS9.8A3 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3Y0-05090-0 Recoil starter assy.
    NEW / # 072863XF~
    Recoil starter assy.
    NEW / # 072863XF~
  • 3Y0-05090-1 Recoil starter assy.
    Recoil starter assy.
  • 1
    3AA-05090-1 Recoil starter
    OLD / # 023322XD~# 067647XF
    Recoil starter
    OLD / # 023322XD~# 067647XF
  • 1-1
    3AA-05098-1 Starter Case
    # 023322XD~
    Starter Case
    # 023322XD~
  • 1-10
    3R1-05138-1 Bolt, Starter Shaft
    OR 3B2-05138-0
    Bolt, Starter Shaft
    OR 3B2-05138-0
  • 1-11
    3AA-05013-0 Stater Rope
    ø4.5-1620 / OR 3B2-05013-0
    Stater Rope
    ø4.5-1620 / OR 3B2-05013-0
  • 1-12
    3AA-05019-0 Stater Handle
    # 023322XD~
    Stater Handle
    # 023322XD~
  • 1-13
    3R1-05131-0 Rope anchor
    Rope anchor
  • 1-14
    3AA-05252-0 Stater Lock
    # 023322XD~
    Stater Lock
    # 023322XD~
  • 1-15
    921503-5430 Stud Bolt
    Stud Bolt
  • 1-16
    3R1-05255-0 Coller Starter Lock Shaft
    OR 338-05255-0
    Coller Starter Lock Shaft
    OR 338-05255-0
  • 1-17
    3R1-05216-0 Spring, Starter Lock
    OR 338-05216-0
    Spring, Starter Lock
    OR 338-05216-0
  • 1-18
    3Y0-05253-0 Cam starter lock
    NEW / # 072863X4~
    Cam starter lock
    NEW / # 072863X4~
  • 1-18
    3AA-05253-0 Cam stater lock
    OLD / # 023322XD~# 067647XF
    Cam stater lock
    OLD / # 023322XD~# 067647XF
  • 1-19
    3Y0-05258-0 Spring starter lock cam
    NEW / # 072863XF~
    Spring starter lock cam
    NEW / # 072863XF~
  • 1-2
    3V1-05259-0 Washer
    Washer
  • 1-20
    3Y0-05226-0 Lever starter lock
    NEW / # 072863XF~
    Lever starter lock
    NEW / # 072863XF~
  • 1-21
    940103-0600 Washer
    Washer
  • 1-22
    3R0-06303-1 Collar
    NEW (OR 3R0-06303-0) / # 072863XF~
    Collar
    NEW (OR 3R0-06303-0) / # 072863XF~
  • 3R0-06303-0 Collar
    Collar
  • 1-22
    3R1-05215-0 collar,6.1-8-6.5
    OLD / ~# 067647XF
    collar,6.1-8-6.5
    OLD / ~# 067647XF
  • 1-23
    921503-5625 Stud Bolt
    NEW / # 072863XF~
    Stud Bolt
    NEW / # 072863XF~
  • 1-23
    921503-7616 Stud Bolt
    OLD / ~# 067647XF
    Stud Bolt
    OLD / ~# 067647XF
  • 1-24
    3AA-67503-0 Seal Ruber,Stater
    Seal Ruber,Stater
  • 1-3
    3AA-05004-0 Spring Washer
    T=0.67 / # 023322XD~
    Spring Washer
    T=0.67 / # 023322XD~
  • 1-4
    3R1-05125-0 Case, Stater Spring
    Case, Stater Spring
  • 1-5
    3V1-05104-1 Reel
    Reel
  • 1-6
    3R1-05003-2 Ratchet
    OR 3R1-05003-1 & 3B2-05003-0
    Ratchet
    OR 3R1-05003-1 & 3B2-05003-0
  • 3R1-05003-1 Ratchet
    Ratchet
  • 1-7
    3R1-05012-0 Return Spring
    Return Spring
  • 1-8
    3R1-05007-0 Spring Washer
    OR 369-05007-0
    Spring Washer
    OR 369-05007-0
  • 1-9
    3R1-05006-2 Friction Plate
    OR 3R1-05006-1 & 3B2-05006-0
    Friction Plate
    OR 3R1-05006-1 & 3B2-05006-0
  • 3R1-05006-1 Friction Plate
    Friction Plate
  • 2
    9101E3-0625 Bolt
    OR 910113-0625
    Bolt
    OR 910113-0625
  • 910103-0625 Bolt
    Bolt
  • 3
    3R0-66308-0 Washer
    FOR MF
    Washer
    FOR MF
  • 4
    3Y0-05207-0 Wire starter lock
    NEW / # 072863XF~
    Wire starter lock
    NEW / # 072863XF~
  • 5
    332-66033-0 Retainer Cam Shift
    Retainer Cam Shift
  • 6
    3C7-03271-1 O-ring 1.5-2.5
    OR 3C7-03271-0
    O-ring 1.5-2.5
    OR 3C7-03271-0
  • 3C7-03271-2 O-ring 1.5-2.5
    O-ring 1.5-2.5
  • 7
    3V1-05913-0 Tapping Screw
    OLD PART NO. 3V1-05208-0
    Tapping Screw
    OLD PART NO. 3V1-05208-0
  • 8
    3V1-06308-0 Cover Belt
    Cover Belt
  • 9
    3V1-06302-0 Rubber Mount
    Rubber Mount
  • 10
    172-36008-0 Grommet
    Grommet
  • 11
    3H6-72026-0 Label, Spark Plug
    Label, Spark Plug
  • 12
    3R0-72181-0 Caution Label B
    Caution Label B
