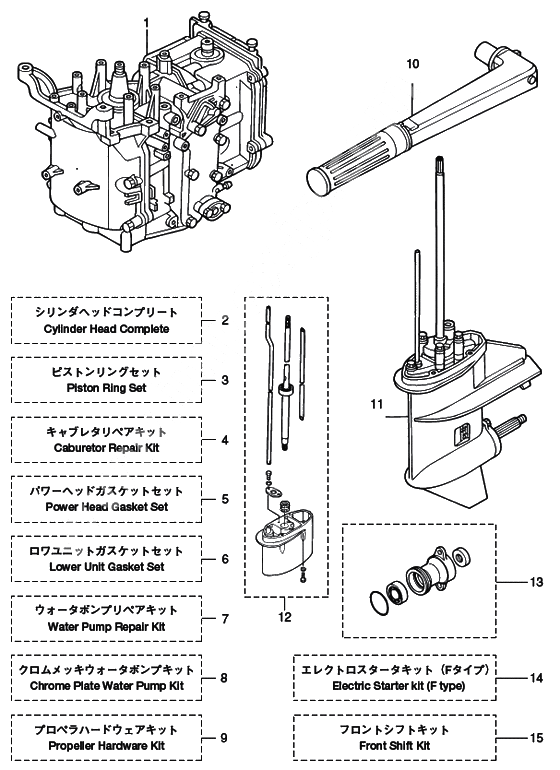

Assembly kits для Tohatsu MFS9.8A3 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3V1B87090-5 Short block (8-9.8/4-st)
    OLD PART NO. 3V1B87100-1
    Short block (8-9.8/4-st)
    OLD PART NO. 3V1B87100-1
  • 3V1B87090-7 Short block (8-9.8/4-st)
    Short block (8-9.8/4-st)
  • 1
    9701-1-1103 Spark plug (dcpr6e)
    NGK: DCPR6E
    Spark plug (dcpr6e)
    NGK: DCPR6E
  • 1
    3V1-01303-0 Gasket engine base
    Gasket engine base
  • 2
    3V1B01000-3 Cylinder head assy mfs8/9.8a3
    FIG.3 / WITH CAMSHAFT & OIL PUMP & VALVE
    Cylinder head assy mfs8/9.8a3
    FIG.3 / WITH CAMSHAFT & OIL PUMP & VALVE
  • 3
    3V1-87123-0 Кольца поршневые
    Кольца поршневые
  • 3
    3V1-00011-0 Piston Ring TOP
    Piston Ring TOP
  • 3
    3V1-00012-0 Piston Ring 2nd
    Piston Ring 2nd
  • 3
    3V1-00013-0 Piston Ring Oil
    Piston Ring Oil
  • 3
    3V1-87124-0 Кольца поршневые
    Кольца поршневые
  • 3
    3V1-00014-0 Piston Ring 0.5mm O/S
    Piston Ring 0.5mm O/S
  • 3
    3V1-00015-0 Piston Ring 2nd (0.5mm O/S)
    Piston Ring 2nd (0.5mm O/S)
  • 3
    3V1-00016-0 Piston Ring Oil 0.5mm O/S
    Piston Ring Oil 0.5mm O/S
  • 4
    3V1-87122-0 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 4
    3V1-03116-0 O-Ring
    FIG. 5-1-5
    O-Ring
    FIG. 5-1-5
  • 4
    3V1-03147-1 Float Valve
    FIG. 5-1-8
    Float Valve
    FIG. 5-1-8
  • 4
    3C8-03126-0 Float Arm Pin
    FIG. 5-1-9
    Float Arm Pin
    FIG. 5-1-9
  • 4
    3C8-03125-0 Float
    FIG. 5-1-10
    Float
    FIG. 5-1-10
  • 4
    921703-0406 Stud Bolt
    FIG. 5-1-11
    Stud Bolt
    FIG. 5-1-11
  • 4
    3V1-03121-0 Gasket,float Chamber
    FIG. 5-1-15
    Gasket,float Chamber
    FIG. 5-1-15
  • 4
    922503-6412 Stud Bolt
    FIG. 5-1-16
    Stud Bolt
    FIG. 5-1-16
  • 4
    3V1-03193-0 O-Ring
    FIG. 5-1-18
    O-Ring
    FIG. 5-1-18
  • 4
    3V1-03182-0 Gasket,Cabretor Cover
    FIG. 5-1-20
    Gasket,Cabretor Cover
    FIG. 5-1-20
  • 4
    922503-6410 Stud Bolt
    FIG. 5-1-21
    Stud Bolt
    FIG. 5-1-21
  • 5
    3V1-87121-0 Power Head Gasket Set
    Power Head Gasket Set
  • 5
    3V1-01005-0 Cykinder Head Gasket
    Cykinder Head Gasket
  • 5
    3V1-01024-0 Gasket Headcover
    Gasket Headcover
  • 5
    3R0-07422-0 New part
    FILLER CAP
    New part
    FILLER CAP
  • 5
    3V1-02305-0 Exhaust Cover Gasket
    Exhaust Cover Gasket
  • 5
    346-01032-0 New part
    New part
  • 5
    3R3-01144-0 O-Ring
    O-Ring
  • 5
    3V1-01303-0 Gasket engine base
    Gasket engine base
  • 5
    3V1-00121-0 Oil Seal 30-45-8
    CRANKSHAFT
    Oil Seal 30-45-8
    CRANKSHAFT
  • 5
    3V1-02104-0 O-Ring
    O-Ring
  • 5
    3V1-02011-0 Caburetor Gasket
    Caburetor Gasket
  • 5
    3V1-02012-0 O-Ring
    CARBURETOR
    O-Ring
    CARBURETOR
  • 5
    3H6-07422-0 New part
    FUEL PUMP
    New part
    FUEL PUMP
  • 5
    3V1-07653-0 Gasket,Oil Pump
    Gasket,Oil Pump
  • 5
    3H8-07025-0 Oil Seal,18-35-8
    CAMSHAFT
    Oil Seal,18-35-8
    CAMSHAFT
  • 5
    3B2-01215-0 Oil seal 12-28-5
    DRIVE SHAFT
    Oil seal 12-28-5
    DRIVE SHAFT
  • 6
    3B2-87321-3 Lower unit gasket kit 8/9.8b
    Lower unit gasket kit 8/9.8b
  • 3B2-87321-4 Lower unit gasket kit 8/9.8b
    Lower unit gasket kit 8/9.8b
  • 6
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 6
    345-65015-0 O-Ring
    PROPELLER SHAFT
    O-Ring
    PROPELLER SHAFT
  • 6
    369-60111-0 Oil Seal
    PROPELLER SHAFT
    Oil Seal
    PROPELLER SHAFT
  • 6
    3B2-65018-1 Gasket
    Gasket
  • 3B2-65018-2 Gasket
    Gasket
  • 6
    3B2-65029-1 Gasket
    Gasket
  • 3B2-65029-2 Gasket
    Gasket
  • 6
    3B2-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 6
    309-60111-0 Oil Seal 12-24-8
    PUMP CASE (LOWER)
    Oil Seal 12-24-8
    PUMP CASE (LOWER)
  • 6
    369-66021-1 O?????2.5-4.9
    CAM ROD BUSHING
    O?????2.5-4.9
    CAM ROD BUSHING
  • 6
    332-66032-0 O?????2.4-15.4
    CAM ROD BUSHING
    O?????2.4-15.4
    CAM ROD BUSHING
  • 6
    3B2-61012-2 Gasket driveshaft housing
    DO NOT USE FOR 4-STROKE ENGINE
    Gasket driveshaft housing
    DO NOT USE FOR 4-STROKE ENGINE
  • 6
    3B2-02312-2 Gasket
    DO NOT USE FOR 4-STROKE ENGINE
    Gasket
    DO NOT USE FOR 4-STROKE ENGINE
  • 7
    3B2-87322-1 ウォ-タ-ポンプリペアキット
    ウォ-タ-ポンプリペアキット
  • 7
    3B2-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 7
    3B2-65022-0 New part
    New part
  • 7
    3B2-65011-0 New part
    New part
  • 7
    3B2-65018-1 Gasket
    Gasket
  • 3B2-65018-2 Gasket
    Gasket
  • 7
    3B2-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 7
    3B2-65029-1 Gasket
    Gasket
  • 3B2-65029-2 Gasket
    Gasket
  • 7
    3B2-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 7
    9161E3-0650 Bolt
    OR 916113-0650
    Bolt
    OR 916113-0650
  • 7
    940103-0600 Washer
    Washer
  • 8
    3B2-65231-1 Water pump repair kit chrome 8 hp
    Water pump repair kit chrome 8 hp
  • 3B2-65231-2 Water pump repair kit chrome 8 hp
    Water pump repair kit chrome 8 hp
  • 8
    3B2-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 8
    3B2-65238-0 Liner chrome plated water pump case
    Liner chrome plated water pump case
  • 8
    3B2-65239-0 Guide plate chrome plated water pump
    Guide plate chrome plated water pump
  • 8
    3B2-65018-1 Gasket
    Gasket
  • 3B2-65018-2 Gasket
    Gasket
  • 8
    3B2-65029-1 Gasket
    Gasket
  • 3B2-65029-2 Gasket
    Gasket
  • 9
    3V1-87326-0 Propeller Hardwear Kit
    Propeller Hardwear Kit
  • 9
    3B2-64230-1 Thrust holder ass'y
    Thrust holder ass'y
  • 9
    369-64124-0 Washer
    Washer
  • 9
    369-64121-0 Nut Propeller
    Nut Propeller
  • 9
    951503-0318 New part
    New part
  • 10
    3V1Q63003-3 Handle assy (amb)
    FOR MF & EF
    Handle assy (amb)
    FOR MF & EF
  • 3V1Q63003-4 Handle assy (amb)
    Handle assy (amb)
  • 10
    3V2Q63003-0 Tiller handle pt assy (eft)
    FOR EFT
    Tiller handle pt assy (eft)
    FOR EFT
  • 10
    3V1Q63011-2 Tiller handle (amb)
    FOR MF & EF/EFT
    Tiller handle (amb)
    FOR MF & EF/EFT
  • 3V1Q63011-3 Tiller handle (amb)
    Tiller handle (amb)
  • 10
    3R3-63012-0 Grip
    FOR MF & EF/EFT
    Grip
    FOR MF & EF/EFT
  • 10
    3H6-63048-0 Rubber, Shrottle Shaft
    FOR MF & EF/EFT
    Rubber, Shrottle Shaft
    FOR MF & EF/EFT
  • 10
    3H6-63510-0 Bushing
    FOR MF & EF/'EFT
    Bushing
    FOR MF & EF/'EFT
  • 10
    920803-0518 Stud Bolt
    FOR MF & EF/EFT
    Stud Bolt
    FOR MF & EF/EFT
  • 10
    3B2-63063-0 Supporter Throttle Shaft
    FOR MF & EF/EFT
    Supporter Throttle Shaft
    FOR MF & EF/EFT
  • 10
    9215E3-0612 Screw
    OR 921513-0612 / FOR MF & EF/EFT
    Screw
    OR 921513-0612 / FOR MF & EF/EFT
  • 921503-0612 Screw
    Screw
  • 10
    3V1-63035-1 Friction Piece
    FOR MF & EF/EFT
    Friction Piece
    FOR MF & EF/EFT
  • 10
    3V1-63077-0 Adjusting Nut
    FOR MF & EF/EFT
    Adjusting Nut
    FOR MF & EF/EFT
  • 10
    3V1-63036-0 Spring Washer
    FOR MF & EF/EFT
    Spring Washer
    FOR MF & EF/EFT
  • 10
    9101E3-0625 Bolt
    OR 921513-0612 / FOR MF & EF/EFT
    Bolt
    OR 921513-0612 / FOR MF & EF/EFT
  • 910103-0625 Bolt
    Bolt
  • 10
    3V9-72019-0 Label,Throttle
    FOR MF & EF/EFT
    Label,Throttle
    FOR MF & EF/EFT
  • 10
    3V1-63041-0 Throttle Shaft
    FOR MF & EF/EFT
    Throttle Shaft
    FOR MF & EF/EFT
  • 10
    350-67154-0 New part
    FOR MF & EF/EFT
    New part
    FOR MF & EF/EFT
  • 10
    3V1-76032-0 Switch box
    FIG 16-20 / FOR EFT
    Switch box
    FIG 16-20 / FOR EFT
  • 10
    9215E3-0516 Screw
    FIG 16-21 / FOR EFT
    Screw
    FIG 16-21 / FOR EFT
  • 921503-0516 Screw
    Screw
  • 10
    3V1-72615-0 Ptt switch assy
    FIG 16-22 / FOR EFT
    Ptt switch assy
    FIG 16-22 / FOR EFT
  • 10
    336-06973-0 Clamp Lead Wire
    FIG 16-23 / FOR EFT
    Clamp Lead Wire
    FIG 16-23 / FOR EFT
  • 10
    9215E3-0512 Screw
    FIG 16-24 / FOR EFT
    Screw
    FIG 16-24 / FOR EFT
  • 921503-0512 Screw
    Screw
  • 11
    3V1Q87301-3 Lower unit assy s (amb)
    FOR TRANSOM S
    Lower unit assy s (amb)
    FOR TRANSOM S
  • 3V1Q87301-5 Lower unit assy s (amb)
    Lower unit assy s (amb)
  • 11
    3V1Q87302-3 Lower unit assy l (amb)
    FOR TRANSOM L
    Lower unit assy l (amb)
    FOR TRANSOM L
  • 3V1Q87302-5 Lower unit assy l (amb)
    Lower unit assy l (amb)
  • 12
    3V1Q87314-4 Extension housing kit ul (amb)
    FOR TRANSOM UL
    Extension housing kit ul (amb)
    FOR TRANSOM UL
  • 12
    3B2Q61110-2 Extension housing ul (amb)
    Extension housing ul (amb)
  • 12
    3V2-60001-0 Bolt 6-35 precoated
    Bolt 6-35 precoated
  • 12
    3B2-60003-1 Bushing Drive Shaft Housing
    Bushing Drive Shaft Housing
  • 12
    3V1-64332-0 Stopoer,Bushing
    Stopoer,Bushing
  • 12
    9101E3-5612 Bolt & washer
    OR 910113-5612
    Bolt & washer
    OR 910113-5612
  • 12
    3V1-64309-1 Drive Shaft UL
    Drive Shaft UL
  • 12
    3V1-66014-0 Cam Rod(UL)
    Cam Rod(UL)
  • 12
    3V1-65120-0 Труба водная
    Труба водная
  • 13
    3B2Q60100-0 Propeller shaft housing assy.
    Propeller shaft housing assy.
  • 3B2Q60100-1 Propeller shaft housing assy.
    Propeller shaft housing assy.
  • 14
    3V2-76300-2 Electric start kit 8/9.8a2 a3 (f type)
    OR 3V2-76300-0 / # 031096XD~
    Electric start kit 8/9.8a2 a3 (f type)
    OR 3V2-76300-0 / # 031096XD~
  • 3V2-76300-3 Electric start kit 8/9.8a2 a3 (f type)
    Electric start kit 8/9.8a2 a3 (f type)
  • 14
    3AA-06091-0 Flywheel Cap
    FIG 8-1 / WITH RING GEAR
    Flywheel Cap
    FIG 8-1 / WITH RING GEAR
  • 14
    3AA-06023-0 Alternator Ass'y
    FIG 8-6
    Alternator Ass'y
    FIG 8-6
  • 14
    910103-5630 Bolt
    FIG 8-7
    Bolt
    FIG 8-7
  • 14
    3V1-06900-1 Electric bracket
    FIG 8-25 / OR 3V1-06900-0
    Electric bracket
    FIG 8-25 / OR 3V1-06900-0
  • 3V1-06900-0 Electric bracket
    Electric bracket
  • 14
    3T5-06920-0 Mount Rubber
    FIG 8-26
    Mount Rubber
    FIG 8-26
  • 14
    3R0-66308-0 Washer
    FIG 8-27 / OR 3C8-66308-0
    Washer
    FIG 8-27 / OR 3C8-66308-0
  • 14
    3B7-06305-0 Mount Rubber, 9-16-4.3
    FIG 8-28
    Mount Rubber, 9-16-4.3
    FIG 8-28
  • 14
    3A0-76079-0 Collar, 6.2-9-7.5
    FIG 8-29
    Collar, 6.2-9-7.5
    FIG 8-29
  • 14
    9101E3-0620 Bolt
    FIG 8-30 / OR 910113-0620
    Bolt
    FIG 8-30 / OR 910113-0620
  • 910103-0620 Bolt
    Bolt
  • 14
    3AA-76010-0 Starter Motor Ass'y
    FIG 9-1
    Starter Motor Ass'y
    FIG 9-1
  • 14
    9161F4-0830 Bolt
    FIG 9-2 / OR 916114-0830
    Bolt
    FIG 9-2 / OR 916114-0830
  • 916114-0830 Bolt
    Bolt
  • 14
    9401E3-0800 Washer
    FIG 9-3 / OR 940113-0800
    Washer
    FIG 9-3 / OR 940113-0800
  • 940103-0800 Washer
    Washer
  • 14
    3V1-76011-1 Bracket starter motor
    FIG 9-4 / OR 3V1-76011-0
    Bracket starter motor
    FIG 9-4 / OR 3V1-76011-0
  • 3V1-76011-0 Bracket starter motor
    Bracket starter motor
  • 14
    3H8-76040-0 Starter Solenoid
    FIG 9-5
    Starter Solenoid
    FIG 9-5
  • 14
    3AA-76065-0 Rectifire Complete
    FIG 9-6
    Rectifire Complete
    FIG 9-6
  • 14
    910103-5616 Bolt
    FIG 9-7
    Bolt
    FIG 9-7
  • 14
    3AC-76120-0 Battery cable +/- (new style) 8.2 ft.
    FIG 9-8
    Battery cable +/- (new style) 8.2 ft.
    FIG 9-8
  • 14
    910103-5610 Bolt
    FIG 9-9
    Bolt
    FIG 9-9
  • 14
    3AA-76145-0 Terminal Cap
    FIG 9-10
    Terminal Cap
    FIG 9-10
  • 14
    3B2-76147-2 Starter cable
    FIG 9-11 / L=200
    Starter cable
    FIG 9-11 / L=200
  • 3B2-76147-1 Starter cable
    Starter cable
  • 14
    3V1-76148-0 Spiral Tube Protector
    FIG 9-12 / STARTER CABLE ø 10-100
    Spiral Tube Protector
    FIG 9-12 / STARTER CABLE ø 10-100
  • 14
    3Y0-76145-0 Terminal Cap
    FIG 9-13
    Terminal Cap
    FIG 9-13
  • 14
    3Y1-76145-0 Terminal Cap
    FIG 9-14
    Terminal Cap
    FIG 9-14
  • 14
    3V1-76066-0 Fuse Wire
    FIG 9-15 / L=185
    Fuse Wire
    FIG 9-15 / L=185
  • 14
    3R0-76064-0 Stay,Fuse Holder
    FIG 9-16
    Stay,Fuse Holder
    FIG 9-16
  • 14
    3AA-06281-0 Hplder Cable Terminal
    FIG 9-17
    Hplder Cable Terminal
    FIG 9-17
  • 14
    3V1-06284-1 Stay terminal holder
    FIG 9-18 / OR 3V1-06284-0
    Stay terminal holder
    FIG 9-18 / OR 3V1-06284-0
  • 3V1-06284-0 Stay terminal holder
    Stay terminal holder
  • 14
    174-35012-0 Collar 6-8-6
    FIG 9-19
    Collar 6-8-6
    FIG 9-19
  • 14
    9101E3-5612 Bolt & washer
    FIG 9-20 / OR 910113-5612
    Bolt & washer
    FIG 9-20 / OR 910113-5612
  • 14
    9101E3-5616 Bolt & washer
    FIG 9-21 / OR 910113-5616
    Bolt & washer
    FIG 9-21 / OR 910113-5616
  • 14
    3AA-06902-0 Cover Terminal Holder
    FIG 9-22
    Cover Terminal Holder
    FIG 9-22
  • 14
    398-76080-0 Neutral Switch Ass'y
    FIG 9-24
    Neutral Switch Ass'y
    FIG 9-24
  • 14
    398-76083-0 Actuator Neutral Switch
    FIG 9-25
    Actuator Neutral Switch
    FIG 9-25
  • 14
    3AA-76026-0 Main Switch
    FIG 17-27 / OR 3B2-76026-1
    Main Switch
    FIG 17-27 / OR 3B2-76026-1
  • 15
    3V1Q80404-0 Front shift kit f8a a2 a3/9.8a a2 a3
    Front shift kit f8a a2 a3/9.8a a2 a3
  • 15
    3Y3-66110-0 Shift lever f8/9.8a3 (amb)
    Shift lever f8/9.8a3 (amb)
  • 15
    9101E3-0625 Bolt
    Bolt
  • 910103-0625 Bolt
    Bolt
  • 15
    3H6-63619-1 Collar, Bracket
    Collar, Bracket
  • 15
    346-67115-0 Washer
    Washer
  • 15
    3Y3Q67480-0 Bracket shift lever (amb)
    Bracket shift lever (amb)
  • 15
    9101E3-5625 Bolt & washer
    Bolt & washer
  • 15
    9301E3-0600 Nut
    Nut
  • 930103-0600 Nut
    Nut
  • 15
    3Y3-66134-0 Rod shift lever (amb)
    Rod shift lever (amb)
  • 15
    3R0-83715-0 Cable Joint
    Cable Joint
  • 15
    930103-0500 Nut
    Nut
  • 15
    3AA-83719-0 Washer
    Washer
  • 15
    951603-0800 R-Pin
    R-Pin
  • 15
    3AA-66135-1 Shaft shift lever (amb)
    Shaft shift lever (amb)
  • 15
    3Y3-63621-0 Grommet
    Grommet
  • 15
    3Y3-67192-0 Choke Rod
    Choke Rod
  • 15
    3Y3-67578-0 Shift decal
    Shift decal

Все узлы модели:
