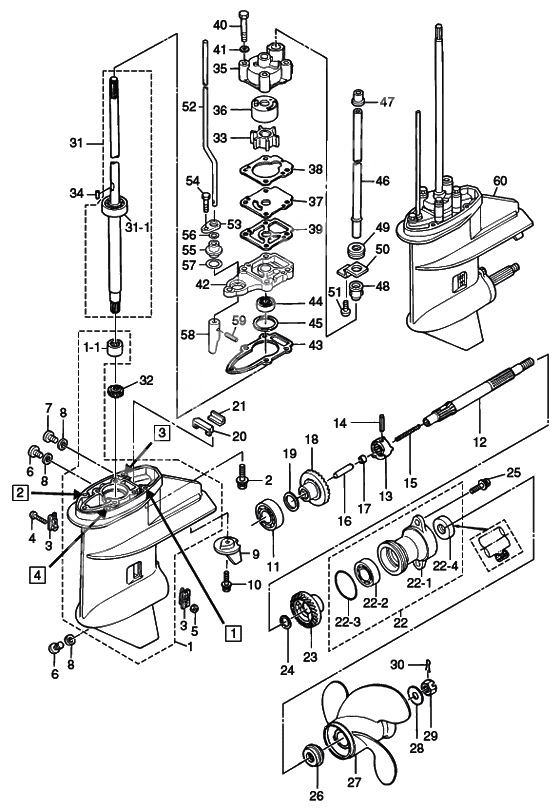

Lower unit для Tohatsu MFS9.8A3 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3AAQ60000-0 Gear case assy (amb)
    # 010322XD~
    Gear case assy (amb)
    # 010322XD~
  • 1-1
    3V1-60211-0 Roller Bearing
    Roller Bearing
  • 2
    3V1-60001-1 Bolt 6-35 precoated
    OR 3V2-60001-0
    Bolt 6-35 precoated
    OR 3V2-60001-0
  • 3V2-60001-0 Bolt 6-35 precoated
    Bolt 6-35 precoated
  • 3
    3AA-60206-0 Water Strainer
    W=17 / MARK A / # 010322XD~
    Water Strainer
    W=17 / MARK A / # 010322XD~
  • 4
    921503-0430 Stud Bolt
    Stud Bolt
  • 5
    930403-0400 Nylon Nut
    Nylon Nut
  • 6
    332-60005-2 Oil Plug Water Plug
    Oil Plug Water Plug
  • 7
    332-60005-2 Oil Plug Water Plug
    Oil Plug Water Plug
  • 8
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 9
    3V1-60217-0 Trim Tab
    Trim Tab
  • 10
    910103-5620 Bolt
    Bolt
  • 11
    9601-0-6204 Ball Bearing
    Ball Bearing
  • 12
    3V1-64211-0 Propeller Shaft
    Propeller Shaft
  • 13
    3B2-64215-0 Clutch
    Clutch
  • 14
    301-64217-0 Pin Clutch
    Pin Clutch
  • 15
    3V1-64221-0 Spring,Clutch
    Spring,Clutch
  • 16
    369-64223-0 Push Rod Clutch
    Push Rod Clutch
  • 17
    3B2-64222-0 Spring Holder, Clutch
    Spring Holder, Clutch
  • 18
    3B2-64010-0 Bevel Gear A
    Bevel Gear A
  • 19
    369-64014-0 Shim 21-28-0.1
    Shim 21-28-0.1
  • 19
    369-64015-0 Shim 21-28-0.15
    Shim 21-28-0.15
  • 20
    3V1-60041-0 Water Seal Rubber
    Water Seal Rubber
  • 21
    3V1-60042-0 Water Seal Plate
    Water Seal Plate
  • 22
    3B2Q60100-0 Propeller shaft housing assy.
    Propeller shaft housing assy.
  • 3B2Q60100-1 Propeller shaft housing assy.
    Propeller shaft housing assy.
  • 22-1
    3B2Q60101-0 Housing Propeller Shaft
    Housing Propeller Shaft
  • 3B2Q60101-1 Housing Propeller Shaft
    Housing Propeller Shaft
  • 22-2
    9601-0-6004 Ball Bearing
    Ball Bearing
  • 22-3
    345-65015-0 O-Ring
    O-Ring
  • 22-4
    369-60111-0 Oil Seal
    Oil Seal
  • 23
    3B2-64030-0 Bevel Gear C
    Bevel Gear C
  • 24
    369-64032-0 Washer
    Washer
  • 25
    9101E3-5620 Bolt & washer
    OR 910113-5620
    Bolt & washer
    OR 910113-5620
  • 26
    3B2-64230-1 Thrust holder ass'y
    # 044907XC~
    Thrust holder ass'y
    # 044907XC~
  • 27
    3B2W64512-5 Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
    Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
  • 3B2B64512-5 Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
    Prop 8 & 9.8 hp (8.0 dia x 5.0 pitch) black
  • 27
    3V1B64510-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
    (USA: 9.8 UL)
    Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
    (USA: 9.8 UL)
  • 3B2B64511-0 Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
    Prop 8 & 9.8 hp (8.7 dia x 5 pitch) - 4 blade (high thrust) black
  • 27
    3B2W64512-6 Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
    Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
  • 3B2B64512-6 Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
    Prop 8 & 9.8 hp (8.3 dia x 6.0 pitch) black
  • 27
    3B2B64513-1 Prop 8 & 9.8 hp (8.5 dia x 6.5 pitch) - discontinued
    Prop 8 & 9.8 hp (8.5 dia x 6.5 pitch) - discontinued
  • 27
    3B2B64514-1 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
    (USA: 9.8 L) / (USA: 8 S L)
    Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
    (USA: 9.8 L) / (USA: 8 S L)
  • 3B2B64514-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
    Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black
  • 27
    3V1B64514-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
    (USA: EFTL EPTL)
    Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
    (USA: EFTL EPTL)
  • 3B2B64512-0 Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
    Prop 8 & 9.8 hp (8.7 dia x 7 pitch) - 4 blade (high thrust) black
  • 27
    3B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
    9.8 L UL (USA.9.8 S) / 8 S L UL
    Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
    9.8 L UL (USA.9.8 S) / 8 S L UL
  • 27
    3B2B64517-1 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
    9.8 S
    Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
    9.8 S
  • 3B2B64517-0 Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
    Prop 8 & 9.8 hp (8.5 dia x 9.0 pitch) black
  • 27
    3B2B64519-1 Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
    OLD PART NO. 3B2-64518-0
    Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
    OLD PART NO. 3B2-64518-0
  • 28
    369-64124-0 Washer
    Washer
  • 29
    369-64121-0 Nut Propeller
    Nut Propeller
  • 30
    951503-0318 New part
    New part
  • 31
    3V1-64306-1 Drive Shaft S
    FOR TRANSOM S
    Drive Shaft S
    FOR TRANSOM S
  • 31
    3V1-64307-1 Drive shaft l
    FOR TRANSOM
    Drive shaft l
    FOR TRANSOM
  • 31
    3V1-64309-1 Drive Shaft UL
    FOR TRANSOM UL
    Drive Shaft UL
    FOR TRANSOM UL
  • 31
    3B2-64301-1 Вал торсионный S""
    FOR TRANSOM S
    Вал торсионный S""
    FOR TRANSOM S
  • 31
    3B2-64302-1 Drive shaft l
    FOR TRANSOM L
    Drive shaft l
    FOR TRANSOM L
  • 31
    3B2-64303-1 Drive Shaft UL
    FOR TRANSOM UL
    Drive Shaft UL
    FOR TRANSOM UL
  • 31-1
    9601-0-6301 Ball Bearing
    Ball Bearing
  • 32
    3B2-64020-0 Bevel Gear B
    Bevel Gear B
  • 33
    3B2-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 34
    3B2-65022-0 New part
    New part
  • 35
    3B2-65016-0 Water Pump Case
    Water Pump Case
  • 36
    3B2-65011-0 New part
    New part
  • 37
    3B2-65025-0 Guide Plate Water Pump
    Guide Plate Water Pump
  • 38
    3B2-65018-1 Gasket
    Gasket
  • 3B2-65018-2 Gasket
    Gasket
  • 39
    3B2-65029-1 Gasket
    Gasket
  • 3B2-65029-2 Gasket
    Gasket
  • 40
    9161E3-0650 Bolt
    OR 916113-0650
    Bolt
    OR 916113-0650
  • 41
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 42
    3V1-65017-0 Pump Case Lower
    # 017458XD~
    Pump Case Lower
    # 017458XD~
  • 43
    3B2-65020-0 Gasket Water Pump Case Lower
    Gasket Water Pump Case Lower
  • 44
    309-60111-0 Oil Seal 12-24-8
    Oil Seal 12-24-8
  • 45
    3B2-64081-0 Gap liner kit
    T=0.1
    Gap liner kit
    T=0.1
  • 3B2-64023-0 Gap liner kit
    Gap liner kit
  • 45
    3B2-64082-0 Gap liner kit
    T=0.15
    Gap liner kit
    T=0.15
  • 3B2-64023-0 Gap liner kit
    Gap liner kit
  • 45
    3B2-64083-0 Gap liner kit
    T=0.3
    Gap liner kit
    T=0.3
  • 3B2-64023-0 Gap liner kit
    Gap liner kit
  • 46
    3V1-65100-0 Труба водная
    FOR TRANSOM S
    Труба водная
    FOR TRANSOM S
  • 46
    3V1-65110-0 Труба водная
    FOR TRANSOM L
    Труба водная
    FOR TRANSOM L
  • 46
    3V1-65120-0 Труба водная
    FOR TRANSOM UL
    Труба водная
    FOR TRANSOM UL
  • 48
    331-65014-0 Lock ring coolibg water pipe
    Lock ring coolibg water pipe
  • 49
    3V1-65204-0 Rubber Mount,13-2.5
    Rubber Mount,13-2.5
  • 50
    3V1-65203-0 Lock Plate
    Lock Plate
  • 51
    9215E3-0510 Screw
    Screw
  • 921503-0510 Screw
    Screw
  • 52
    3V1-66012-0 Cam Rod (S)
    FOR TRANSOM S
    Cam Rod (S)
    FOR TRANSOM S
  • 52
    3V1-66013-0 Cam rod (l)
    FOR TRANSOM L
    Cam rod (l)
    FOR TRANSOM L
  • 52
    3V1-66014-0 Cam Rod(UL)
    FOR TRANSOM UL
    Cam Rod(UL)
    FOR TRANSOM UL
  • 53
    369-66033-0 Stopper Cam Rod Bushing
    Stopper Cam Rod Bushing
  • 54
    9101E3-5625 Bolt & washer
    OR 910113-5625
    Bolt & washer
    OR 910113-5625
  • 55
    369-66031-0 Bushing Cam Rod
    Bushing Cam Rod
  • 56
    369-66021-1 O?????2.5-4.9
    O?????2.5-4.9
  • 57
    332-66032-0 O?????2.4-15.4
    O?????2.4-15.4
  • 58
    369-66011-0 Clutch Cam
    Clutch Cam
  • 59
    951407-0310 Spring Washer
    Spring Washer
  • 60
    3V1Q87301-3 Lower unit assy s (amb)
    FOR TRANSOM S
    Lower unit assy s (amb)
    FOR TRANSOM S
  • 3V1Q87301-5 Lower unit assy s (amb)
    Lower unit assy s (amb)
  • 60
    3V1Q87302-3 Lower unit assy l (amb)
    FOR TRANSOM L
    Lower unit assy l (amb)
    FOR TRANSOM L
  • 3V1Q87302-5 Lower unit assy l (amb)
    Lower unit assy l (amb)
