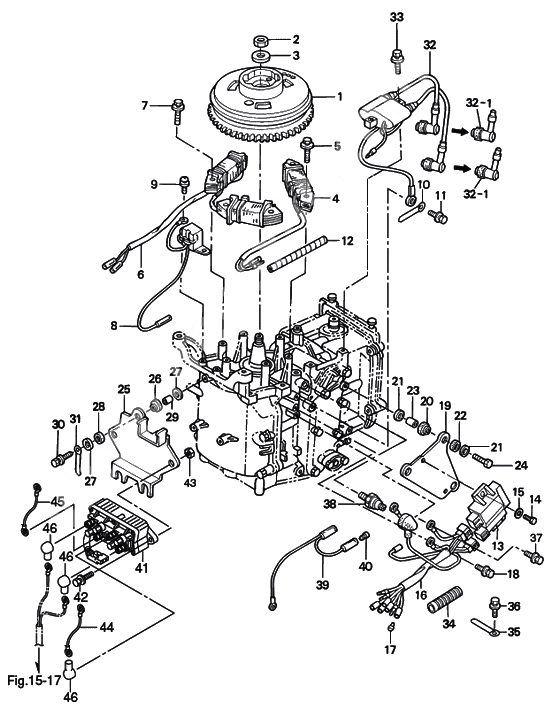

Magneto для Tohatsu MFS9.8A3 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3AA-06091-0 Flywheel Cap
    # 031096XD~ / FF-51 WITH RING GEAR
    Flywheel Cap
    # 031096XD~ / FF-51 WITH RING GEAR
  • 2
    369-00132-0 Nut Magneto
    Nut Magneto
  • 3
    940121-1200 Washer
    Washer
  • 4
    3AA-06021-0 Excite Coil
    # 031096XD~
    Excite Coil
    # 031096XD~
  • 5
    910103-5630 Bolt
    Bolt
  • 6
    3AA-06023-0 Alternator Ass'y
    # 031096XD~ / FOR EF/EFT & EP/EPT
    Alternator Ass'y
    # 031096XD~ / FOR EF/EFT & EP/EPT
  • 7
    910103-5630 Bolt
    FOR EF/EFT & EP/EPT
    Bolt
    FOR EF/EFT & EP/EPT
  • 8
    3V1-06071-0 Pulsar Coil
    Pulsar Coil
  • 9
    921503-0512 Stud Bolt
    Stud Bolt
  • 10
    309-06972-0 Clamp,6.5-47.5P
    ALTERNATOR & EXCITER CABLE
    Clamp,6.5-47.5P
    ALTERNATOR & EXCITER CABLE
  • 11
    910103-5616 Bolt
    Bolt
  • 12
    3V1-76148-0 Spiral Tube Protector
    FOR EF/EFT & EP/EPT / ALTERNATOR & EXCITER CABLE
    Spiral Tube Protector
    FOR EF/EFT & EP/EPT / ALTERNATOR & EXCITER CABLE
  • 13
    3AA-06060-0 C.D. Unit
    # 031096XD~
    C.D. Unit
    # 031096XD~
  • 14
    3V1-60108-0 Bolt,6-16 Pre Coated
    OLD PART NO. 3V1-06864-0
    Bolt,6-16 Pre Coated
    OLD PART NO. 3V1-06864-0
  • 15
    3R0-66308-0 Washer
    Washer
  • 16
    3AA-06167-0 Cord Ass'y C.D. Unit
    # 031096XD~
    Cord Ass'y C.D. Unit
    # 031096XD~
  • 17
    3A3-76037-0 Plug B Cable Terminal
    LIGHT GREEN & WHITE CABLE
    Plug B Cable Terminal
    LIGHT GREEN & WHITE CABLE
  • 18
    910103-5612 Bolt
    GROUND CABLE
    Bolt
    GROUND CABLE
  • 19
    3V1-06061-1 Bracket c.d. unit
    OR 3V1-06061-0
    Bracket c.d. unit
    OR 3V1-06061-0
  • 3V1-06061-0 Bracket c.d. unit
    Bracket c.d. unit
  • 20
    3T5-06920-0 Mount Rubber
    Mount Rubber
  • 21
    3R0-66308-0 Washer
    Washer
  • 22
    3B7-06305-0 Mount Rubber, 9-16-4.3
    Mount Rubber, 9-16-4.3
  • 23
    3A0-76079-0 Collar, 6.2-9-7.5
    Collar, 6.2-9-7.5
  • 24
    9101E3-0625 Bolt
    OR 910113-0625
    Bolt
    OR 910113-0625
  • 910103-0625 Bolt
    Bolt
  • 25
    3V1-06900-1 Electric bracket
    OR 3V1-06900-0 / FOR EF/EFT & EP/EPT
    Electric bracket
    OR 3V1-06900-0 / FOR EF/EFT & EP/EPT
  • 3V1-06900-0 Electric bracket
    Electric bracket
  • 26
    3T5-06920-0 Mount Rubber
    FOR EF/EFT & EP/EPT
    Mount Rubber
    FOR EF/EFT & EP/EPT
  • 27
    3R0-66308-0 Washer
    FOR EF/EFT & EP/EPT
    Washer
    FOR EF/EFT & EP/EPT
  • 28
    3B7-06305-0 Mount Rubber, 9-16-4.3
    FOR EF/EFT & EP/EPT
    Mount Rubber, 9-16-4.3
    FOR EF/EFT & EP/EPT
  • 29
    3A0-76079-0 Collar, 6.2-9-7.5
    FOR EF/EFT & EP/EPT
    Collar, 6.2-9-7.5
    FOR EF/EFT & EP/EPT
  • 30
    9101E3-0620 Bolt
    OR 910113-0620 / FOR EF/EFT & EP/EPT
    Bolt
    OR 910113-0620 / FOR EF/EFT & EP/EPT
  • 910103-0620 Bolt
    Bolt
  • 31
    3T4-06972-1 Clamp
    OR 3T4-06972-0 / FOR EP/EPT
    Clamp
    OR 3T4-06972-0 / FOR EP/EPT
  • 3T4-06972-0 Clamp
    Clamp
  • 32
    3V1-06040-0 Ignition Coil
    Ignition Coil
  • 32-1
    3H6-06999-0 Plug Cap (Registance)
    Plug Cap (Registance)
  • 33
    910103-5625 Bolt
    Bolt
  • 34
    3V1-06133-0 Protector
    ø34-70 / FOR MF
    Protector
    ø34-70 / FOR MF
  • 35
    3T4-06972-1 Clamp
    OR 3T4-06972-0 / FOR MF
    Clamp
    OR 3T4-06972-0 / FOR MF
  • 3T4-06972-0 Clamp
    Clamp
  • 36
    9101E3-5612 Bolt & washer
    OR 910113-5612 / FOR MF
    Bolt & washer
    OR 910113-5612 / FOR MF
  • 37
    910103-5612 Bolt
    FOR MF
    Bolt
    FOR MF
  • 38
    3H6-07611-0 Switch, Oil Pressure
    Switch, Oil Pressure
  • 39
    3V5-72678-0 Separate Cord(Black)
    Separate Cord(Black)
  • 40
    3A3-76037-0 Plug B Cable Terminal
    Plug B Cable Terminal
  • 41
    3Z0-72580-0 Power tilt solenoid switch inain
    FOR EFT/EPT
    Power tilt solenoid switch inain
    FOR EFT/EPT
  • 42
    9101E3-5620 Bolt & washer
    OR 910103-5620 / FOR EFT/EPT
    Bolt & washer
    OR 910103-5620 / FOR EFT/EPT
  • 43
    9301E3-0600 Nut
    OR 930103-0600 / FOR EFT/EPT
    Nut
    OR 930103-0600 / FOR EFT/EPT
  • 930103-0600 Nut
    Nut
  • 44
    3C8-72582-0 Cord a solenoid switch
    FOR EFT/EPT
    Cord a solenoid switch
    FOR EFT/EPT
  • 45
    3C8-72583-1 Cord B Solenoid Switch (L=130)
    FOR EFT/EPT
    Cord B Solenoid Switch (L=130)
    FOR EFT/EPT
  • 46
    3Y1-76145-0 Terminal Cap
    FOR EFT/EPT
    Terminal Cap
    FOR EFT/EPT
