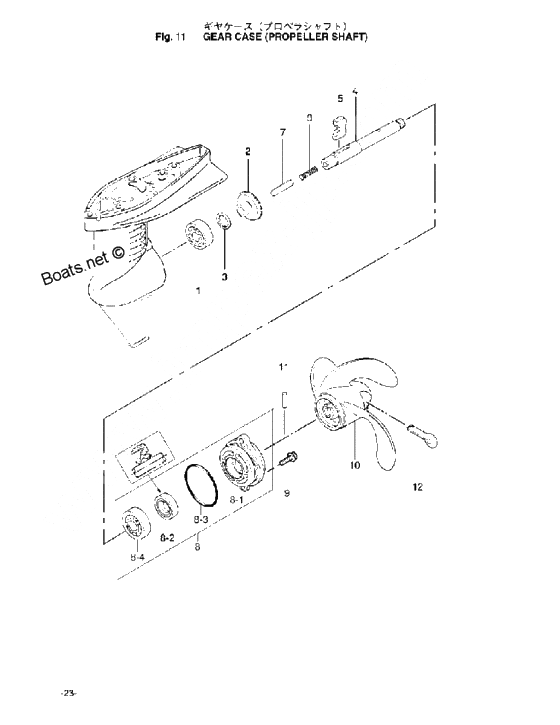

Gear case (propeller shaft) для Tohatsu MFS2B - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    9601-0-6004 Ball Bearing
    Ball Bearing
  • 2
    369-64010-2 Bevel Gear A Ass'y (with Bushing)
    Bevel Gear A Ass'y (with Bushing)
  • 3
    369-64015-0 Shim 21-28-0.15
    Shim 21-28-0.15
  • 3
    369-64014-0 Shim 21-28-0.1
    Shim 21-28-0.1
  • 4
    3F0-64211-0 Propeller Shaft
    Propeller Shaft
  • 5
    3F0-64215-0 Clutch
    Clutch
  • 6
    3F0-64221-0 Spring Clutch
    Spring Clutch
  • 7
    3F0-64223-0 Push Rod Clutch
    Push Rod Clutch
  • 8
    3F0Q87323-1 Propeller shaft housing assy
    Propeller shaft housing assy
  • 8-1
    3F0Q60101-1 Propeller shaft housing
    Propeller shaft housing
  • 8-2
    309-60111-0 Oil Seal 12-24-8
    Oil Seal 12-24-8
  • 8-3
    345-65015-0 O-Ring
    O-Ring
  • 8-4
    9601-0-6001 Ball Bearing
    Ball Bearing
  • 9
    9101E3-5620 Bolt & washer
    or 910113-5620
    Bolt & washer
    or 910113-5620
  • 10
    309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
    Option
    Prop 3 blade resin (7.4 dia. x 5.7 pitch)
    Option
  • 10
    314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
    Option
    Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
    Option
  • 314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
    Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
  • 10
    3F0-64101-0 Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
    for Transom S", "L""
    Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
    for Transom S", "L""
  • 10
    3F0B64512-0 Old Part No. 3F0-64102-0 Option
    Old Part No. 3F0-64102-0 Option
    Old Part No. 3F0-64102-0 Option
    Old Part No. 3F0-64102-0 Option
  • 11
    309-64126-1 # 048350XG-
    # 048350XG-
    # 048350XG-
    # 048350XG-
  • 12
    951503-0435 New part
    New part
