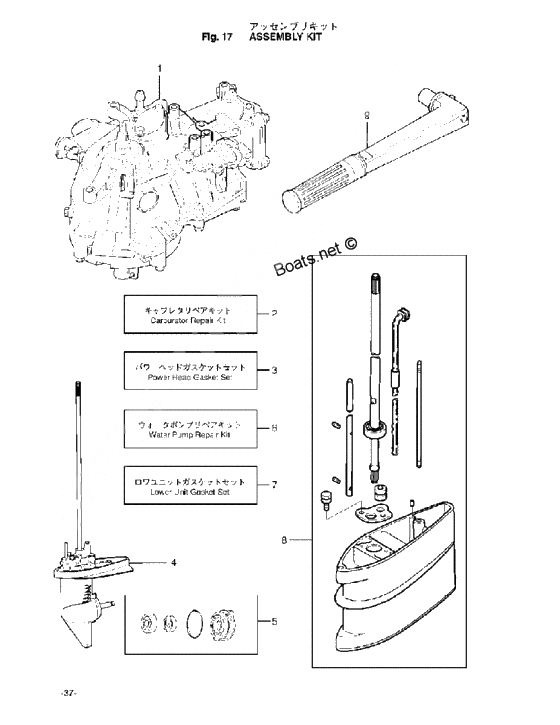

Assembly kit для Tohatsu MFS2B - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3GTB87090-2 Engine short block 3.5b/2.5b/2b
    3.5B/2.5B/2B-
    Engine short block 3.5b/2.5b/2b
    3.5B/2.5B/2B-
  • 3GTB87090-3 Engine short block 3.5b/2.5b/2b
    Engine short block 3.5b/2.5b/2b
  • 1
    3AB-01210-0 Crank case head
    , with Oil Seal & O-Ring
    Crank case head
    , with Oil Seal & O-Ring
  • 1
    9101E3-5620 Bolt & washer
    , or 910113-5620
    Bolt & washer
    , or 910113-5620
  • 1
    3AB-61012-0 Drive Shaft Housing Gasket
    Drive Shaft Housing Gasket
  • 2
    922503-6412 Stud Bolt
    Stud Bolt
  • 2
    3GT-03231-0 Float
    Float
  • 2
    3H6-03293-0 O-ring,drain Screw
    O-ring,drain Screw
  • 2
    3AB-03231-0 Float f2.5a/3.5a
    Float f2.5a/3.5a
  • 2
    3H6-03240-0 Float Valve
    Float Valve
  • 2
    3H6-03244-0 Clip
    Clip
  • 2
    3H6-03232-0 Aym Pin, Float
    Aym Pin, Float
  • 2
    3GT-87122-0 Carburetor Rerair Kit
    3.5B/2.5B/2B-
    Carburetor Rerair Kit
    3.5B/2.5B/2B-
  • 3GT-87122-1 Carburetor Rerair Kit
    Carburetor Rerair Kit
  • 2
    3H6-03222-0 Gasket,float Chamber
    Gasket,float Chamber
  • 2
    3AB-87122-0 Carburetor repair kit f2/2.5/3/5a
    3.5A/2.5A/2A-
    Carburetor repair kit f2/2.5/3/5a
    3.5A/2.5A/2A-
  • 3
    3H6-02011-0 Gasket, carburetor
    Gasket, carburetor
  • 3
    3AB-02104-0 Intake manifold gasket
    Intake manifold gasket
  • 3
    3AB-87121-0 Power Head Gasket Set
    Power Head Gasket Set
  • 3
    3AB-07402-0 Oil pan gasket
    Oil pan gasket
  • 3
    3AB-01024-1 3AB-01024-1
    3AB-01024-1
  • 3
    3R0-07422-0 New part
    , Engine Oil Filler Cap
    New part
    , Engine Oil Filler Cap
  • 3
    3AB-01032-0 Thermostat cap gasket
    Thermostat cap gasket
  • 3
    3AB-01215-0 Oil Seal
    . Drive Shaft
    Oil Seal
    . Drive Shaft
  • 3
    3AB-07432-0 Breather chamber cover gasket
    Breather chamber cover gasket
  • 3
    3V1-02012-0 O-Ring
    , Crank Case Head
    O-Ring
    , Crank Case Head
  • 3
    3AB-00121-0 Oil Seal
    , Crank Shaft
    Oil Seal
    , Crank Shaft
  • 4
    3BMQ87301-1 Lower unit assy insin f2.5a/3.5a/b
    or 3BMQ87301-0 for Transom S""
    Lower unit assy insin f2.5a/3.5a/b
    or 3BMQ87301-0 for Transom S""
  • 3BMQ87301-0 Lower unit assy insin f2.5a/3.5a/b
    Lower unit assy insin f2.5a/3.5a/b
  • 4
    3BMQ87302-1 Lower unit assy inlin f2.5a/3.5a/b
    or 3BMQ87302-0 for Transom L""
    Lower unit assy inlin f2.5a/3.5a/b
    or 3BMQ87302-0 for Transom L""
  • 3BMQ87302-0 Lower unit assy inlin f2.5a/3.5a/b
    Lower unit assy inlin f2.5a/3.5a/b
  • 5
    3F0Q87323-1 Propeller shaft housing assy
    Propeller shaft housing assy
  • 6
    3F0-65018-0 New part
    New part
  • 6
    3AB-65025-0 WATER PUMP GUIDE PLATE
    WATER PUMP GUIDE PLATE
  • 6
    3F0-65029-0 New part
    New part
  • 6
    3AB-87322-0 New part
    New part
  • 6
    369-65021-1 Крыльчатка водной помпы
    Крыльчатка водной помпы
  • 6
    369-65022-0 Key water pump impeller
    Key water pump impeller
  • 6
    3F0-65011-0 Liner Pump Case
    Liner Pump Case
  • 7
    3F0-65020-0 New part
    New part
  • 7
    309-60111-0 Oil Seal 12-24-8
    , Propeller Shaft
    Oil Seal 12-24-8
    , Propeller Shaft
  • 7
    345-65015-0 O-Ring
    , Propeller Shaft Housing
    O-Ring
    , Propeller Shaft Housing
  • 7
    369-66021-1 O?????2.5-4.9
    , Cam Rod
    O?????2.5-4.9
    , Cam Rod
  • 7
    3F0-87321-0 Lower Unit Gasket Set
    Lower Unit Gasket Set
  • 7
    301-66023-0 O-Ring
    , Bushing
    O-Ring
    , Bushing
  • 7
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 7
    3F0-60223-0 Oil Seal 10-22-8
    , Pump Case Lower
    Oil Seal 10-22-8
    , Pump Case Lower
  • 8
    3AB-60003-0 Drive shaft bushing
    , Fig. 9-9
    Drive shaft bushing
    , Fig. 9-9
  • 8
    3F0-66013-0 Cam Rod L
    , Fig. 12-9
    Cam Rod L
    , Fig. 12-9
  • 8
    3AB-64332-0 Drive shaft bushing stopper
    , Fig. 9-10
    Drive shaft bushing stopper
    , Fig. 9-10
  • 8
    951407-0308 Spring Washer
    , Fig. 12-10
    Spring Washer
    , Fig. 12-10
  • 8
    172-36008-0 Grommet
    , Fig. 9-11
    Grommet
    , Fig. 9-11
  • 8
    3AB-65192-0 Water pipe inlin f2.5a/3.5a
    , Fig. 10-17
    Water pipe inlin f2.5a/3.5a
    , Fig. 10-17
  • 8
    9101E3-5612 Bolt & washer
    , Fig. 9-12, or 910113-5612
    Bolt & washer
    , Fig. 9-12, or 910113-5612
  • 8
    3AB-01111-0 Dowel Pin 6-12
    , Fig. 9-25
    Dowel Pin 6-12
    , Fig. 9-25
  • 8
    3F0-61101-1 Stud Bolt
    , Fig. 9-13
    Stud Bolt
    , Fig. 9-13
  • 8
    3AB-60001-1 Bolt 6-30 precoated
    , Fig. 9-15
    Bolt 6-30 precoated
    , Fig. 9-15
  • 8
    3ABQ61100-0 Extension housing inlin f2.5ab/3.5ab
    , Fig. 9-8
    Extension housing inlin f2.5ab/3.5ab
    , Fig. 9-8
  • 8
    3AB-64307-0 Drive shaft inlin f2.5a/3.5a
    , Fig. 10-1
    Drive shaft inlin f2.5a/3.5a
    , Fig. 10-1
  • 9
    3R3-63012-0 Grip
    Grip
  • 9
    3V1-63036-0 Spring Washer
    Spring Washer
  • 9
    3H6-63048-0 Rubber, Shrottle Shaft
    Rubber, Shrottle Shaft
  • 9
    910103-0625 Bolt
    Bolt
  • 9
    3H6-63510-0 Bushing
    Bushing
  • 9
    3V9-72019-0 Label,Throttle
    Label,Throttle
  • 9
    3B2-63063-0 Supporter Throttle Shaft
    Supporter Throttle Shaft
  • 9
    3V1-63041-0 Throttle Shaft
    Throttle Shaft
  • 9
    921503-0612 Stud Bolt
    Stud Bolt
  • 9
    3V1Q63003-3 Handle assy (amb)
    or 3V1Q63003-2
    Handle assy (amb)
    or 3V1Q63003-2
  • 3V1Q63003-4 Handle assy (amb)
    Handle assy (amb)
  • 9
    350-67154-0 New part
    New part
  • 9
    3V1-63035-1 Friction Piece
    Friction Piece
  • 9
    3V1Q63011-2 Tiller handle (amb)
    Tiller handle (amb)
  • 3V1Q63011-3 Tiller handle (amb)
    Tiller handle (amb)
  • 9
    3V1-63077-0 Adjusting Nut
    Adjusting Nut
