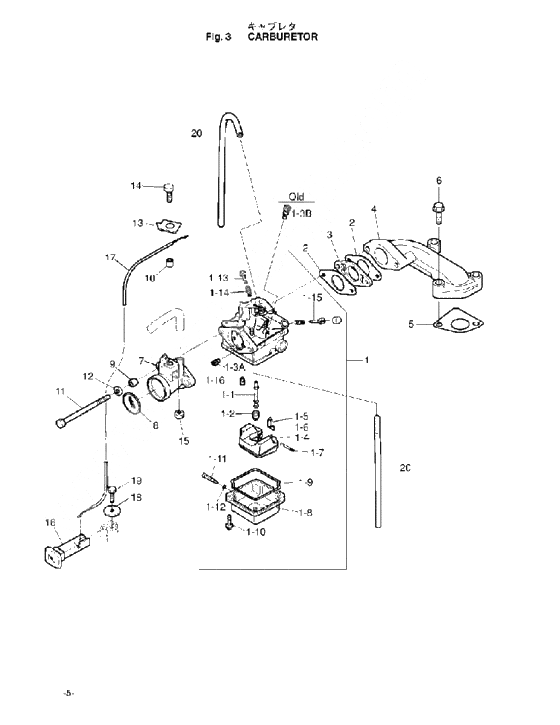

Carburetor для Tohatsu MFS2B - 2009 года выпуска
-
№АртикулНазвание
-
13GT-03200-0 2B-, Mark: 3GTA
2B-, Mark: 3GTA2B-, Mark: 3GTA
2B-, Mark: 3GTA -
13BV-03200-1 Carburetor assy (old)
2A-016969XG(Do. Only) 2A(EX) Mark:3BVBCarburetor assy (old)
2A-016969XG(Do. Only) 2A(EX) Mark:3BVB -
1-13GT-03252-0 Main Nozzle
, 2B-Main Nozzle
, 2B- -
1-13BV-03252-0 Main nozzle f2a
, 2AMain nozzle f2a
, 2A -
1-10922503-6412 Stud BoltStud Bolt
-
1-113H6-03292-0 Drain ScrewDrain Screw
-
1-123H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
1-133AB-03265-0 Stop ScrewStop Screw
-
1-143H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
1-153AB-03266-0 Pilot screw setPilot screw set
-
1-153AS-03266-0 Pilot screw set
3.5A/2.5A/2A, 2A #016969XG(Do. Only)Pilot screw set
3.5A/2.5A/2A, 2A #016969XG(Do. Only) -
1-163GT-03256-0 Rubber cap
3.5B/2.5B/2B-Rubber cap
3.5B/2.5B/2B- -
1-23DJ-04458-0 Main jet #58
, 2B-Main jet #58
, 2B- -
1-3A3GT-04915-0 Slow air jet # 115
, 3.5B/2B-Slow air jet # 115
, 3.5B/2B- -
1-3B3R1-03254-0 Pilot Jet #38
, 3.5A/2.5A/2APilot Jet #38
, 3.5A/2.5A/2A -
1-43GT-03231-0 Float
, 3.5B/2.5B/2B-Float
, 3.5B/2.5B/2B- -
1-43AB-03231-0 Float f2.5a/3.5a
, 3.5A/2.5A/2AFloat f2.5a/3.5a
, 3.5A/2.5A/2A -
1-53H6-03240-0 Float ValveFloat Valve
-
1-63H6-03244-0 ClipClip
-
1-73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
1-83GT-03221-0 Float Chamber
, 3.5A/2.5A/2B-Float Chamber
, 3.5A/2.5A/2B- -
1-83H6-03221-0 Float Chamber
3.5A/2.5A/2AFloat Chamber
3.5A/2.5A/2A -
1-93H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
23H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-03952-1 InsulatorInsulator
-
43BRB02091-0 Intake manifoldIntake manifold
-
53AB-02104-0 Intake manifold gasketIntake manifold gasket
-
73H6-02411-0 Air SilencerAir Silencer
-
83H6-02603-0 Flam TrapFlam Trap
-
93A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
103H6-76079-1 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
3H6-76079-0 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
12940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
133H6-63505-0 Holder, CableHolder, Cable
-
14910103-0616 BoltBolt
-
15930103-0600 NutNut
-
163H6-67151-0 Choke RodChoke Rod
-
173AB-67197-0 Choke link cableChoke link cable
-
18346-67115-0 WasherWasher
-
19910103-0612 New partNew part
