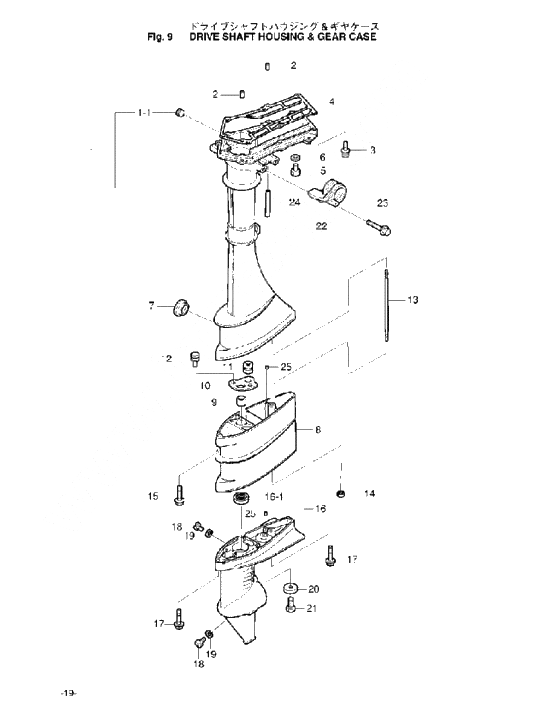

Drive shaft housing & gear case для Tohatsu MFS2B - 2009 года выпуска

№

Артикул

Название
1

3ABQ61020-1 Drive shaft housing insin f2.5ab/3.5ab

Drive shaft housing insin f2.5ab/3.5ab
3ABQ61020-2 Drive shaft housing insin f2.5ab/3.5ab

Drive shaft housing insin f2.5ab/3.5ab
1-1

3H6-07257-0 Exhaust Plug

Exhaust Plug
2

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12
4

3AB-61012-0 Drive Shaft Housing Gasket

Drive Shaft Housing Gasket
5

9106E3-0808 Water Plug
or 910613-0808

Water Plug
or 910613-0808
6

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)
7

369-61016-0 Grommet Drive Shaft Housing

Grommet Drive Shaft Housing
8

3ABQ61100-0 Extension housing inlin f2.5ab/3.5ab

Extension housing inlin f2.5ab/3.5ab
9

3AB-60003-0 Drive shaft bushing

Drive shaft bushing
10

3AB-64332-0 Drive shaft bushing stopper

Drive shaft bushing stopper
11

172-36008-0 Grommet

Grommet
12

9101E3-5612 Bolt & washer
for Transom L" / (or 910113-5612)"

Bolt & washer
for Transom L" / (or 910113-5612)"
13

3F0-61101-1 Stud Bolt

Stud Bolt
15

3AB-60001-1 Bolt 6-30 precoated

Bolt 6-30 precoated
16

3BMQ60000-1 Gear case f2.5ab/3.5ab
or 3BMQ60000-0

Gear case f2.5ab/3.5ab
or 3BMQ60000-0
3BMQ60000-0 Gear case f2.5ab/3.5ab

Gear case f2.5ab/3.5ab
16-1

3AB-60213-0 Ball bearing 6000

Ball bearing 6000
18

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug
20

338-60218-2 New part

New part
21

910103-0616 Bolt

Bolt
22

3ABQ62001-1 # 030015XH-
# 030015XH-

# 030015XH-
# 030015XH-
23

9101E3-5835 Bolt & washer
or 910113-5835

Bolt & washer
or 910113-5835
25

3AB-01111-0 Dowel Pin 6-12

Dowel Pin 6-12
