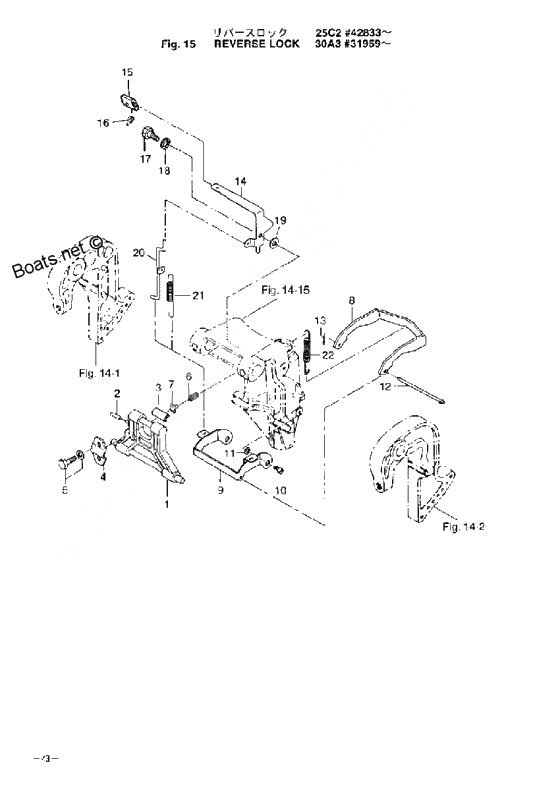

Reverse lock 25c2 #42833- 30a3 #31959- для Tohatsu M25C3 - 2005 года выпуска`
-
№АртикулНазвание
-
1349S62431-0 Tilt stop assyTilt stop assy
-
349Q62993-1 Tilt stop assyTilt stop assy
-
2951403-0635 Spring WasherSpring Washer
-
3346-62437-0 BushingBushing
-
4346-62439-0 Set Plate Tilt StopperSet Plate Tilt Stopper
-
5910103-6820 BoltBolt
-
63C8-62421-1 Spring Friction PlateSpring Friction Plate
-
7346-62438-0 Set PieceSet Piece
-
8346-66322-0 Reverse LockReverse Lock
-
9349-66313-0 Arm,Reverse LockArm,Reverse Lock
-
10336-66319-0 Shift, reverse lock armShift, reverse lock arm
-
113C8-66308-0 New part
тИЕ6 - тИЕ16 - 1.5mmNew part
тИЕ6 - тИЕ16 - 1.5mm -
12346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
13951503-0212 Split PinSplit Pin
-
14349-66311-0 Lever,reverse lockLever,reverse lock
-
15346-66333-0 GripGrip
-
16346-66334-0 StopperStopper
-
17345-05214-1 Shaft reverse lock leverShaft reverse lock lever
-
18941403-0800 WasherWasher
-
20349-66312-0 Link, Reverse LockLink, Reverse Lock
-
21346-66323-1 Spring,Reverse Lock LeverSpring,Reverse Lock Lever
-
22346-66331-0 Spring (S) Reverse Lock
for Transom S""Spring (S) Reverse Lock
for Transom S"" -
223R0-66332-0 Spring (L) Reverse Lock
for Transoms L" and "UL""Spring (L) Reverse Lock
for Transoms L" and "UL""
