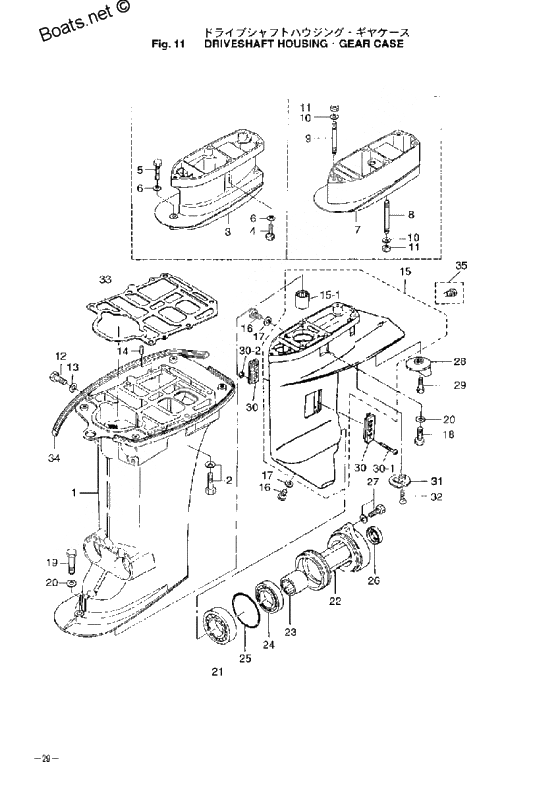

Driveshaft housing - gear case для Tohatsu M25C3 - 2005 года выпуска

№

Артикул

Название
1

346S61020-3 Drive shaft housing s
for Transom S""

Drive shaft housing s
for Transom S""
1

346S61030-3 Drive shaft housing l
for Transoms L" and "UL""

Drive shaft housing l
for Transoms L" and "UL""
3

346S61110-5 Extension housing ul
for Transom UL""

Extension housing ul
for Transom UL""
6

3P0-66233-0 New part
тИЕ8.1 - тИЕ16 - 1.5mm, for Transom UL""

New part
тИЕ8.1 - тИЕ16 - 1.5mm, for Transom UL""
7

346S61120-0 Extension housing ll
for Transom LL""

Extension housing ll
for Transom LL""
8

3A1-61111-1 Stud Bolt
for Transom LL""

Stud Bolt
for Transom LL""
13

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)
14

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12
15-1

346-60211-0 Needle bearing, 20-27-30

Needle bearing, 20-27-30
16

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug
21

346-60215-0 Подшипник (30205) 25x52x16,25

Подшипник (30205) 25x52x16,25
22

346S60101-5 Housing propeller shaft

Housing propeller shaft
346Q60101-8 Housing propeller shaft

Housing propeller shaft
23

346-60102-0 Needle Bearing

Needle Bearing
24

9601-0-6205 Подшипник 25x52x15

Подшипник 25x52x15
25

332-60103-0 O-Ring
тИЕ3 - тИЕ62.5

O-Ring
тИЕ3 - тИЕ62.5
26

346-60111-0 Oil seal, 18-28-8
тИЕ18 - тИЕ28 - 8mm

Oil seal, 18-28-8
тИЕ18 - тИЕ28 - 8mm
28

3C8-60217-1 Trim Tab
30A3 # 30720- 25C2 #40911-

Trim Tab
30A3 # 30720- 25C2 #40911-
30

3A1-60235-0 Water Strainer Set

Water Strainer Set
30-1

921503-0430 Stud Bolt

Stud Bolt
31

369-60206-0 Water Strainer

Water Strainer
33

346-01303-0 Gasket engine base

Gasket engine base
34

346-67116-0 Seal rubber motor cover lower

Seal rubber motor cover lower
35

346-60984-0 Plug Sub Water Pipe
Option

Plug Sub Water Pipe
Option
