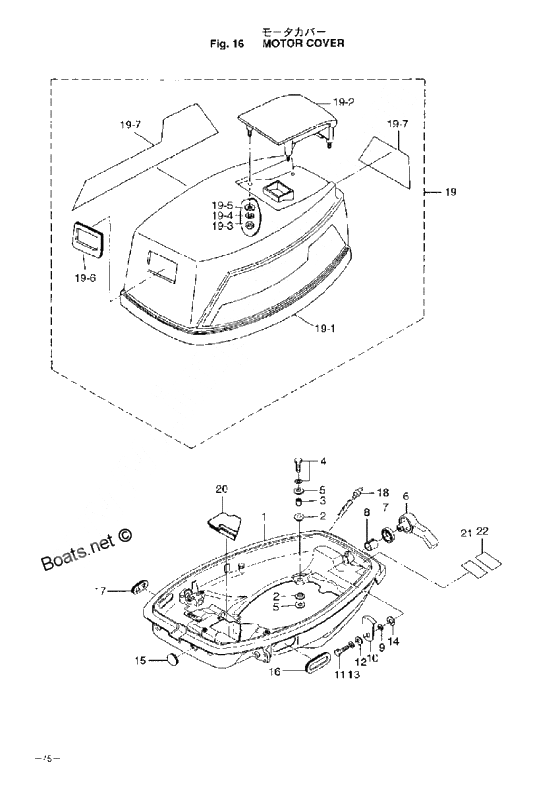

Motor cover для Tohatsu M25C3 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    346S67100-3 Motor cover lower
    25C2 #46214- 30A3 #33577-
    Motor cover lower
    25C2 #46214- 30A3 #33577-
  • 2
    346-67113-0 Mount Rubber
    Mount Rubber
  • 3
    346-67114-0 Spacer 6.2-9-15.7
    Spacer 6.2-9-15.7
  • 5
    346-67115-0 Washer
    тИЕ6.2 - тИЕ21 - 1mm
    Washer
    тИЕ6.2 - тИЕ21 - 1mm
  • 6
    338S67141-0 New part
    25C2 #46214- 30A3 #33577-
    New part
    25C2 #46214- 30A3 #33577-
  • 7
    338-67147-0 New part
    25C2 #46214- 30A3 #33577-
    New part
    25C2 #46214- 30A3 #33577-
  • 8
    350-67105-0 New part
    25C2 #46214- 30A3 #33577-
    New part
    25C2 #46214- 30A3 #33577-
  • 9
    941403-1400 New part
    New part
  • 10
    345-67142-1 New part
    New part
  • 11
    910103-0612 New part
    New part
  • 12
    3C8-66308-0 New part
    тИЕ6 - тИЕ16 - 1.5mm
    New part
    тИЕ6 - тИЕ16 - 1.5mm
  • 13
    941303-0600 New part
    New part
  • 14
    3C8-67146-0 Washer
    Washer
  • 15
    345-67161-0 Grommet 22-3
    Grommet 22-3
  • 16
    346-67165-0 Grommet b motor cover lower
    Grommet b motor cover lower
  • 17
    353-67162-0 Grommet, Bater Cord
    Grommet, Bater Cord
  • 18
    353-01138-0 Water Nipple
    Water Nipple
  • 19
    3P0S67500-0 Motor cover upper ass'y
    30A4 # 36105-, 25C3 # 52799-, Unique
    Motor cover upper ass'y
    30A4 # 36105-, 25C3 # 52799-, Unique
  • 19-1
    3F3-67501-0 Seal rubber upper motor cover
    Seal rubber upper motor cover
  • 19-2
    349S67521-0 Tilt handle
    Tilt handle
  • 19-3
    930103-0600 Nut
    , or 930113-0600
    Nut
    , or 930113-0600
  • 19-5
    309-70016-0 Washer
    Washer
  • 19-6
    344-67503-0 Seal rubber recoil starter
    Seal rubber recoil starter
  • 19-7
    3P0S87801-0 Набор этикеток
    25C3 # 52799-, Unique
    Набор этикеток
    25C3 # 52799-, Unique
  • 20
    346-67161-0 Grommet d motor cover lower
    Option
    Grommet d motor cover lower
    Option
  • 22
    361-72026-0 Label, resistance spark plug
    Label, resistance spark plug
  • 1
    346S67100-3 Motor Cover Lower
    30A3 # 33577〜 25c2 # 46214-
    Motor Cover Lower
    30A3 # 33577〜 25c2 # 46214-
  • 2
    346-67113-0 Mount Rubber
    Mount Rubber
  • 3
    346-67114-0 Spacer, 6.2-9-15.7
    Spacer, 6.2-9-15.7
  • 4
    910113-0630 Bolt
    Bolt
  • 5
    346-67115-0 Washer, 6.5-21 T
    Washer, 6.5-21 T
  • 6
    338S67141-0 Hook Lever
    30A3 # 33577〜 25c2 # 46214-
    Hook Lever
    30A3 # 33577〜 25c2 # 46214-
  • 7
    338-67147-0 Seal Ring, Hook Lever
    30A3 # 33577-25c2 # 46214-
    Seal Ring, Hook Lever
    30A3 # 33577-25c2 # 46214-
  • 8
    350-67105-0 Bushing, 14-16.5-17.7
    30A3 # 33577〜 25c2 # 46214-
    Bushing, 14-16.5-17.7
    30A3 # 33577〜 25c2 # 46214-
  • 9
    941403-1400 Wave Washer, d=14
    Wave Washer, d=14
  • 10
    345-67142-1 Cover Hook
    Cover Hook
  • 11
    910103-0612 Bolt
    Bolt
  • 12
    3R0-66308-0 Washer, 6-16-1.5
    Washer, 6-16-1.5
  • 13
    941303-0600 Spring Washer
    Spring Washer
  • 14
    3C8-67146-0 Washer. 14-22-1
    Washer. 14-22-1
  • 15
    345-67161-0 Grommet, 22-3
    Grommet, 22-3
  • 16
    346-67165-0 Grommet "B , Motor Cover Lower
    Grommet "B , Motor Cover Lower
  • 17
    353-67162-0 Grommet, Battery Cable
    Grommet, Battery Cable
  • 18
    353-01138-0 Water Nipple
    Water Nipple
  • 19
    3P0S67500-0 Motor Cover Upper
    30A4#36105 〜，25C3#52799 〜 UNIQUE
    Motor Cover Upper
    30A4#36105 〜，25C3#52799 〜 UNIQUE
  • 19-1
    3F3-67501-0 * Seal Rubber, Motor Cover Upper
    * Seal Rubber, Motor Cover Upper
  • 19-2
    349S67521-0 * Tilt Handle
    * Tilt Handle
  • 19-3
    930103-0600 * Nut
    or 930113-0600
    * Nut
    or 930113-0600
  • 19-4
    941303-0600 * Spring Washer
    * Spring Washer
  • 19-5
    309-70016-0 * Washer, 6.5-16~2
    * Washer, 6.5-16~2
  • 19-6
    344-67503-0 * Seal Rubber, Starter
    * Seal Rubber, Starter
  • 19-7
    3P0S87801-0 * Decal Set
    25C3#52799 〜 UNIQUE
    * Decal Set
    25C3#52799 〜 UNIQUE
  • 20
    346-67161-0 Grommet D”，Motor Cover Lower
    Option
    Grommet D”，Motor Cover Lower
    Option
  • 21
    332-72025-0 Label, Spark Plug
    Label, Spark Plug
  • 22
    361-72026-0 Label, Spark Plug (Resistance)
    Label, Spark Plug (Resistance)
