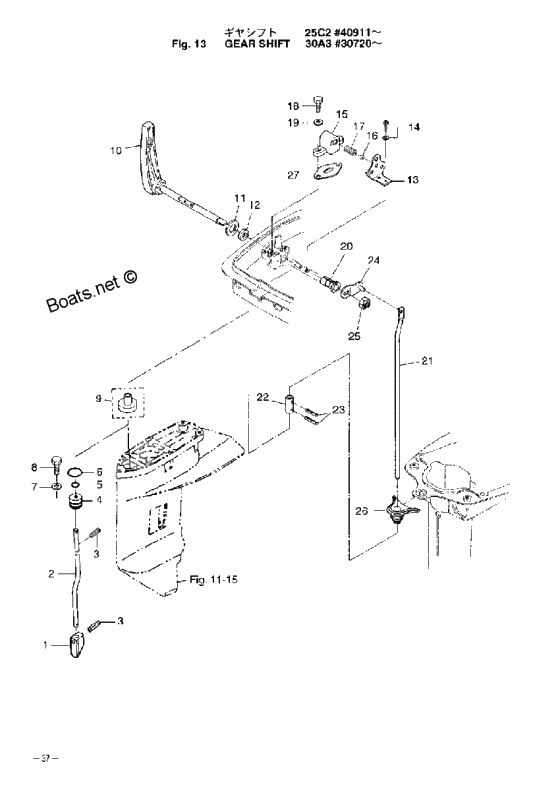

Gear shift для Tohatsu M25C3 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3C8-66011-0 Clutch Cam
    Clutch Cam
  • 2
    346-66012-1 Cam rod s(15)"
    for Transom S'"
    Cam rod s(15)"
    for Transom S'"
  • 2
    346-66013-1 Cam rod l(20)"
    for Transom L""
    Cam rod l(20)"
    for Transom L""
  • 2
    346-66015-1 Cam rod ll(23)"
    for Transom LL""
    Cam rod ll(23)"
    for Transom LL""
  • 2
    346-66014-1 Cam rod ul(25)"
    for Transom UL""
    Cam rod ul(25)"
    for Transom UL""
  • 3
    951407-0312 Spring Washer
    тИЕ3 - 12mm
    Spring Washer
    тИЕ3 - 12mm
  • 4
    3C8-66031-1 Bushing Cam Rod
    Bushing Cam Rod
  • 5
    332-66021-0 O-Ring
    тИЕ2.4 - тИЕ5.8
    O-Ring
    тИЕ2.4 - тИЕ5.8
  • 6
    3C8-66032-0 O-Ring
    тИЕ3.5 - тИЕ21.7
    O-Ring
    тИЕ3.5 - тИЕ21.7
  • 7
    3C8-66308-0 New part
    or 3C8-66308-0
    New part
    or 3C8-66308-0
  • 8
    910103-6612 Bolt
    Bolt
  • 9
    346-66037-0 Holder Cam Rod
    for Transom UL""
    Holder Cam Rod
    for Transom UL""
  • 10
    346S66110-0 Shift lever ass'y
    Shift lever ass'y
  • 11
    346-66138-0 Spacer,shift lever 18.2-26-3
    тИЕ18.2 - тИЕ26 - 3mm
    Spacer,shift lever 18.2-26-3
    тИЕ18.2 - тИЕ26 - 3mm
  • 12
    345-66137-0 Oil seal, 10-20-4
    тИЕ14 - тИЕ20 - 4.5mm
    Oil seal, 10-20-4
    тИЕ14 - тИЕ20 - 4.5mm
  • 13
    346-66121-0 Stopper plate,shift lever
    Stopper plate,shift lever
  • 14
    910903-6512 Bolt
    Bolt
  • 15
    345-66115-0 Holder shift lever stopper
    Holder shift lever stopper
  • 16
    965002-1605 Ball
    Ball
  • 17
    332-66112-0 Spring stopper ball
    Spring stopper ball
  • 18
    910114-0616 Bolt
    Bolt
  • 19
    940103-0600 Washer
    or 940113-0600
    Washer
    or 940113-0600
  • 20
    346-67101-0 Bushing Shift Lever
    Bushing Shift Lever
  • 21
    346-66211-1 Shift Rod
    Shift Rod
  • 22
    346-66241-1 Joint, shift rod
    Joint, shift rod
  • 23
    951403-0312 Spring Washer
    тИЕ3 - 12mm
    Spring Washer
    тИЕ3 - 12mm
  • 24
    346-66225-1 Shift Rod Lever
    Shift Rod Lever
  • 25
    930403-1000 Nylon Nut
    Nylon Nut
  • 26
    346-66226-0 Grommet, shift lever
    Grommet, shift lever
  • 27
    345-66119-0 Shim shift lever stopper holder
    Shim shift lever stopper holder
