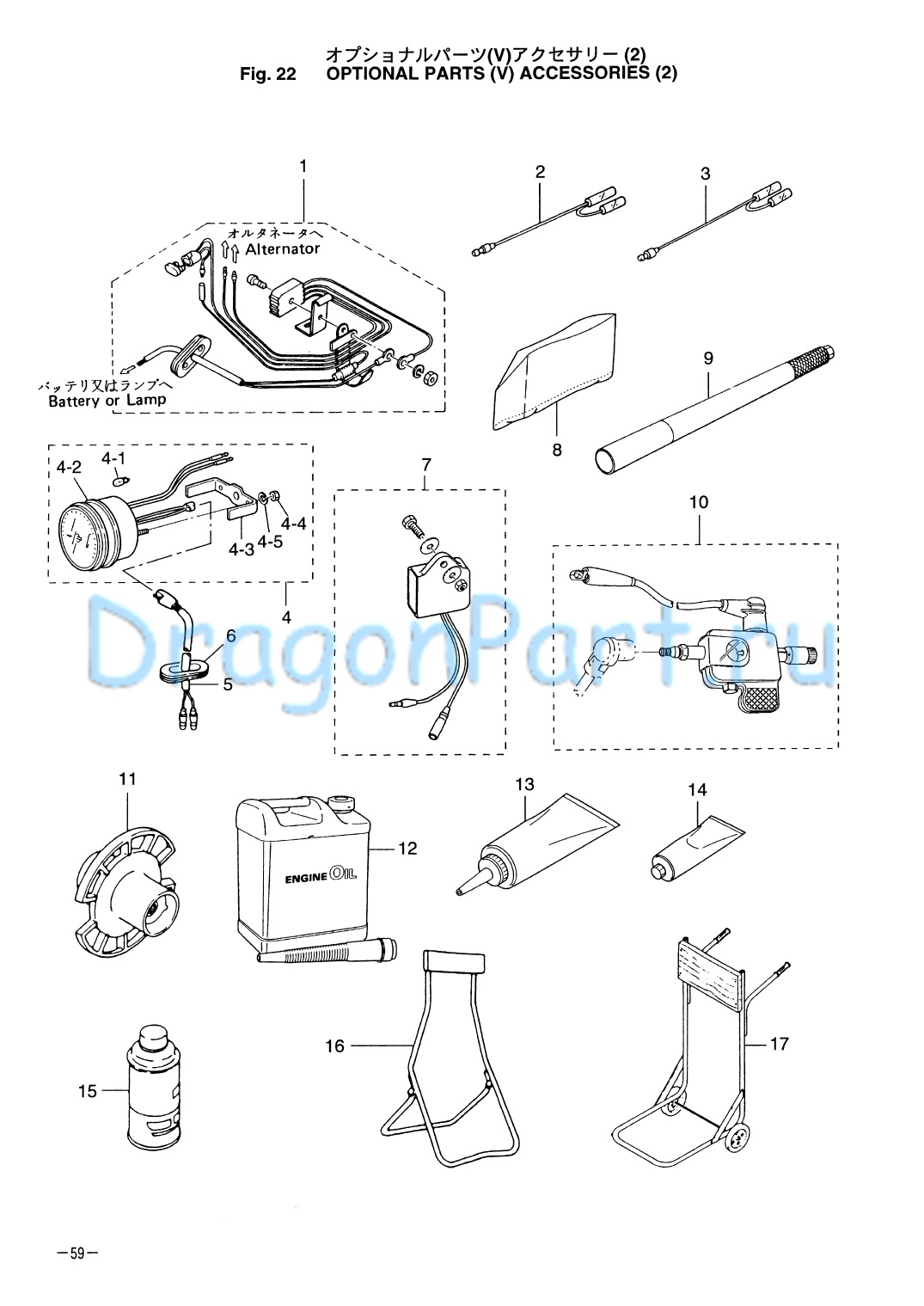

OPTIONAL PARTS (V) ACCESSORIES (2) для Tohatsu M25C3 - 2005 года выпуска`
-
№АртикулНазвание
-
1346-76160-2 Rectifier KitRectifier Kit
-
2361-72542-0 Separate Cord (White)Separate Cord (White)
-
3361-72543-0 Separate Cord (Yellow)Separate Cord (Yellow)
-
43B7-72530-1 Tachometer
UNIQUETachometer
UNIQUE -
4-13B7-72659-0 * Bulb, Meter 12V-1.7W* Bulb, Meter 12V-1.7W
-
4-23B7-72656-0 * Dumper, Meter* Dumper, Meter
-
4-33B7-72661-0 * Fitting Plate* Fitting Plate
-
4-4930203-0500 * Nut* Nut
-
4-5941303-0500 * Spring Washer* Spring Washer
-
5361-72539-0 Lead Wire, TachometerLead Wire, Tachometer
-
6345-67169-0 Grommet, CordGrommet, Cord
-
73P0-72679-0 Tachometer Unit Kit
30A4# 35175 〜 25C3 # 50039〜Tachometer Unit Kit
30A4# 35175 〜 25C3 # 50039〜 -
8334-72312-0 Vinyl Motor Cover (L)
UNIQUEVinyl Motor Cover (L)
UNIQUE -
93A1-63039-0 Long Handle 0.8mLong Handle 0.8m
-
93A1-63038-0 Long Handle 1.0mLong Handle 1.0m
-
103F3-72540-0 Spark TesterSpark Tester
-
11346-64111-5 Test PropellerTest Propeller
-
123C7-72301-0 Tohatsu Super Gold (0.4liter)
Engine Oil N.A.F.N.Tohatsu Super Gold (0.4liter)
Engine Oil N.A.F.N. -
123C7-72302-0 Tohatsu Super Gold (1.Oliter)
Engine Oil N.A.F.N.Tohatsu Super Gold (1.Oliter)
Engine Oil N.A.F.N. -
123C7-72304-0 Tohatsu Super Gold (4.0liter)
Engine Oil N.A.F.N.Tohatsu Super Gold (4.0liter)
Engine Oil N.A.F.N. -
123C7-72303-0 Tohatsu Super Gold (20.0liter)
Engine Oil N.A.F.N.Tohatsu Super Gold (20.0liter)
Engine Oil N.A.F.N. -
13332-72306-0 Gear Oil (500mL)
20 tubes/case N.A.F.N.Gear Oil (500mL)
20 tubes/case N.A.F.N. -
14332-72309-0 Grease (250g)
24 tubes/case N.A.F.N.Grease (250g)
24 tubes/case N.A.F.N. -
153B7-72326-0 Touch-up Paint (Silver Gray)
N.A.F.N.Touch-up Paint (Silver Gray)
N.A.F.N. -
16332-72402-0 StandStand
-
17332-72401-0 CartCart
