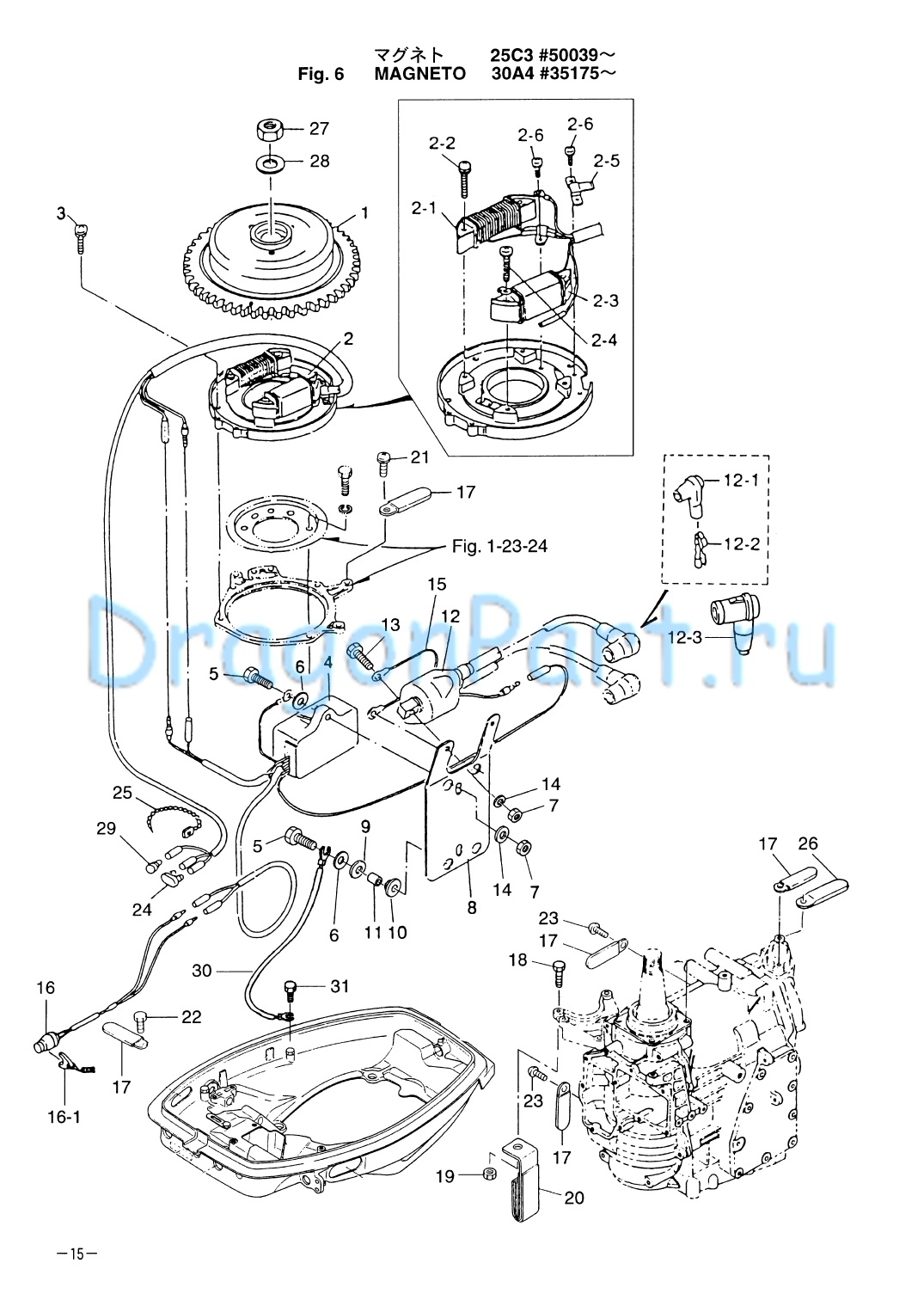

MAGNETO 30A4 #35175~ для Tohatsu M25C3 - 2005 года выпуска`
-
№АртикулНазвание
-
13P0-06091-0 Flywheel Cup
FP5531Flywheel Cup
FP5531 -
23P0-06002-0 Coil Plate AssyCoil Plate Assy
-
2-13P0-06023-0 * Alternator* Alternator
-
2-2921521-6528 * Screw* Screw
-
2-33G3-06021-1 * Exciter Coil* Exciter Coil
-
2-4921521-6522 * Screw* Screw
-
2-5350-06025-0 * Holder, Magneto Cord* Holder, Magneto Cord
-
2-6921521-6406 * Screw* Screw
-
3921521-6510 ScrewScrew
-
43P0-06060-0 C.D. Unit
CU 2561C.D. Unit
CU 2561 -
5910103-6625 BoltBolt
-
63R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
7930103-0600 Nut
or 930113-0600Nut
or 930113-0600 -
83A0-06322-1 Plate,日ectricPlate,日ectric
-
93B7-06305-0 Mount Rubber, 9~16-4.3Mount Rubber, 9~16-4.3
-
103F3-06920-0 Mount Rubber, 8.5-12-2Mount Rubber, 8.5-12-2
-
113A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
123A0-06040-1 Ignition Coil (with Resistance Cap)Ignition Coil (with Resistance Cap)
-
12-13M2-06291-0 * Plug Cap* Plug Cap
-
12-23M2-06926-0 * Terminal, Plug Cap* Terminal, Plug Cap
-
12-33C7-06921-0 * Plug Cap (with Resistance)* Plug Cap (with Resistance)
-
13910103-5620 Bolt
or 910113-5620Bolt
or 910113-5620 -
14941303-0600 Spring WasherSpring Washer
-
153B7-76142-0 Ground CableGround Cable
-
16398-06830-0 Lanyard Stop SwitchLanyard Stop Switch
-
16-1353-06821-0 * Lock, Lanyard Stop Switch* Lock, Lanyard Stop Switch
-
17309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
18910114-0825 BoltBolt
-
19930103-0800 Nut
or 930113-0800Nut
or 930113-0800 -
20345-06917-1 Clamp, 9-20UClamp, 9-20U
-
21922503-6510 ScrewScrew
-
22910121-0612 BoltBolt
-
23921521-0610 ScrewScrew
-
24353-76037-0 Plug, Cable TerminalPlug, Cable Terminal
-
25336-76091-0 Band, Lead WireBand, Lead Wire
-
26398-06972-0 Clamp, 6.5-67PClamp, 6.5-67P
-
27334-00132-0 Nut, Magneto (16P-1.5L)Nut, Magneto (16P-1.5L)
-
28334-00133-0 Washer, 17-30-1.6Washer, 17-30-1.6
-
293A3-76037-0 Plug B, Cable TerminalPlug B, Cable Terminal
-
303C7-76142-0 Ground Cable
for MF typeGround Cable
for MF type -
31910103-0612 Bolt
for MF typeBolt
for MF type
