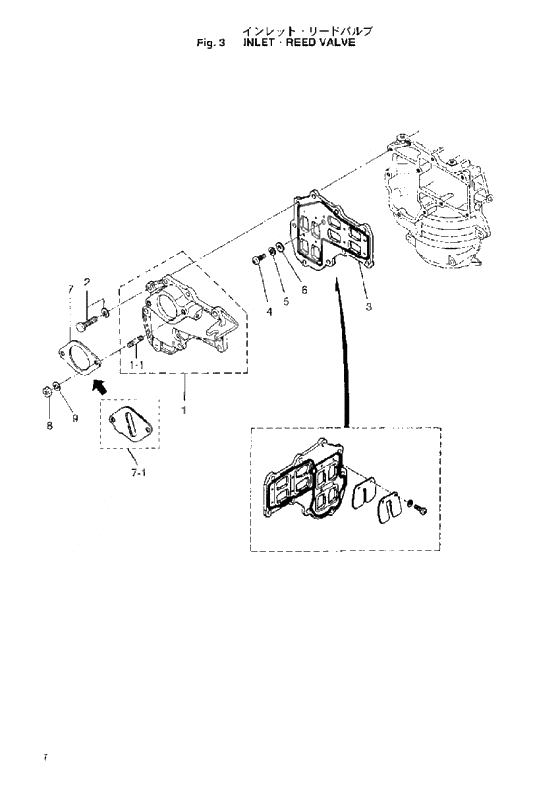

Inlet - reed valve для Tohatsu M25C3 - 2005 года выпуска`
-
№АртикулНазвание
-
1346B02010-0 Inlet Manifold
30A4 # 35175- 25C3 # 50039-Inlet Manifold
30A4 # 35175- 25C3 # 50039- -
1-1915321-0618 Stud BoltStud Bolt
-
2910121-6625 BoltBolt
-
3346-02100-2 Reed Valve Ass'yReed Valve Ass'y
-
4921521-0616 Stud BoltStud Bolt
-
5941322-0600 Spring WasherSpring Washer
-
6940121-0600 WasherWasher
-
7-13P1-03536-0 Ограничитель
25C3 # 50039-Ограничитель
25C3 # 50039- -
8930103-0600 Nut
or 910113-0600Nut
or 910113-0600 -
9941303-0600 New partNew part
