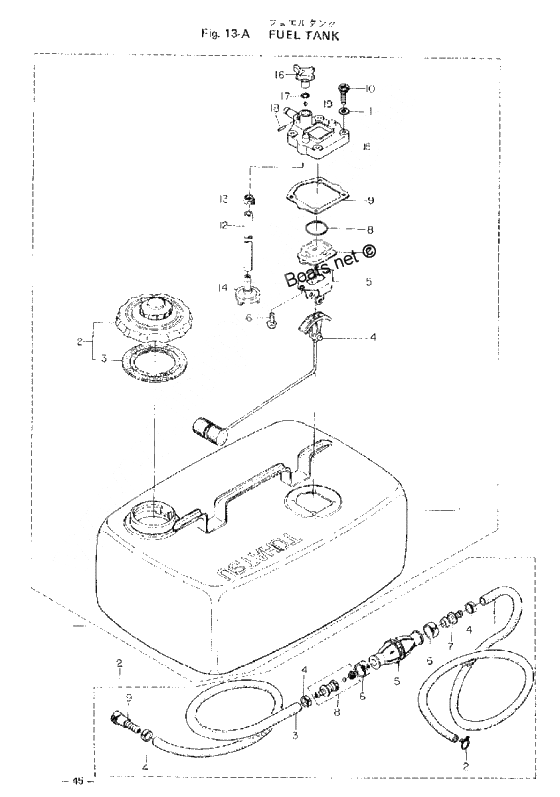

Fuel tank (integral) для Tohatsu M18C2 - 2002 года выпуска`
-
№АртикулНазвание
-
1345-70140-1 Fuel tank assembly (24k)Fuel tank assembly (24k)
-
1-1345-70116-0 Fuel tank completeFuel tank complete
-
1-10922-23052-0 ScrewScrew
-
1-11334-70128-0 Gasket 5.1-12-0.8Gasket 5.1-12-0.8
-
1-13345-70114-0 ClipClip
-
1-14345-70113-0 Strainer, fuel tankStrainer, fuel tank
-
1-15345-70127-1 Housing fuel gaugeHousing fuel gauge
-
1-16345-70133-0 Fuel CockFuel Cock
-
1-17334-60002-0 O-ring, fuel cockO-ring, fuel cock
-
1-18951-43022-0 Spring PinSpring Pin
-
1-19332-70214-0 Nylon ball (1/4)"Nylon ball (1/4)"
-
1-2334-70020-0 Fuel tank cap ass'yFuel tank cap ass'y
-
1-3334-70021-0 Gasket fuel tank capGasket fuel tank cap
-
1-4334-70120-0 Датчик топливаДатчик топлива
-
1-5334-70121-0 Bracket fuel gaugeBracket fuel gauge
-
1-7334-70122-1 Cap fuel gaugeCap fuel gauge
-
1-8334-70123-1 O-RingO-Ring
-
1-9334-70125-0 GasketGasket
-
2345-70200-0 Primer bulb assyPrimer bulb assy
-
2-2332-70204-0 ClipClip
-
2-4332-70201-0 ClampClamp
-
2-5332-70211-0 Primer BulbPrimer Bulb
-
2-6332-70217-0 Clamp, primer bulbClamp, primer bulb
-
2-7345-70212-0 Connector a primer bulbConnector a primer bulb
-
2-8345-70213-0 Connector b primer bulbConnector b primer bulb
-
2-9345-70250-0 Fuel connector aFuel connector a
