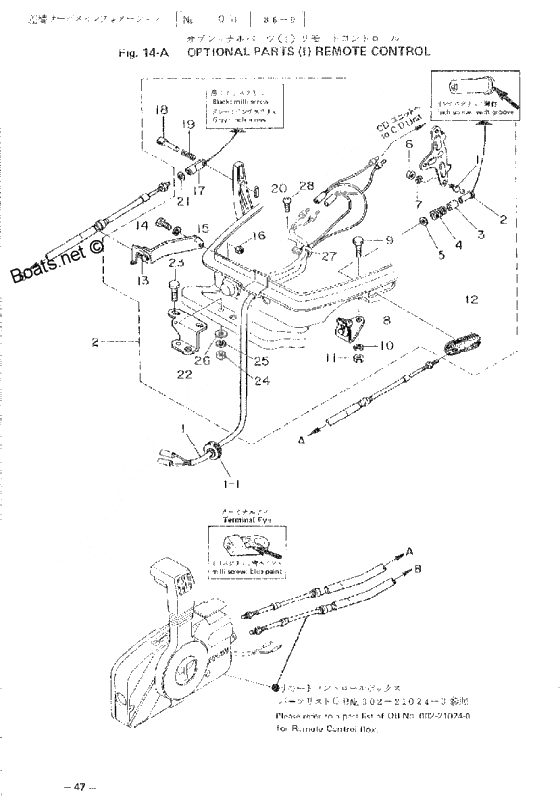

Remote control для Tohatsu M18C2 - 2002 года выпуска`
![](/wa-data/public/shop/sheme/tohatsu/02635e3ac6cd7c2ef92157f54bdd4950.png)
-
№АртикулНазвание
-
1361-83843-0 R.c. stop cord 3.2m
For 2 -3m R.C. CableR.c. stop cord 3.2m
For 2 -3m R.C. Cable -
1361-83853-0 R.c. stop cord 3.9m
For 3.5-4.5m R.C. CableR.c. stop cord 3.9m
For 3.5-4.5m R.C. Cable -
1361-83858-0 R.c. Stop Cord 5.9m
For 5.0m- R.C. CableR.c. Stop Cord 5.9m
For 5.0m- R.C. Cable -
1-1345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
2398-83880-0 S.r.c. fitting parts ass'y
for inch screwS.r.c. fitting parts ass'y
for inch screw -
2398-83880-1 S.r.c. fitting parts ass'y
for inch screwS.r.c. fitting parts ass'y
for inch screw -
2-1345-83721-0 Шаровое соединение
for inch screwШаровое соединение
for inch screw -
2-10941-32050-0 Spring WasherSpring Washer
-
2-11930103-0500 NutNut
-
2-12346-83732-0 Grommet throttle cableGrommet throttle cable
-
2-13350-83870-0 Clutch cable clip ass'yClutch cable clip ass'y
-
2-14910103-0616 BoltBolt
-
2-17332-83715-0 Sleeve B Guide
for milli screwSleeve B Guide
for milli screw -
2-173A1-83715-0 Sleeve B Guide
for inch screwSleeve B Guide
for inch screw -
2-18332-83728-0 Lock PinLock Pin
-
2-19332-83729-0 Spring WasherSpring Washer
-
2-2332-83722-0 Ball holder
for inch screwBall holder
for inch screw -
2-23A1-83722-0 Ball holderBall holder
-
2-22346-84830-1 Steering Hook PlateSteering Hook Plate
-
2-23910114-0830 BoltBolt
-
2-24930103-0800 NutNut
-
2-25941303-0800 Spring WasherSpring Washer
-
2-26940-13080-0 WasherWasher
-
2-27336-06973-0 Clamp Lead WireClamp Lead Wire
-
2-28910103-0612 New partNew part
-
2-3332-83723-0 Cap ball jointCap ball joint
-
2-4332-83724-0 Spring ball jointSpring ball joint
-
2-5332-83725-0 WasherWasher
-
2-7941303-0600 New partNew part
-
2-8350-83820-0 Cable clip ass'yCable clip ass'y
-
2-9910-13051-8 BoltBolt
