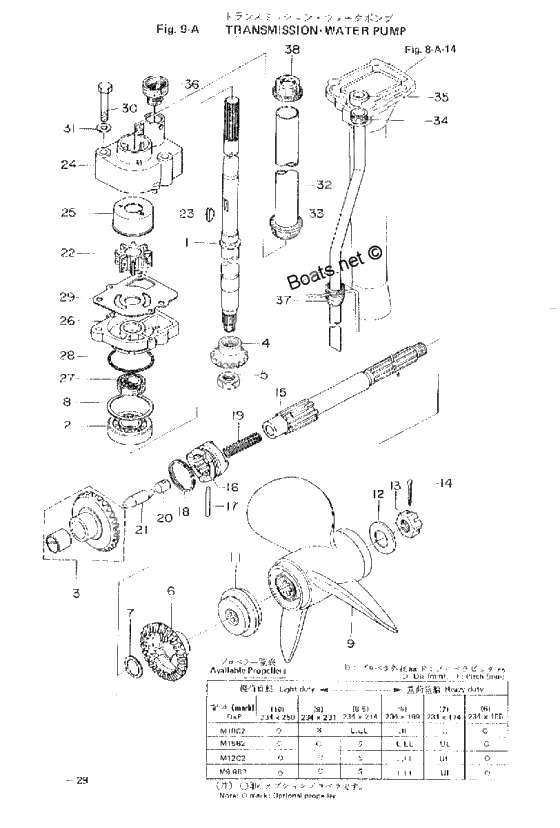

Transmission water pump для Tohatsu M18C2 - 2002 года выпуска`
-
№АртикулНазвание
-
1350-64301-0 Вал торсионный S""Вал торсионный S""
-
1350-64302-0 Drive shaft lDrive shaft l
-
1350-64303-0 Drive Shaft ULDrive Shaft UL
-
1350-64304-0 Drive shaft llDrive shaft ll
-
29601-0-6302 Ball BearingBall Bearing
-
3350-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
4350-64020-0 Bevel Gear BBevel Gear B
-
5346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
6362-64030-0 Bevel Gear CBevel Gear C
-
7350-64032-0 Washer
17.1-22-1.5mmWasher
17.1-22-1.5mm -
8346-64023-0 Shim
t=0.1, 0.15, 0.3 0.5Shim
t=0.1, 0.15, 0.3 0.5 -
9362-64102-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
9362-64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
-
362B64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
-
9362-64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
-
362B64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
-
9362-64107-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
11362-64231-0 Thrust HolderThrust Holder
-
12346-64124-5 Washer
12.5-32-2.5mmWasher
12.5-32-2.5mm -
13346-64121-5 ナット、プロペラナット、プロペラ
-
14951-53252-2 Split PinSplit Pin
-
15362-64211-0 Propeller ShaftPropeller Shaft
-
16362-64215-0 ClutchClutch
-
17350-64218-0 Clutch Pin
5-30mmClutch Pin
5-30mm -
18350-64219-0 Snap ClutchSnap Clutch
-
19332-64221-0 New partNew part
-
20350-64222-0 New partNew part
-
21350-64223-1 Push Rod ClutchPush Rod Clutch
-
22334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
23350-65022-0 New partNew part
-
24350-65016-1 New partNew part
-
25350-65011-1 New partNew part
-
26350-65017-0 Water pump case lowerWater pump case lower
-
27332-60223-0 Oil Seal
13.8-26-9.6mmOil Seal
13.8-26-9.6mm -
28336-62415-0 O-Ring
03.05.1936 0:00:00O-Ring
03.05.1936 0:00:00 -
29350-65025-0 New partNew part
-
31940-13060-0 WasherWasher
-
32350-64322-0 Guard pipe drive shaftGuard pipe drive shaft
-
33350-65100-0 Water pipe sWater pipe s
-
33350-65110-0 Water Pipe LWater Pipe L
-
33350-65120-0 Water Pipe ULWater Pipe UL
-
33350-65130-0 Water pipe llWater pipe ll
-
34350-65206-0 Seal rubber upper water pipeSeal rubber upper water pipe
-
35350-65205-0 Stopper water pipeStopper water pipe
-
36350-65014-0 New partNew part
-
37350-65204-0 Guide rubber water pipeGuide rubber water pipe
-
38350-64326-0 Grommet upper drive shaftGrommet upper drive shaft
