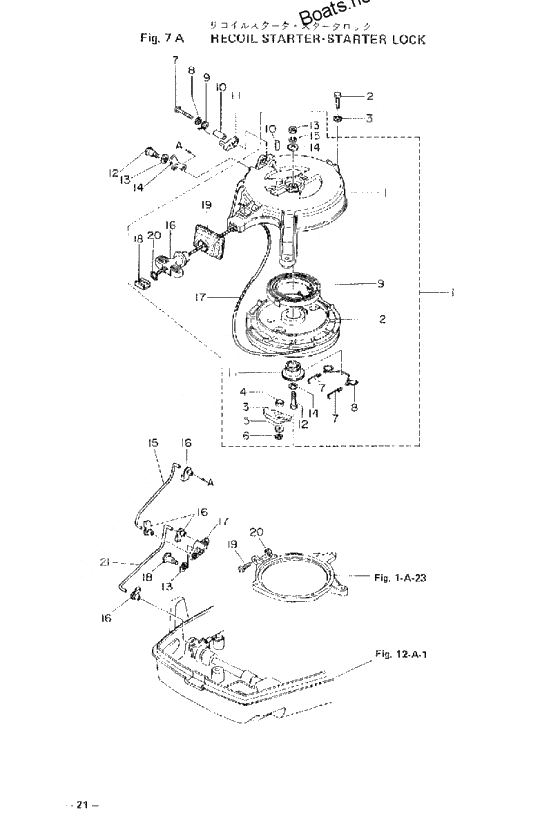

Recoil starter starter locks для Tohatsu M18C2 - 2002 года выпуска`
-
№АртикулНазвание
-
1350-05000-0 Recoil starter ass'yRecoil starter ass'y
-
1-1350-05105-0 Stater caseStater case
-
1-11350-05132-0 Вал стартераВал стартера
-
1-12910-13063-5 BoltBolt
-
1-16338-05019-0 Starter HandleStarter Handle
-
1-17350-05013-0 Starter Rope
5-1600mmStarter Rope
5-1600mm -
1-18338-05131-0 Rope anchorRope anchor
-
1-19346-05116-0 Seal plate starterSeal plate starter
-
1-2350-05104-0 ReelReel
-
1-20350-05136-0 O-Ring
2.5-4.5O-Ring
2.5-4.5 -
1-3345-05003-0 RatchetRatchet
-
1-4345-05135-0 Bushing ratchetBushing ratchet
-
1-5346-67115-0 Washer
6.5-21-1mmWasher
6.5-21-1mm -
1-6945-33050-0 E-RingE-Ring
-
1-7350-05123-0 Ratchet guide aRatchet guide a
-
1-9345-05004-0 Spring WasherSpring Washer
-
3940-13060-0 WasherWasher
-
7A18350-05124-0 Ratchet guide bRatchet guide b
-
8940-13040-0 Washer, consentWasher, consent
-
9338-05216-0 Spring starter lock shaftSpring starter lock shaft
-
10338-05255-0 Coller starter lock shaftColler starter lock shaft
-
11338-05252-0 Lock starterLock starter
-
12338-05254-0 Cam shaftCam shaft
-
13941403-0800 WasherWasher
-
14350-05253-0 Cam, starter lockCam, starter lock
-
15350-05217-0 Lock link starterLock link starter
-
16345-05223-0 D3.5 rod snapD3.5 rod snap
-
17350-05211-0 Throttle stopperThrottle stopper
-
18350-05227-0 Shaft, throttle stopperShaft, throttle stopper
-
21350-05222-0 Stopper link throttleStopper link throttle
