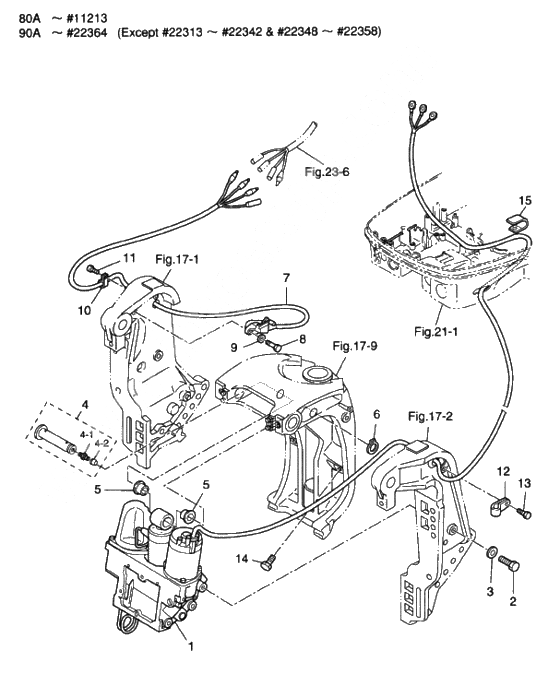

Power trim & tilt assembly для Tohatsu M90A - 1996 года выпуска`
-
№АртикулНазвание
-
13B7S77150-3 Power trim & tilt ass'yPower trim & tilt ass'y
-
2910103-1045 New partNew part
-
3940103-1000 WasherWasher
-
43B7-77072-1 Cylinder pin set upper - no longer availableCylinder pin set upper - no longer available
-
3B7-77072-2 Cylinder pin set upper - no longer availableCylinder pin set upper - no longer available
-
4-1344-67177-0 МасленкаМасленка
-
4-2344-67178-0 Cap grease nippleCap grease nipple
-
53B7-77075-0 BushingBushing
-
6945103-1800 C-RingC-Ring
-
73F3-72574-0 Trim meter assy. (2-wire)
FOR P TYPETrim meter assy. (2-wire)
FOR P TYPE -
3B7-72574-0 Trim meter assy. (2-wire)Trim meter assy. (2-wire)
-
8910103-0620 Bolt
FOR P TYPEBolt
FOR P TYPE -
93C8-66308-0 New part
FOR P TYPENew part
FOR P TYPE -
10336-06973-0 Clamp Lead Wire
FOR P TYPEClamp Lead Wire
FOR P TYPE -
11910103-0612 New part
FOR P TYPENew part
FOR P TYPE -
12345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
13910103-0612 New partNew part
-
143B7-77085-1 Bolt 12-20Bolt 12-20
-
15345-06971-0 Clamp 9-12uClamp 9-12u
