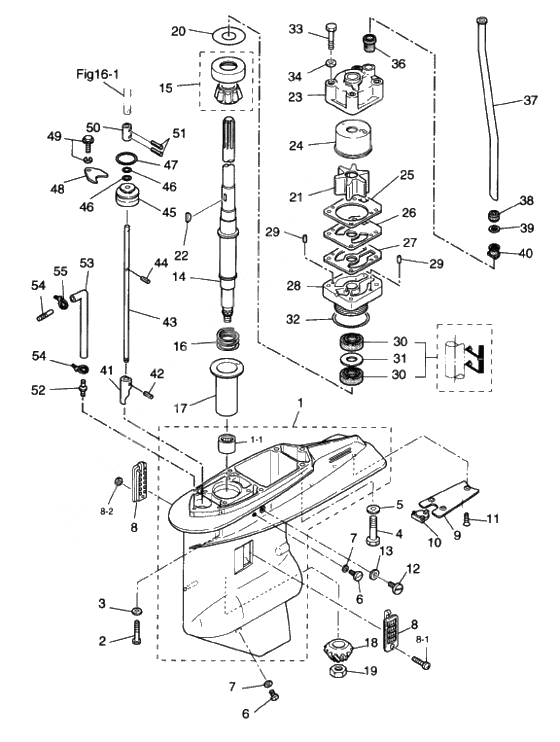

Gear case (drive shaft) для Tohatsu M90A - 1996 года выпуска`
-
№АртикулНазвание
-
13B7S60000-3 Gear case ass'y
FOR R&L ROTATIONGear case ass'y
FOR R&L ROTATION -
1-13B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
2916189-0835 Bolt 8-35Bolt 8-35
-
3940203-0800 WasherWasher
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
5940203-1000 WasherWasher
-
6332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83C7-60235-1 Water Strainer SetWater Strainer Set
-
8-1921503-0445 Stud BoltStud Bolt
-
8-2930403-0400 Nylon NutNylon Nut
-
93B7-60012-0 Plate, Gear CasePlate, Gear Case
-
103B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
11921603-0614 Stud BoltStud Bolt
-
123B7-60015-0 Water PlugWater Plug
-
3B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143B7-64303-0 Drive Shaft UL
FOR TRANSOM XLDrive Shaft UL
FOR TRANSOM XL -
143B7-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
153B7-60213-0 Taper roller bearing, 32305Taper roller bearing, 32305
-
16353-64327-0 Пружина валаПружина вала
-
173B7-64328-0 Guide, drive shaftGuide, drive shaft
-
183B7-64020-0 New partNew part
-
193B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
20353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
20353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
20353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
213B7-65021-1 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
3B7-65021-2 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
223B7-65022-0 Key, water pump impellerKey, water pump impeller
-
233B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
243B7-65011-0 New partNew part
-
253B7-65018-0 Прокладка насосаПрокладка насоса
-
263B7-65025-0 Guide plate, water pumpGuide plate, water pump
-
273B7-65029-0 Gasket, guide plateGasket, guide plate
-
283B7-65017-1 Pump Case LowerPump Case Lower
-
3B7-65017-2 Pump Case LowerPump Case Lower
-
29334-65012-0 СтопорСтопор
-
303C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
31346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
323B7-65015-0 O-RingO-Ring
-
33916103-0880 BoltBolt
-
9161E3-0880 BoltBolt
-
34940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
363B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
373B7-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
373B7-65120-0 Water Pipe UL
FOR TRANSOM XLWater Pipe UL
FOR TRANSOM XL -
38345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
39345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
40346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
413B7-66011-1 Clutch Cam
90A #18083~Clutch Cam
90A #18083~ -
42951403-3516 New part
90A #18083~New part
90A #18083~ -
433B7-66014-1 Cam Rod UL
FOR TRANSOM XL / 90A #18083~Cam Rod UL
FOR TRANSOM XL / 90A #18083~ -
433B7-66013-1 Cam Rod L
FOR TRANSOM L / 90A #18083~Cam Rod L
FOR TRANSOM L / 90A #18083~ -
44951403-3510 New partNew part
-
453B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
46345-66021-0 O-RingO-Ring
-
473B7-66023-0 O-RingO-Ring
-
48353-66024-0 StopperStopper
-
49910103-6612 BoltBolt
-
50353-66241-1 New part
90A #18083~New part
90A #18083~ -
51951403-3516 New partNew part
-
523C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
539808-4-0920 Rubber pipe (1 ea.=1 meter)
FOR TRANSOM XLRubber pipe (1 ea.=1 meter)
FOR TRANSOM XL -
98AB-4-1000 Rubber pipe (1 ea.=1 meter)Rubber pipe (1 ea.=1 meter)
-
539808-4-0800 Rubber pipe (1 ea.=1 meter)
FOR TRANSOM LRubber pipe (1 ea.=1 meter)
FOR TRANSOM L -
98AB-4-1000 Rubber pipe (1 ea.=1 meter)Rubber pipe (1 ea.=1 meter)
-
543C7-60018-0 ЗолотникЗолотник
-
55353-84398-0 Band Lead WireBand Lead Wire
