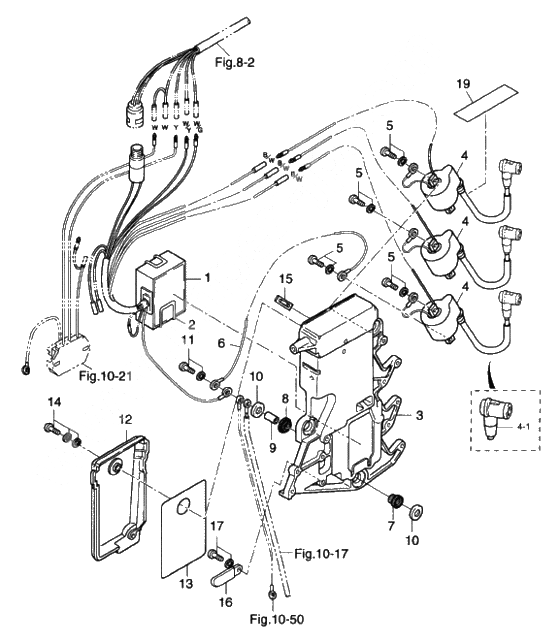

Electric parts (c.d. unit) для Tohatsu M90A - 1996 года выпуска
-
№АртикулНазвание
-
13B7-06160-1 C.D. Unit
90A #20995~C.D. Unit
90A #20995~ -
23B7-06165-0 Band, c.d. unitBand, c.d. unit
-
43B7-06050-1 Ignition coil w/ resistanceIgnition coil w/ resistance
-
3B7-06048-0 Ignition coil w/ resistanceIgnition coil w/ resistance
-
4-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
5910103-5620 BoltBolt
-
63B7-76142-0 Ground cordGround cord
-
73B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
8346-67113-0 Mount RubberMount Rubber
-
9346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
10346-67115-0 WasherWasher
-
11910103-6630 BoltBolt
-
14910103-0620 BoltBolt
-
15353-76213-0 Fuse(20ah)Fuse(20ah)
-
16353-06972-0 ClampClamp
-
17910103-6612 BoltBolt
