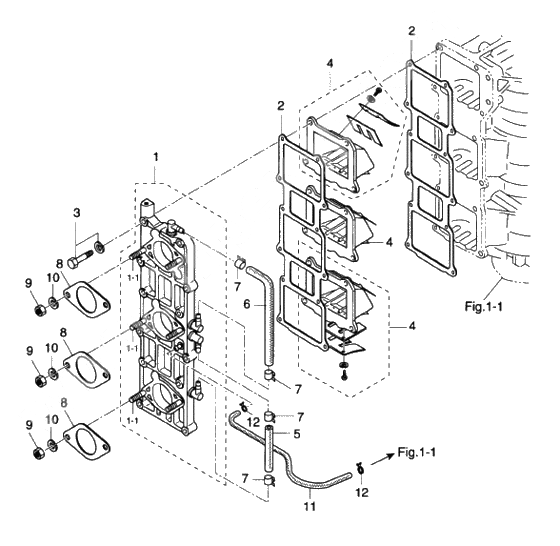

Inlet - reed valve для Tohatsu M90A - 1996 года выпуска`
-
№АртикулНазвание
-
1-1915321-0618 Stud BoltStud Bolt
-
23B7-02104-0 Gasket, inlet manifoldGasket, inlet manifold
-
3910121-6635 BoltBolt
-
43A3-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
59812-7-0080 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
69812-7-0180 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
7345-70114-0 ClipClip
-
8346-02011-0 Gasket, carburettorGasket, carburettor
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
119807-3-0325 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
12338-01133-0 ClipClip
Все узлы модели:
- Accessories
- Assembly - kit
- Bracket (for new ptt)
- Bracket
- Carburetor
- Cylinder - crank case assembly
- Drive shaft housing
- Electric parts (c.d. unit)
- Electric parts (main switch : f type)
- Electric parts (starter motor)
- Fuel line
- Gas assist manual tilt (g type)
- Gear case (drive shaft)
- Gear case (propeller shaft)
- • Inlet - reed valve
- Magneto
- Motor cover
- Oil pump (automixing)
- Optional parts (1)
- Optional parts (2)
- Optional parts (3)
- Piston & crank shaft
- Power trim & tilt (for new ptt)
- Power trim & tilt assembly
- Power trim & tilt
- Separate fuel tank (plastic)
- Shift
- Steering handle (for f type)
- Throttle
