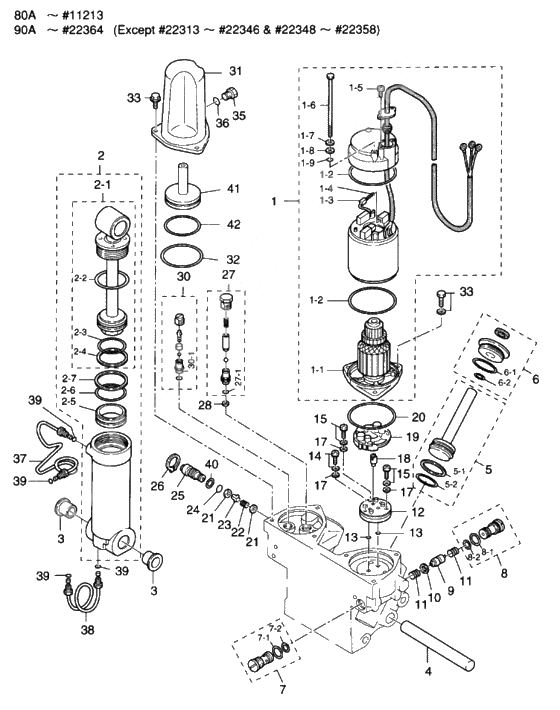

Power trim & tilt для Tohatsu M90A - 1996 года выпуска`
-
№АртикулНазвание
-
13C7S77180-0 Motor Ass'yMotor Ass'y
-
1-13B7S77190-0 Amateur ass'yAmateur ass'y
-
1-2353-77182-1 O-RingO-Ring
-
1-33B7-77183-0 Brush - no longer availableBrush - no longer available
-
353-77183-1 Brush - no longer availableBrush - no longer available
-
1-4353-77184-1 Spring brushSpring brush
-
1-53B7-77189-0 Stud BoltStud Bolt
-
1-63B7-77181-0 Through boltThrough bolt
-
1-7353-77186-0 Washer - no longer availableWasher - no longer available
-
1-8353-77187-0 Шайба пластиковаяШайба пластиковая
-
1-9353-77188-0 O-ring through boltO-ring through bolt
-
2-13C7-77365-0 Piston rod ass'y tiltPiston rod ass'y tilt
-
2-23B7-77383-0 O-RingO-Ring
-
2-33B7-77375-0 O-RingO-Ring
-
2-43B7-77376-0 Back-up RingBack-up Ring
-
2-53B7-77377-1 Free PistonFree Piston
-
2-63B7-77375-0 O-RingO-Ring
-
2-73B7-77376-0 Back-up RingBack-up Ring
-
33B7-77386-0 New partNew part
-
43B7-77387-0 New partNew part
-
53B7-77390-0 Piston sub-ass'y trimPiston sub-ass'y trim
-
5-13B7-77393-0 Back-up RingBack-up Ring
-
5-23B7-77392-0 O-RingO-Ring
-
63B7-77395-0 Rod guide sub-ass'y trimRod guide sub-ass'y trim
-
6-13B7-77375-0 O-RingO-Ring
-
6-23B7-77399-0 O-RingO-Ring
-
73B7-77410-0 Valve seat ass'y aValve seat ass'y a
-
7-13B7-77412-0 O-RingO-Ring
-
7-23B7-77411-0 O-RingO-Ring
-
83B7-77420-0 Valve seat ass'y bValve seat ass'y b
-
8-13B7-77412-0 O-RingO-Ring
-
8-23B7-77411-0 O-RingO-Ring
-
93B7-77401-0 КатушкаКатушка
-
103B7-77403-0 Back-up RingBack-up Ring
-
113B7-77404-0 Spring spoolSpring spool
-
123B7-77430-0 PumpPump
-
133B7-77433-0 O-RingO-Ring
-
143B7-77431-1 BoltBolt
-
153B7-77432-1 BoltBolt
-
173B7-77435-0 WasherWasher
-
18353-77166-0 Coupling PumpCoupling Pump
-
193B7-77434-1 Filter BFilter B
-
203B7-77167-0 O????O????
-
213B7-77173-0 Washer sealWasher seal
-
223B7-77172-0 Spring WasherSpring Washer
-
233B7-77174-0 Collar innerCollar inner
-
243B7-77179-0 O-RingO-Ring
-
253B7-77176-0 Manual ValveManual Valve
-
26945003-2000 C-RingC-Ring
-
273B7-77440-1 Relief valve (up)Relief valve (up)
-
27-13B7-77441-0 O-RingO-Ring
-
283B7-77442-0 FilterFilter
-
303B7-77460-0 Pilot relief valve (dn)Pilot relief valve (dn)
-
30-13B7-77452-0 O-RingO-Ring
-
313B7S77165-1 Reservoir TankReservoir Tank
-
323B7-77167-0 O????O????
-
33910103-6620 BoltBolt
-
353B7-77168-0 CapCap
-
363B7-77169-0 O-RingO-Ring
-
373B7-77330-0 Oil tubeOil tube
-
383B7-77335-0 Oil tube bOil tube b
-
39353-77322-1 O????O????
-
403B7-77177-0 O-RingO-Ring
-
413B7-77221-0 CapCap
-
423B7-77220-0 O-RingO-Ring
