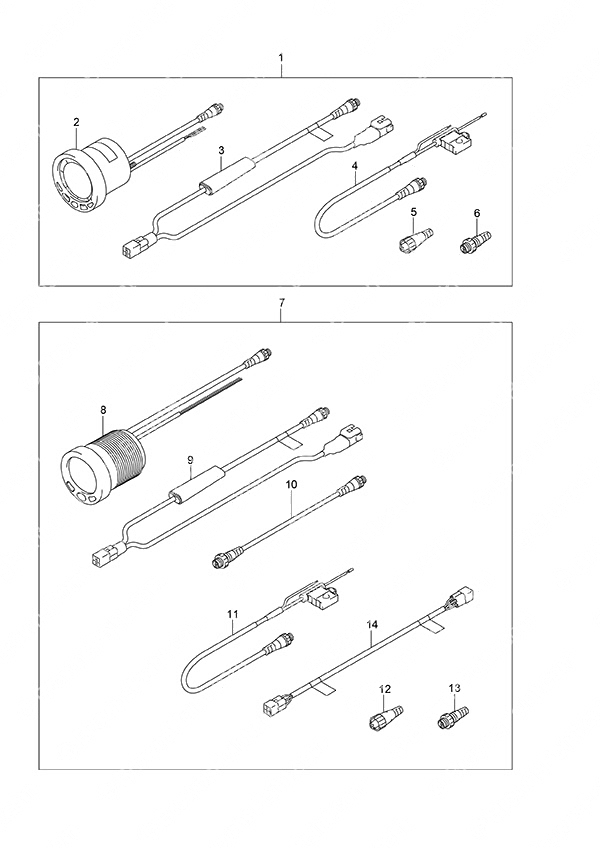

Fig. 88 - Opt: Meter Kit для Suzuki DF 140A - 2014 года выпуска`
-
№АртикулНазвание
-
1990C0-88164-KIT 4 in. Multi-Function Gauge Kit4 in. Multi-Function Gauge Kit
-
2990C0-88165-000 • 4 in. Multi-Function Gauge• 4 in. Multi-Function Gauge
-
3990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
4990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
5990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
6990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
7990C0-88152-KIT 2 in. Multi-Function Gauge Kit2 in. Multi-Function Gauge Kit
-
8990C0-88150-000 • 2 in. Multi-Function Gauge• 2 in. Multi-Function Gauge
-
9990C0-88149-000 • SMIS Engine Interface Cable (NLA)• SMIS Engine Interface Cable (NLA)
-
10990C0-88108-000 • 25' Extension cable• 25' Extension cable
-
11990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
12990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
13990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
14990C0-88136-000 • Cable Adapter SMIS to SDS• Cable Adapter SMIS to SDS
