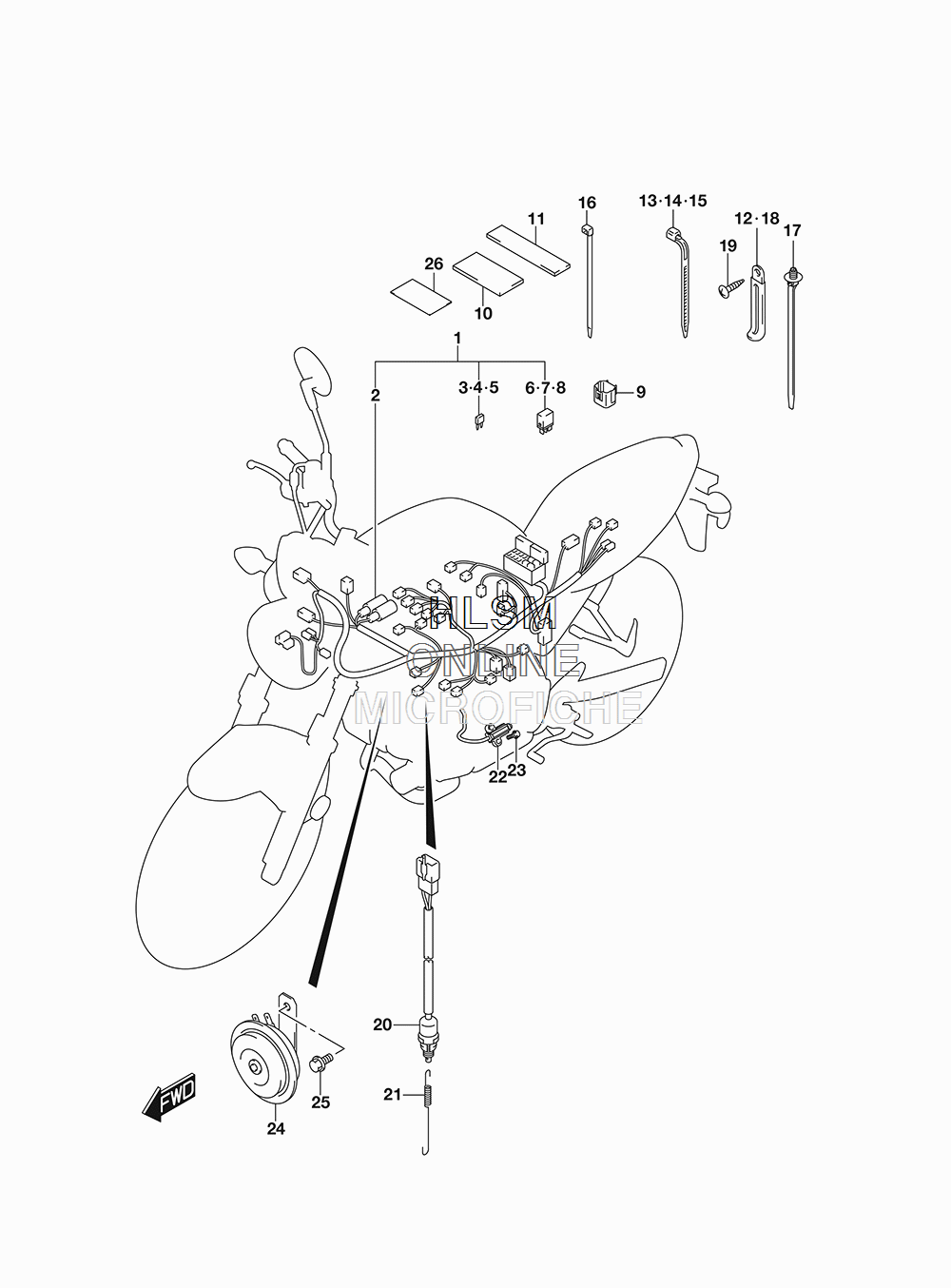

WIRING HARNESS (CALIF.) для Suzuki SV650 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
136610-18KA0 HARNESS, WIRINGHARNESS, WIRING
-
236618-35F00 ...COVER, SPEEDOMETER COUPLER...COVER, SPEEDOMETER COUPLER
-
309481-10504 ...FUSE (10A)...FUSE (10A)
-
409481-15504 ...FUSE (15A)...FUSE (15A)
-
509481-30504 ...FUSE (30A)...FUSE (30A)
-
638860-76F01 ...RELAY ASSY (FOR FUEL PUMP)...RELAY ASSY (FOR FUEL PUMP)
-
738860-76F01 ...RELAY ASSY (FOR FAN MOTOR)...RELAY ASSY (FOR FAN MOTOR)
-
838860-76F01 ...RELAY ASSY (FOR SIDE STAND)...RELAY ASSY (FOR SIDE STAND)
-
936654-06J00 CAP, TSCAP, TS
-
1036920-08D00 PROTECTOR (30X60X3)PROTECTOR (30X60X3)
-
1194474-22D00 PROTECTOR (30X70)PROTECTOR (30X70)
-
1209404-06429 CLAMP (L:45)CLAMP (L:45)
-
1309407-14403 CLAMP (L:125)CLAMP (L:125)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1509407-19401 CLAMP (L:190)CLAMP (L:190)
-
1609407-14407 CLAMP (L:145)CLAMP (L:145)
-
1709407-17403 CLAMP (L:170)CLAMP (L:170)
-
1809404-06433 CLAMP (L:80)CLAMP (L:80)
-
1903541-0412A SCREWSCREW
-
2037740-44H01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2109443-06016 SPRINGSPRING
-
2237840-25D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2301550-0620A BOLTBOLT
-
2438500-18K00 HORN ASSYHORN ASSY
-
2501550-0812A BOLTBOLT
-
2636611-16G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
