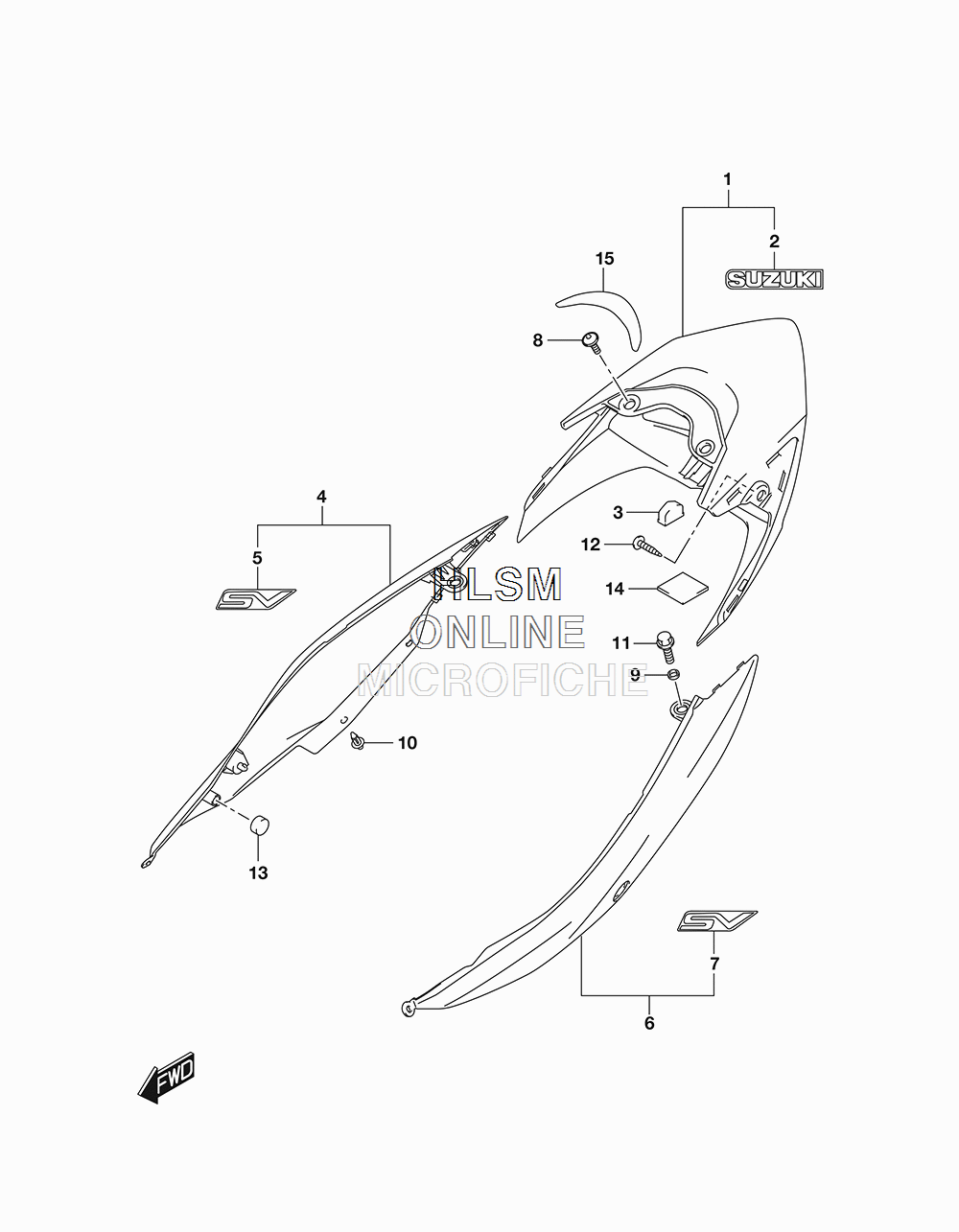

FRAME COVER (CANADA) (BLACK) для Suzuki SV650 ABS - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    47310-18K00-4TX COVER, FRAME REAR CENTER (4TX - BLACK)
    COVER, FRAME REAR CENTER (4TX - BLACK)
  • 2
    68171-28H10-KGL ...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK)
    ...EMBLEM, "SUZUKI" (KGL - BLACK/BLACK)
  • 3
    47315-18K00 CUSHION, FRAME COVER CENTER
    CUSHION, FRAME COVER CENTER
  • 4-1
    47410-18K20-YKV COVER, FRAME REAR (RH) (YKV - MET BLACK)
    COVER, FRAME REAR (RH) (YKV - MET BLACK)
  • 4-2
    47410-18K20-YVB COVER, FRAME REAR (RH) (YVB - SPARKLE BLACK)
    COVER, FRAME REAR (RH) (YVB - SPARKLE BLACK)
  • 5-1
    68111-18K00-KGL ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
    ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
  • 5-2
    68111-18K00-YLF ...EMBLEM, "SV" (YLF - GRAY FOR YVB - SPARKLE BLACK)
    ...EMBLEM, "SV" (YLF - GRAY FOR YVB - SPARKLE BLACK)
  • 6-1
    47510-18K20-YKV COVER, FRAME REAR (LH) (YKV - MET BLACK)
    COVER, FRAME REAR (LH) (YKV - MET BLACK)
  • 6-2
    47510-18K20-YVB COVER, FRAME REAR (LH) (YVB - SPARKLE BLACK)
    COVER, FRAME REAR (LH) (YVB - SPARKLE BLACK)
  • 7-1
    68111-18K00-KGL ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
    ...EMBLEM, "SV" (KGL - BLACK/BLACK FOR YKV - MET BLACK)
  • 7-2
    68111-18K00-YLF ...EMBLEM, "SV" (YLF - GRAY FOR YVB - SPARKLE BLACK)
    ...EMBLEM, "SV" (YLF - GRAY FOR YVB - SPARKLE BLACK)
  • 8
    09139-05074 BOLT (5X13)
    BOLT (5X13)
  • 9
    09180-08052 SPACER (8.5X12X2.5)
    SPACER (8.5X12X2.5)
  • 10
    09409-06314 CLIP
    CLIP
  • 11
    01550-0812A BOLT
    BOLT
  • 12
    03541-0510A SCREW
    SCREW
  • 13
    09329-14002 CUSHION
    CUSHION
  • 14
    33652-20C00 CUSHION (CUT AS REQUIRED)
    CUSHION (CUT AS REQUIRED)
  • 15
    47312-18K00 TAPE, FRAME COVER REAR CENTER
    TAPE, FRAME COVER REAR CENTER
