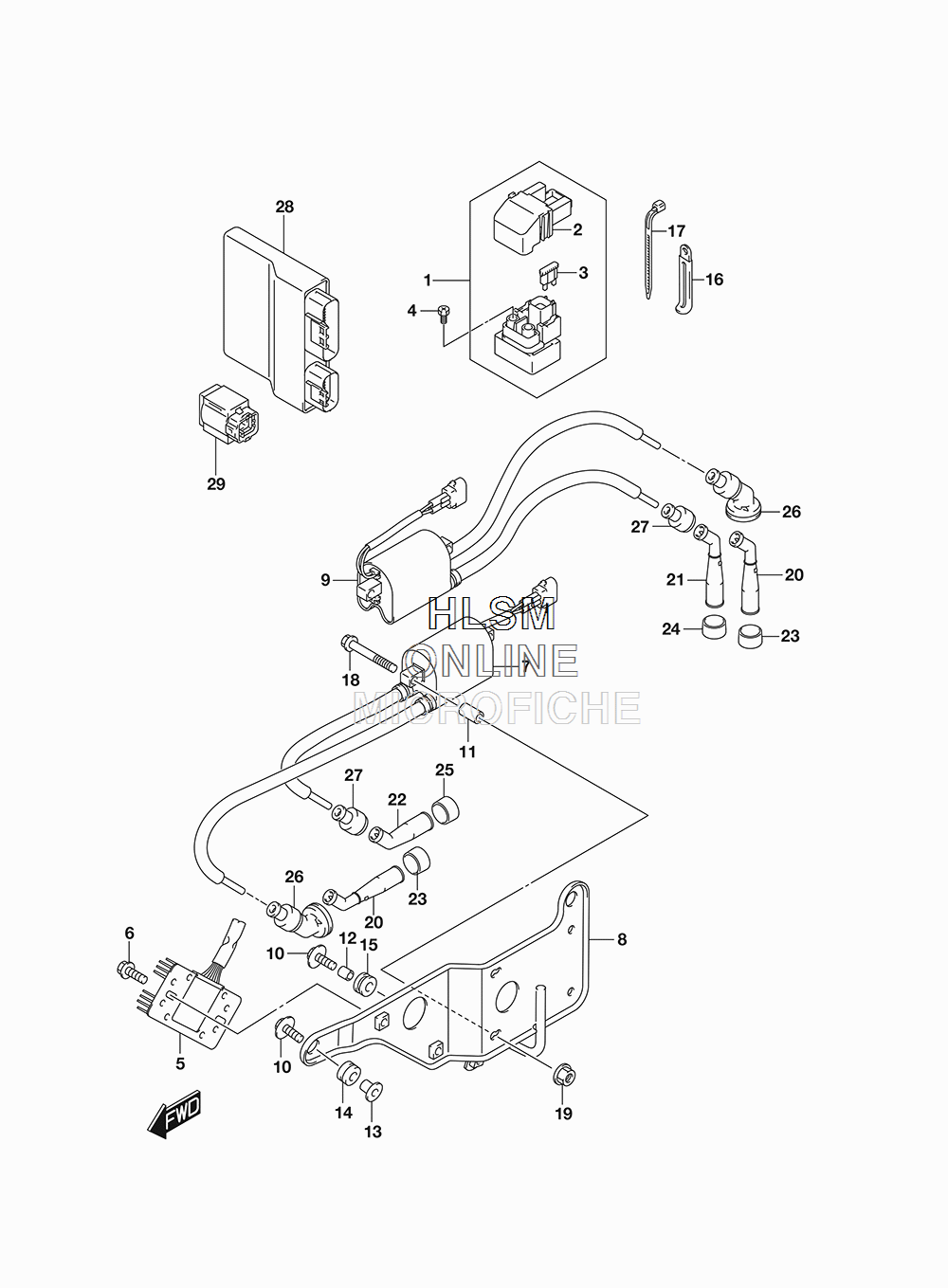

ELECTRICAL - COILS W/ STARTER RELAY - RECTIFIER (CALIF.) для Suzuki SV650 ABS - 2018 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0616A SCREWSCREW
-
733410-44H01 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
833414-44H01 BRACKET, IGNITION COIL REARBRACKET, IGNITION COIL REAR
-
933420-44H01 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
1009116-06182 BOLT (6X20)BOLT (6X20)
-
1109180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1209180-06263 SPACER (6.5X9X9)SPACER (6.5X9X9)
-
1309180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1409320-08501 CUSHIONCUSHION
-
1509320-09016 CUSHIONCUSHION
-
1609404-06433 CLAMP (L:80)CLAMP (L:80)
-
1709407-18402 CLAMP (L:165)CLAMP (L:165)
-
1801547-0640A BOLTBOLT
-
1908316-1006A NUTNUT
-
2033510-17G00 CAP ASSY, SPARK PLUG (CENTER)CAP ASSY, SPARK PLUG (CENTER)
-
2133510-17G00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
2233510-20E00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
2333541-23E10 SEAL, SPARK PLUG (CENTER)SEAL, SPARK PLUG (CENTER)
-
2433541-23E10 SEAL, SPARK PLUG (SIDE)SEAL, SPARK PLUG (SIDE)
-
2533541-47D00 SEAL, SPARK PLUG CAP (SIDE)SEAL, SPARK PLUG CAP (SIDE)
-
2633542-17G01 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2733542-48H01 SEAL, HIGH TENSION CORD (SIDE)SEAL, HIGH TENSION CORD (SIDE)
-
2832920-18K11 CONTROL UNIT, FICONTROL UNIT, FI
-
2933960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
