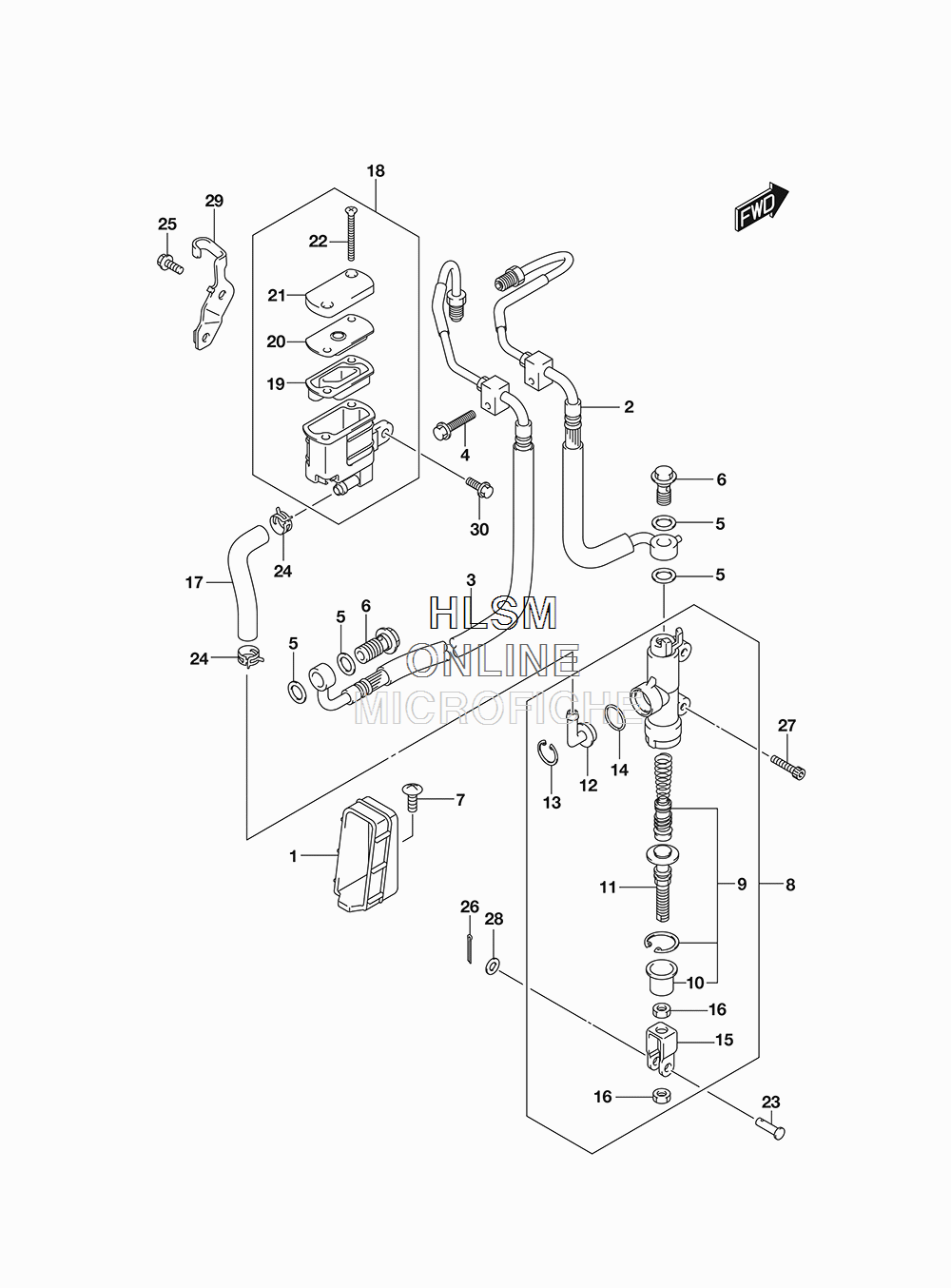

BRAKE - REAR MASTER CYLINDER (CANADA) для Suzuki SV650 ABS - 2018 года выпуска`
-
№АртикулНазвание
-
169243-44H00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
269200-18K00 HOSE ASSY, RR MASTER TO UNITHOSE ASSY, RR MASTER TO UNIT
-
369400-18K00 HOSE ASSY, RR UNIT TO CLPRHOSE ASSY, RR UNIT TO CLPR
-
401547-0630B BOLTBOLT
-
509161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
609360-10062 UNIONUNION
-
702142-0616A SCREWSCREW
-
869600-44H00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
969600-34820 ...PISTON/CUP SET...PISTON/CUP SET
-
1069691-00A00 ......BOOT......BOOT
-
1169670-48B00 ...ROD, PUSH...ROD, PUSH
-
1269672-00B20 ...CONNECTOR...CONNECTOR
-
1369674-00B20 ...CIRCLIP...CIRCLIP
-
1469686-34200 ...O RING...O RING
-
1569692-44H00 ...YOKE...YOKE
-
1669693-05A00 ...NUT...NUT
-
1769731-18K00 HOSE, REAR RESERVOIR TANKHOSE, REAR RESERVOIR TANK
-
1869740-18K00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1969667-01H00 ...DIAPHRAGM...DIAPHRAGM
-
2069668-01H00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
2169669-18K00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
2269689-01H00 ...SCREW...SCREW
-
2309200-06068 PIN (6X18.2)PIN (6X18.2)
-
2409401-12404 CLIPCLIP
-
2501547-0612A BOLTBOLT
-
2604111-2015A PINPIN
-
2707130-0625A BOLTBOLT
-
2808322-0106A WASHERWASHER
-
2969750-18K10 BRACKET, REAR RESERVOIR TANKBRACKET, REAR RESERVOIR TANK
-
3001547-0616A BOLTBOLT
