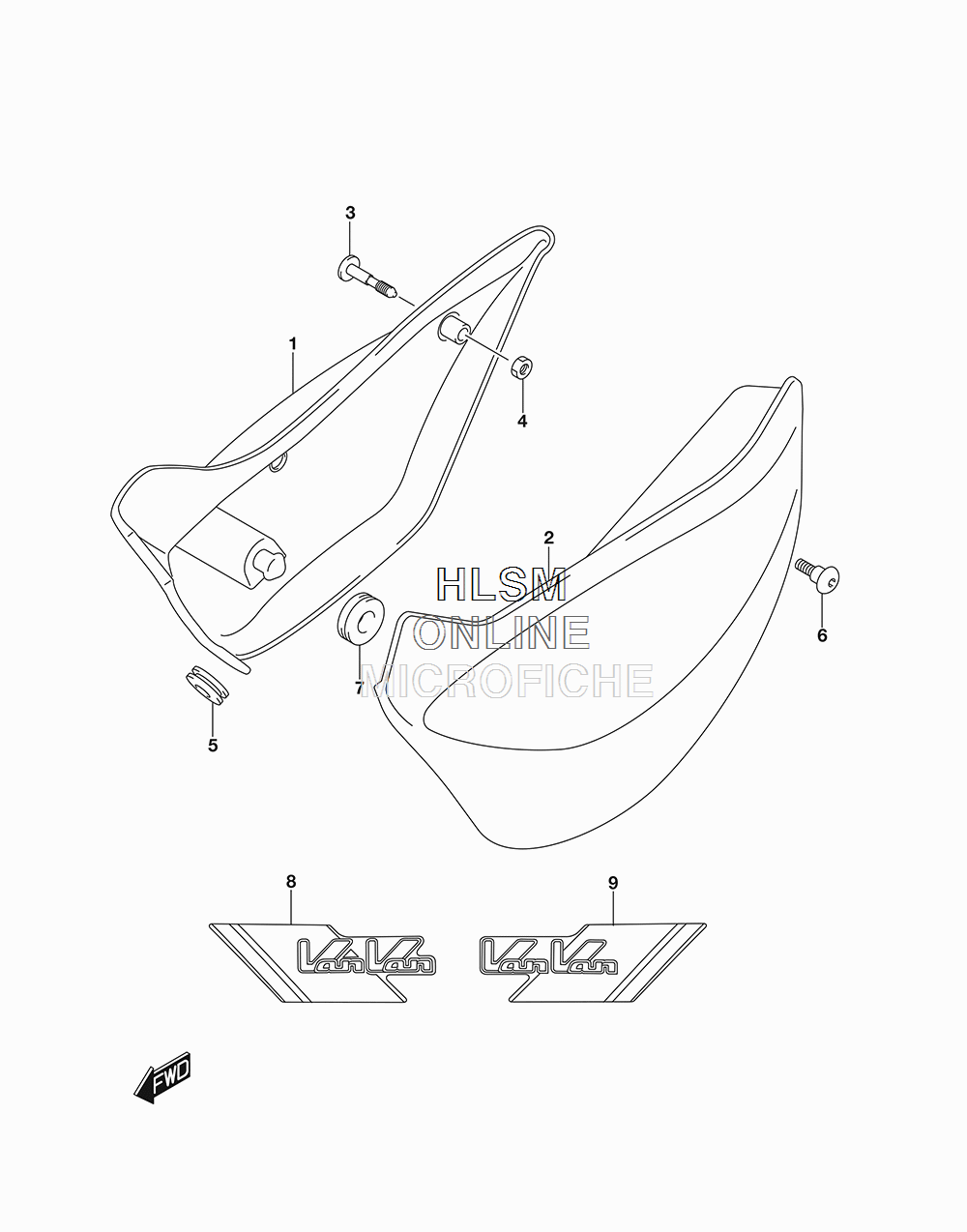

SIDE COVER для Suzuki RV200 VANVAN 200 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47111-13G02-YMF COVER, FRAME (RH) (YMF - YELLOW)
    COVER, FRAME (RH) (YMF - YELLOW)
  • 1-2
    47111-13G02-YVZ COVER, FRAME (RH) (YVZ - RED)
    COVER, FRAME (RH) (YVZ - RED)
  • 1-3
    47111-13G02-019 COVER, FRAME (RH) (019 - BLACK)
    COVER, FRAME (RH) (019 - BLACK)
  • 2-1
    47211-13G02-YMF COVER, FRAME (LH) (YMF - YELLOW)
    COVER, FRAME (LH) (YMF - YELLOW)
  • 2-2
    47211-13G02-YVZ COVER, FRAME (LH) (YVZ - RED)
    COVER, FRAME (LH) (YVZ - RED)
  • 2-3
    47211-13G02-019 COVER, FRAME (LH) (019 - BLACK)
    COVER, FRAME (LH) (019 - BLACK)
  • 3
    09139-06123 SCREW (6X33)
    SCREW (6X33)
  • 4
    08310-0006B NUT
    NUT
  • 5
    09320-08013 CUSHION
    CUSHION
  • 6
    09139-06107 SCREW (6X16)
    SCREW (6X16)
  • 7
    09320-08028 CUSHION
    CUSHION
  • 8-1
    68131-13G50-ANW EMBLEM, FRAME COVER, (RH) (ANW - WHITE/BLACK/YELLOW FOR YMF)
    EMBLEM, FRAME COVER, (RH) (ANW - WHITE/BLACK/YELLOW FOR YMF)
  • 8-2
    68131-13G50-BMQ EMBLEM, FRAME COVER, (RH) (BMQ - BLACK/WHITE/RED FOR YVZ)
    EMBLEM, FRAME COVER, (RH) (BMQ - BLACK/WHITE/RED FOR YVZ)
  • 8-3
    68131-13G50-BMA EMBLEM, FRAME COVER, (RH) (BMA - RED/GRAY/BLACK FOR 019)
    EMBLEM, FRAME COVER, (RH) (BMA - RED/GRAY/BLACK FOR 019)
  • 9-1
    68141-13G50-ANW EMBLEM, FRAME COVER, (LH) (ANW - WHITE/BLACK/YELLOW FOR YMF)
    EMBLEM, FRAME COVER, (LH) (ANW - WHITE/BLACK/YELLOW FOR YMF)
  • 9-2
    68141-13G50-BMQ EMBLEM, FRAME COVER, (LH) (BMQ - BLACK/WHITE/RED FOR YVZ)
    EMBLEM, FRAME COVER, (LH) (BMQ - BLACK/WHITE/RED FOR YVZ)
  • 9-3
    68141-13G50-BMA EMBLEM, FRAME COVER, (LH) (BMA - RED/GRAY/BLACK FOR 019)
    EMBLEM, FRAME COVER, (LH) (BMA - RED/GRAY/BLACK FOR 019)
